Photo of Symbol MC7094-PUCDJQHA7WR Symbol logo

Symbol MC 70

WLAN, 802.11a/b/g, GSM/EDGE/eGPRS, 1D Laser - SE950, Generic GSM Carrier, Color QVGA Display, 64MB/128MB, QWERTY Keypad, Windows Mobile 5.0.0 Phone Edition, Bluetooth, 1X Battery

Call for Details
Availability: Check Availability

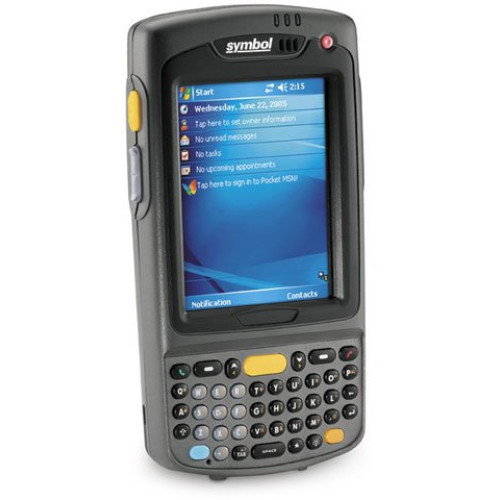

Symbol MC 70 Hand Held Computer

The Symbol MC 70 is a rugged, compact, lightweight TNT-based portable data terminal with standard wireless connectivity using WAN/LAN/PAN and Bluetooth. Key features include a color 1/4 VGA display, 1D Laser Scanner/2D Imager, Converged voice and data (Voice over LAN/WAN), User-accessible memory (SDIO) and Windows Mobile 5.0 OS. The MC 70 is built to an industrial specification in terms of drop, temperature and sealing, giving industrial users and others in harsh operating environments the ultimate in durable connectivity.

Full specifications (PDF)

Manufacturer part number: MC7094-PUCDJQHA7WR

Technical Information

  • Operating System: Windows Mobile 5.0 Premium Phone Edition
  • Processor: Intel PXA270 XScale 624MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • AES
    • LEAP
    • PEAP (MS-CHAP v2)
    • PEAP-TLS
    • TKIP
    • TLS
    • TTLS (CHAP)
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS-MD5
    • TTLS-PAP
    • WEP 40 bit
    • WEP 128 bit
    • WPA2
  • Scanner Type: Laser
  • Symbologies Supported:
    • Codabar (NW7)
    • Code 39
    • Code 93
    • Code 128
    • Discrete 2 of 5
    • Interleaved 2 of 5
    • UCC/EAN 128
    • UPC/EAN/JAN

General Information

  • Manufacturer:
  • Product Line: Mobile Computer (MC)
  • Product Name: MC70 Mobile Computer

Physical Characteristics

  • Display: 3.5" Color QVGA - Touch Screen TFT LCD
  • Display Resolution: 240 x 320
  • User Accessible Expansion Slot: SDIO
  • Keyboard: 44 Key QWERTY Integrated
  • Battery Capacity: 1900 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 1.5" (38mm) x 3" (76mm) x 6" (152mm)
  • Weight: 12 oz

Agency Approvals

  • Agency Approvals:
    • RoHS Compliance
    • UL / cUL 60950-1
    • IEC / EN60950-1
    • Canada: RSS-102
    • EU: EN 50360
    • USA:
    • FCC Part 2
    • FCC OET Bulletin 65 Supplement C
    • Australia:
    • AS/NZ 2772.1
    • ARPANSA
    • EU: EN301 511 Global: 3GPP TS 51.010 GCF Approved Module USA: FCC Part 22 FCC Part 24 Canada: RSS-132 RSS-133 Australia: AS/ACIF S 018 AS TS 001 WLAN and Bluetooth: Canada: RSS-210 Australia: AS/NZS 4268 USA: FCC Part 15.247 FCC Part 15.407 EU: EN 300 328-1 EN 301 893 Japan: ARIB STD-T33 ARIB STD-T66 ARIB STD-T71 Laser Safety: IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1
    • EU: EN301 511 Global: 3GPP TS 51.010 GCF Approved Module USA: FCC Part 22 FCC Part 24 Canada: RSS-132 RSS-133 Australia: AS/ACIF S 018 AS TS 001WLAN and Bluetooth:Canada: RSS-210Australia: AS/NZS 4268USA:FCC Part 15.247FCC Part 15.407EU:EN 300 328-1EN 301 893Japan:ARIB STD-T33ARIB STD-T66ARIB STD-T71Laser Safety:IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1

Environmental Conditions

  • Environmental Sealing: IP64
  • Temperature:
    • -10°C (14°F) to 68°C (154°F) Operating
    • -40°C (-40°F) to 60°C (140°F) Storage
  • Humidity: 95% Non-condensing
  • Electrostatic Discharge (ESD):
    • +/-15kVdc Air Discharge
    • +/-8kVdc Direct Discharge
    • +/-8kVdc Indirect Discharge
  • Drop Spec:
    • 4' To Concrete
    • 5' To Concrete 23°C
  • Tumble: 1000 1.6 ft./.5 m tumbles (2000 drops)

Wireless Data Communications

  • Network Connectivity:
    • WLAN 802.11 b/g/a
    • WPAN Bluetooth
    • WWAN GSM/eGPRS (Quad Band 850/900/1800/1900 Mhz)
  • Maximum RF Data Rate Supported: 54 Mbps
  • Output Power: 100mW
  • Antenna Connectors: External
  • Frequency Band/Bandwidth: 2.4GHz to 5GHz

Other

  • Additional Information:
    • Communication Option: Audio Region: Worldwide Antenna Connectors: Internal for LAN External for WAN Voice Communication: Integrated Voice-over-IP Ready (P2P, PBX, PTT) Wi-Fi Certified
    • Communication Option: AudioRegion: WorldwideAntenna Connectors:Internal for LANExternal for WANVoice Communication: Integrated Voice-over-IP Ready (P2P, PBX, PTT) Wi-Fi Certified
  • Package Contents:
    • MC70 Mobile Computer Lithium-Ion Battery Battery Cover Hand Strap Tethered Stylus Protective Overlay Regulatory Guide Quick Start Guide
    • MC70 Mobile ComputerLithium-Ion BatteryBattery CoverHand StrapTethered StylusProtective OverlayRegulatory GuideQuick Start Guide

Memory

  • RAM Memory: 64MB
  • Flash Memory: 128MB

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
