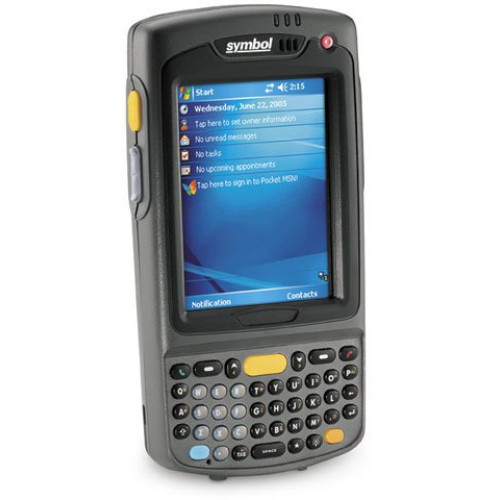

Photo of Symbol MC7094-PUCDJRHA7WR Symbol logo

Symbol MC 70

Windows Mobile 5.0 OS with 64MB RAM/128MB ROM, WAN/LAN/PAN, eGPRS, 802.11a/b/g and Bluetooth, 15 key numeric keypad, 1D Laser Scanner, standard battery. Cradles, power supply and communication cables not included. See accessories.

Hand Held Computer
Call for Details
Availability: Check Availability


Symbol MC 70 Hand Held Computer

The flagship MC70 Enterprise Digital Assistant (EDA) is a rugged handheld mobile device that incorporates a mobile phone, PDA, computer, scanner and imager in a single unit designed for the rigors of all-day, everyday usage. This compact, lightweight device combines multi-mode wireless networking, voice and data communications, and advanced data capture in an enterprise productivity tool that can support nearly any application in any environment. Superior voice functionality includes outstanding acoustic performance and voice quality, handset, headset and speakerphone modes, as well as push to talk capability (if supported by your WLAN application or WWAN carrier). Your mobile workers will have everything they need to increase productivity and efficiency inside and outside your four walls - from field workers reading meters and repairing equipment to drivers delivering packages, hospital workers checking lab results and medication orders, and more.

Full specifications (PDF)

Manufacturer part number: MC7094-PUCDJRHA7WR

Technical Information

  • Operating System: Windows Mobile 5.0 Premium Phone Edition
  • Processor: Intel PXA270 XScale 624MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • AES
    • LEAP
    • PEAP (MS-CHAP v2)
    • PEAP-TLS
    • TKIP
    • TLS
    • TTLS (CHAP)
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS-MD5
    • TTLS-PAP
    • WEP 40 bit
    • WEP 128 bit
    • WPA2
  • Scanner Type: Laser
  • Symbologies Supported:
    • Codabar (NW7)
    • Code 39
    • Code 93
    • Code 128
    • Discrete 2 of 5
    • Interleaved 2 of 5
    • UCC/EAN 128

General Information

  • Manufacturer:
  • Product Line: Mobile Computer (MC)
  • Product Name: MC70 Mobile Computer

Physical Characteristics

  • Display: 3.5" Color QVGA - Touch Screen TFT LCD
  • Display Resolution: 240 x 320
  • User Accessible Expansion Slot: SDIO
  • Keyboard: 26 Key Numeric Integrated
  • Battery Capacity: 1900 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 1.5" (38mm) x 3" (76mm) x 6" (152mm)
  • Weight: 12 oz

Agency Approvals

  • Agency Approvals:
    • RoHS Compliance
    • UL / cUL 60950-1
    • IEC / EN60950-1
    • Canada: RSS-102
    • EU: EN 50360
    • USA:
    • FCC Part 2
    • FCC OET Bulletin 65 Supplement C
    • Australia:
    • AS/NZ 2772.1
    • EU: EN301 511 Global: 3GPP TS 51.010 GCF Approved Module USA: FCC Part 22 FCC Part 24 Canada: RSS-132 RSS-133 Australia: AS/ACIF S 018 AS TS 001 WLAN and Bluetooth: Canada: RSS-210 Australia: AS/NZS 4268 USA: FCC Part 15.247 FCC Part 15.407 EU: EN 300 328-1 EN 301 893 Japan: ARIB STD-T33 ARIB STD-T66 ARIB STD-T71 Laser Safety: IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1
    • EU: EN301 511 Global: 3GPP TS 51.010 GCF Approved Module USA: FCC Part 22 FCC Part 24 Canada: RSS-132 RSS-133 Australia: AS/ACIF S 018 AS TS 001WLAN and Bluetooth:Canada: RSS-210Australia: AS/NZS 4268USA:FCC Part 15.247FCC Part 15.407EU:EN 300 328-1EN 301 893Japan:ARIB STD-T33ARIB STD-T66ARIB STD-T71Laser Safety:IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1

Environmental Conditions

  • Environmental Sealing: IP64
  • Temperature:
    • -10°C (14°F) to 68°C (154°F) Operating
    • -40°C (-40°F) to 60°C (140°F) Storage
  • Humidity: 95% Non-condensing
  • Electrostatic Discharge (ESD):
    • +/-15kVdc Air Discharge
    • +/-8kVdc Direct Discharge
    • +/-8kVdc Indirect Discharge
  • Drop Spec:
    • 4' To Concrete
    • 5' To Concrete 23°C
  • Tumble: 1000 1.6 ft./.5 m tumbles (2000 drops)

Wireless Data Communications

  • Network Connectivity:
    • WLAN 802.11 b/g/a
    • WPAN Bluetooth
    • WWAN GSM/eGPRS (Quad Band 850/900/1800/1900 Mhz)
  • Maximum RF Data Rate Supported: 54 Mbps
  • Output Power: 100mW
  • Antenna Connectors: External
  • Frequency Band/Bandwidth: 2.4GHz to 5GHz


  • Additional Information:
    • Communication Option: Audio Region: Worldwide Antenna Connectors: Internal for LAN External for WAN Voice Communication: Integrated Voice-over-IP Ready (P2P, PBX, PTT) Wi-Fi Certified
    • Communication Option: AudioRegion: WorldwideAntenna Connectors:Internal for LANExternal for WANVoice Communication: Integrated Voice-over-IP Ready (P2P, PBX, PTT) Wi-Fi Certified
  • Package Contents:
    • MC70 Mobile Computer Lithium-Ion Battery Battery Cover Hand Strap Tethered Stylus Protective Overlay Regulatory Guide Quick Start Guide
    • MC70 Mobile ComputerLithium-Ion BatteryBattery CoverHand StrapTethered StylusProtective OverlayRegulatory GuideQuick Start Guide


  • RAM Memory: 64MB
  • Flash Memory: 128MB


  • Manufacturer Warranty: 1 Year(s) Limited
