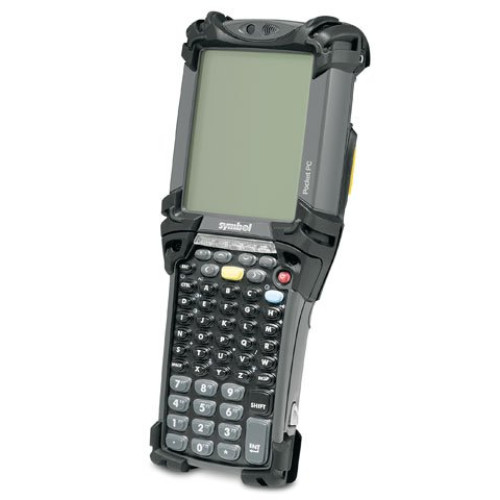

MC9002-KHAH9EEA700 - Symbol MC9000K Hand Held Computer

The rugged MC9000K from Symbol is an exceptionally reliable mobile computer that delivers real-time visibility into your company's mission-critical information. Three wireless radios offer maximum accessibility to help workers make more informed decisions. The MC9000K provides multiple benefits: reduce errors, improve productivity and comply with increased safety standards, environmental or homeland security regulatory issues. It's ideal for your field, delivery, home office, operations, warehouse or factory applications.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MC9002-KHAH9EEA700 MC9000K, 128MB RAM, Wireless Terminal, 53 key, Color Display, with Standard Range Scanner, Windows Mobile 2003 operating system, Bluetooth and GPRS: 850/1800/1900. Order cradle, cable, & power supply separately. See accessories.
Information:   |  Specifications  |
Accessories:   |  Accessories/Options  |  Symbol MC9000K service contract  |

MC9002-KHAH9EEA700 Details

Technical Information

  • Operating System: Windows Mobile 2003
  • Processor: Intel PXA255 XScale 400MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • WEP 40
    • WEP 128 bit
    • Keyguard - (SBL TKIP)
    • Kerberos
    • LEAP
    • WPA Home (PSK)
    • WPA Enterprise (EAP Authenticated)
    • Airbeam Safe (VPN)
    • PEAP
  • Scanner Type: Laser Standard Range
  • Symbologies Supported:
    • Code 39
    • Code 128
    • Code 93
    • Codabar
    • Code 11
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • EAN-8
    • EAN-13
    • MSI
    • UPC-A
    • UPC-E
    • UPC/EAN with Supplementals
    • Coupon Code
    • Trioptic Code 39
    • Webcodes

General Information

  • Manufacturer: Symbol
  • Product Line: Mobile Computer (MC)
  • Product Name: MC9002-K Mobile Computer

Physical Characteristics

  • Display: 3.8" Color QVGA - Touch Screen LCD
  • User Accessible Expansion Slot:
    • SIMM Chip
    • MMC SD (For Memory Expansion Only)
  • Keyboard: 53 Key Alphanumeric Integrated
  • Battery Capacity: 2200 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 1.7" (43mm) x 3.6" (91mm) x 9.2" (234mm)
  • Weight: 22 oz - Configuration-Dependant

Environmental Conditions

  • Environmental Sealing: IP64
  • Temperature:
    • -20°C (-4°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing
  • Electrostatic Discharge (ESD):
    • +/-15kV Air Discharge
    • +/-8kV Direct Discharge
    • +/-8kV Indirect Discharge
  • Drop Spec:
    • 6' To Concrete -20 to 50 Centigrade
    • 5' To Concrete -25 to -10 Centigrade
  • Tumble: 2000 one-meter tumbles at room temperature (4000 hits)

Agency Approvals

  • Agency Approvals:
    • Certified to UL60950
    • CSA C22.2 No. 60950
    • EN60950/IEC 950
    • North America:
    • FCC Part 2 (SAR)
    • FCC Part 15
    • RSS210 Class B
    • EN 301 489-1
    • 489-17
    • IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1

Other

  • Package Contents:
    • MC9002-K Handheld Terminal
    • Battery
    • Handstrap
    • Stylus
    • Regulatory Guide
    • Quick Start Guide

Wireless Data Communications

  • Network Connectivity:
    • WWAN GPRS
    • WPAN Bluetooth

Memory

  • RAM Memory: 128MB
  • Flash Memory: 64MB

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Part # Description Availability Price Order
MC9060-USB-STARTER Symbol MC9060 USB Starter Kit. Includes everything you need to run your MC9060: charging/communications cradle, USB cable, US power supply and AC line cord. Ships Free Today $236.40
11-36244-03R Symbol Stylus, 3 Pack, Yellow, Compatible with SPT1800, PPT8800, MC9060-K, AND MC9060-S. Ships Free Today $13.42

The Symbol MC9002-KHAH9EEA700 is also known as Symbol Technologies SYM-MC9002KHAH9EEA70 or MC9002KHAH9EEA700 .
