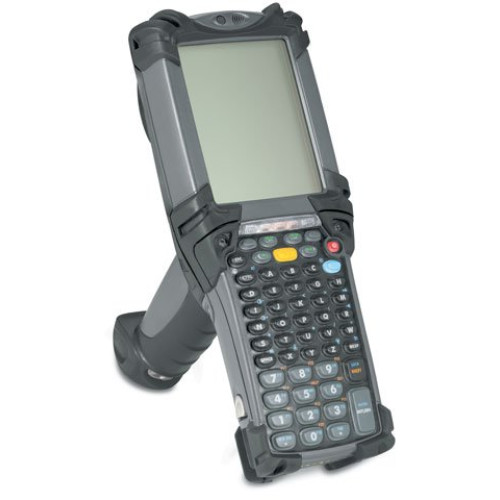

MC9060-GF0HBAEA4WW - Symbol MC9060 (MC9000 Series) Hand Held Computer

The MC9060 (MC9000 Series) provides a world of scanning options. Available are an integrated laser bar code reader engine or a powerful imager. The MC9060 (MC9000 Series) can handle six foot drops to concrete, making this scanner the most durable inventory and warehousing scanner on the market.

We respond to every email
Part # Description Availability Price Order
MC9060-GF0HBAEA4WW MC9060, 64MB RAM, 28 key, Color Touch Display, with Standard Range Scanner, Windows Pocket PC operating system. Order cradle, cable, & power supply separately. See accessories.
Information:   |  Specifications  |
Accessories:   |  Accessories/Options  |  Symbol MC9060 (MC9000 Series) service contract  |

MC9060-GF0HBAEA4WW Details

Technical Information

  • Scanner Range: Standard Range
  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9060-G
  • Product Name: MC9060-G Mobile Computer

Physical Characteristics

  • Height: 7.6"
  • Width: 3.6"
  • Length: 9.2"
  • Weight (Approximate): 1.62 lb


  • Package Contents:
    • MC9060-G Mobile Computer
    • Battery
    • Handstrap
    • Stylus
    • Regulatory Guide
    • Quick Start Guide<
    • MC9060-G Mobile Computer
    • Battery
    • Handstrap
    • Stylus
    • Regulatory Guide
    • Quick Start Guide<
  • Certifications & Standards:
    • Electrical Safety:
    • Certified to UL60950
    • CSA C22.2 No. 60950
    • EN60950/IEC 950
    • EMI/RFI:
    • North America:
    • FCC Part 2 (SAR)
    • FCC Part 15
    • RSS210 Class B
    • EN 301 489-1
    • EN 301 489-17
    • Laser Safety:
    • IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1
  • Additional Information:
    • Scanner Option: SE1224 1D Scanner
    • Communication Options: Audio

Network & Communication

  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11b
  • Wireless Security:
    • Keyguard - (SBL TKIP)
    • WPA Enterprise (EAP Authenticated)
    • Airbeam Safe (VPN)


  • Flash Memory: 64 MB
  • Standard Memory: 64 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • MultiMediaCard (MMC)
    • Secure Digital (SD) Card

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 3.8"
  • Display Color: Color

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 400 MHz
  • Processor Type: XScale

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)


  • Keyboard Type: Numeric
  • Number of Keys: 28


  • Operating System: Windows Mobile 2003


  • Limited Warranty: 1 Year

Touchscreen Information

  • Touchscreen: Yes
Part # Description Availability Price Order
MC9060-USB-STARTER Symbol MC9060 USB Starter Kit. Includes everything you need to run your MC9060: charging/communications cradle, USB cable, US power supply and AC line cord. Ships Free Today $236.40
CRD9000-1001SR Symbol Single slot charging and communications cradle for MC9090/MC9097/MC9000/MC9060/MC9190-G/9200 with spare battery charging. Requires RS-232 or USB communication cable, Power supply with DC Line Cord (Part# KT-14000-148R) and AC line cord (Part# 23844-00-00R). If charging a spare MC90XX-S battery, (Part# BAP9000-100R) must also be ordered. Ships Free Today $161.30
Retail $240
Save 32%
50-16000-182R Motorola AC Power Line Cord, 2 Wire, 6', ungrounded, NEMA 1-15P Plug. (For use with 2 Wire, ungrounded Power Supplies) Ships Free Today $12.88
25-64396-01R Symbol USB Cable (A to B) for the cradle to the host system Ships Free Today $18.64
25-63852-01R Symbol RS-232 Cable for cradle to the host system Ships Free Today $22.63
11-67218-04R Symbol Protective Boot for MC90XX-G Only. Ships Free Today $14.61
11-36244-03R Symbol Stylus, 3 Pack, Yellow, Compatible with SPT1800, PPT8800, MC9060-K, AND MC9060-S. Ships Free Today $13.44
11-08062-02R Symbol Belt for Holster for MC30XX, MC31XX, MC90XX and WT40XX. Ships Free Today $28.24
23844-00-00R Motorola US AC Line Cord, Grounded, 7.5', Three wire for power supplies (Part# KT-14000-148R) and (Part# 50-14000-241R) and (Part# PWRS-14000-148R). Ships Free Today $15.76
TSP-US-MC-2 BCI Service Contracts, True Support contract 2-year - Mobile Computers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $72 per year for 2 years, billed annually.
Ships Free in 3-5 Days
SSB-MC9060G-20-R Symbol Service Plan, Renewal-Service from the Start - Service Center Bronze - 2 Year GUN
Ships Free in 3-5 Days
Call for Details

The Symbol MC9060-GF0HBAEA4WW is also known as Symbol Technologies SYM-MC9060GF0HBAEA4W or MC9060GF0HBAEA4WW .
