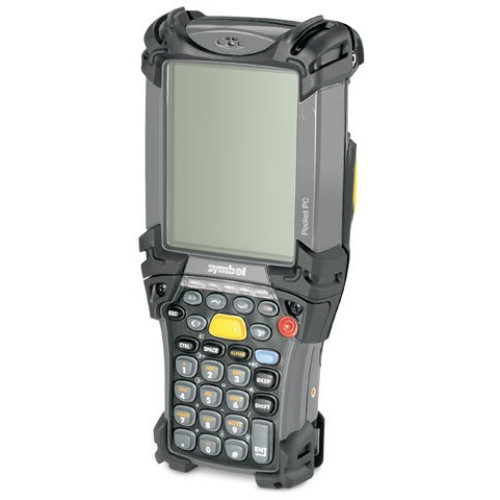

MC9060-SH0JBAB00WW - Symbol MC9000S Hand Held Computer

The rugged MC9000S mobile computer from Symbol is designed for true mobile field applications. It delivers real-time visibility into your company's day-to-day business transactions for improved efficiencies, reduced costs and new competitive advantage. Built for harsh environments, the durable MC9000S helps reduce errors and improve productivity for field workers, route drivers, technicians or law enforcement and gives instant access to mission-critical customer information.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MC9060-SH0JBAB00WW MC9060S, Windows Mobile 2003 64MB RAM Wireless 28 key Numeric keypad Monochrome Display XScale PXA255 processor at 400 MHz Includes: 1D Imager Cradles, Power supply and Communication Cables not included. See accessories.
Information:   |  Specifications  |
Accessories:   |  Accessories/Options  |  Symbol MC9000S service contract  |

MC9060-SH0JBAB00WW Details

Technical Information

  • Operating System: Windows CE .NET
  • Processor: Intel PXA255 XScale 400MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • WEP 128 bit
    • Keyguard - (SBL TKIP)
    • Kerberos
    • LEAP
    • WPA Home (PSK)
    • PEAP
    • WPA Enterprise (EAP Authenticated)
  • Scanner Type: Laser Standard Range - SE 824 1D
  • Symbologies Supported:
    • Code 11
    • Code 39
    • Code 93
    • Code 128
    • Codabar
    • Coupon Code
    • Discrete 2 of 5
    • EAN-8
    • EAN-13
    • Interleaved 2 of 5
    • MSI
    • Trioptic Code 39
    • UPC-A
    • UPC-E
    • UPC/EAN Supplementals
    • Webcodes

General Information

  • Manufacturer: Symbol
  • Product Line: Mobile Computer (MC)
  • Product Name: MC9060-S Mobile Computer

Physical Characteristics

  • Display: 3.8" Monochrome QVGA - Touch Screen
  • User Accessible Expansion Slot: MMC SD (For Memory Expansion Only)
  • Keyboard: 28 Key Numeric Integrated
  • Battery Capacity: 1550 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 1.7" (43mm) x 3.6" (91mm) x 7.6" (193mm)
  • Weight: 23 oz - Configuration Dependant

Environmental Conditions

  • Environmental Sealing: IP64
  • Temperature:
    • -20°C (-4°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing
  • Electrostatic Discharge (ESD):
    • +/-15kVdc Air Discharge
    • +/-8kVdc Direct Discharge
    • +/-8kVdc Indirect Discharge
  • Drop Spec: 6' To Concrete Multiple at -20°C to 50°C
  • Tumble: 2000 one-meter tumbles at room temperature (4000 hits)

Agency Approvals

  • Agency Approvals:
    • Certified to UL60950
    • CSA C22.2 No. 60950
    • EN60950/IEC 950
    • North America:
    • FCC Part 2 (SAR)
    • FCC Part 15
    • RSS210 Class B
    • EN 301 489-1, 489-17
    • IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1

Other

  • Additional Information: Region: World Wide
  • Package Contents:
    • MC9060-S Mobile Computer
    • Battery
    • Hand Strap
    • Stylus
    • Regulatory Guide
    • Quick Start Guide

Wireless Data Communications

  • Network Connectivity: WLAN 802.11b
  • Maximum RF Data Rate Supported: 11 Mbps
  • Output Power: 100mW
  • Antenna Connectors: Internal
  • Frequency Band/Bandwidth: 2.4GHz to 2.5GHz

Memory

  • RAM Memory: 64MB
  • Flash Memory: 64MB

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Part # Description Availability Price Order
SAC9000-4000R Symbol MC90XX 4-Slot battery charger. Charges 4 spare batteries. Must also order separately power supply (Part# PWRS-14000-242R), DC Cable (Part# 25-72614-01R), and AC Line Cord (Part# 23844-00-00R). If charging a spare MC90XX-S spare battery also order (Part# BAP9000-100R). Ships Free Today $207.32
MDM9000-100R Symbol Modem Module for MC1000 Single Slot Cradle. Requires modem cable (Part# 25-63856-01R), not included.
Ships Free in 24-48 Hours
$162.21
Retail $245
Save 33%
MC9060-USB-STARTER Symbol MC9060 USB Starter Kit. Includes everything you need to run your MC9060: charging/communications cradle, USB cable, US power supply and AC line cord. Ships Free Today $236.40
MC9060-SERIAL-STARTER Symbol MC9060 Serial Starter Kit. Includes everything you need to run your MC9060: charging/communications cradle, serial cable, US power supply and AC line cord. Ships Free Today $240.40
KT-61498-01R Symbol Wall mounting bracket for MC9000/MC9050/MC9090/MC9097/MC9190. Order one for Single Slot cradle and one for the SAC9000. Order 2 for 4 Slot Cradles. Order Cradle Bracket separately to attach to the wall mount bracket. Ships Free Today $51.05
Retail $70
Save 27%
BTRY-MC90SAB00-01 Symbol Spare Lithium Ion 1550 mAh Battery for MC90XX-S Only
Ships Free in 24-48 Hours
$61.82
Retail $85
Save 27%
ADP9000-100R Symbol MC90XX Cable Adapter. This adapter provides communication to the host or printer and can be used for AC charging. Order RS-232, USB, and printer cable separately. Does not include power supply. Ships Free Today $54.21
Retail $77
Save 29%
25-64396-01R Symbol USB Cable (A to B) for the cradle to the host system Ships Free Today $18.61
25-63852-01R Symbol RS-232 Cable for cradle to the host system Ships Free Today $22.63
25-62166-01R Motorola Cable, Assembly (USB) Ships Free Today $38.71
Retail $50
Save 22%
23844-00-00R Motorola US AC Line Cord, Grounded, 7.5', Three wire for power supplies (Part# KT-14000-148R) and (Part# 50-14000-241R) and (Part# PWRS-14000-148R). Ships Free Today $15.74
TSP-US-MC-3 BCI Service Contracts, True Support contract 3-year - Mobile Computers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $60 per year for 3 years, billed annually.
Ships Free in 24-48 Hours
$46.00
Retail $60
Save 23%
SSB-MC906XSK-20-R Symbol Service Plan, Renewal-Service from the Start - Service Center Bronze - 2 Year BRCK/SHRT
Ships Free in 24-48 Hours
$159.88

The Symbol MC9060-SH0JBAB00WW is also known as Symbol Technologies SYM-MC9060SH0JBAB00W or MC9060SH0JBAB00WW .
