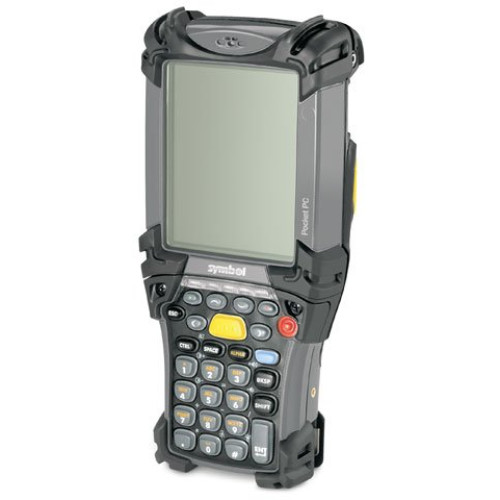

Symbol MC9000-S Mobile Computer
Part #: MC9062-SHBH9AEA7WW | SKU: SYM15144

The rugged MC9000-S mobile computer from Symbol is designed for true mobile field applications. It delivers real-time visibility into your company's day-to-day business transactions for improved efficiencies, reduced costs and new competitive advantage. Built for harsh environments, the durable MC9000-S helps reduce errors and improve productivity for field workers, route drivers, technicians or law enforcement and gives instant access to mission-critical customer information.

Symbol MC9000-S Mobile Computer

Part Details: MC9000-S, 128MB RAM, 802.11b, 28 key, Color Display, with Standard Range Scanner, Windows Mobile 2003 operating system, Bluetooth and GPRS: 900/1800/1900. Order cradle, cable, & power supply separately. See accessories.

Additional Information

Display Resolution 240 x 320
Manufacturer Symbol
Model Name MC9000-S
Network Connectivity Bluetooth, GPRS
Operating System Windows Mobile, Windows Mobile 2003
RAM Memory 128 MB
Scanner Type Laser
Style Full-size

Technical Information

  • Operating System: Windows Mobile 2003
  • Processor: Intel PXA255 XScale 400MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • WEP 128 bit
    • Keyguard - SBL
    • Kerberos
    • LEAP
    • PEAP
    • WPA Home (PSK)
    • WPA Enterprise (EAP Authenticated)
    • Airbeam Safe (VPN)
    • WEP 40
  • Scanner Type: Laser Standard Range
  • Symbologies Supported:
    • UPC/EAN
    • Code 128
    • UCC/EAN 128
    • RSS Code 39
    • Code 93
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Codabar
    • MSI
    • Webcodes
    • Trioptic Code 39
    • Coupon Code
    • UPC/EAN Supplementals
    • UPC-E
    • UPC-A
    • EAN-13
    • EAN-8
    • Code 11

General Information

  • Manufacturer: Symbol
  • Product Line: Mobile Computer (MC)
  • Product Name: MC9062-S Mobile Computer

Physical Characteristics

  • Display: 3.8" Color QVGA - Touch Screen LCD
  • User Accessible Expansion Slot:
    • SIMM Chip
    • MMC SD (For Memory Expansion Only)
  • Keyboard: 28 Key Numeric Integrated
  • Battery Capacity: 2200 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 1.7" (43mm) x 3.6" (91mm) x 7.6" (193mm)
  • Weight: 20 oz - Configuration-Dependant

Environmental Conditions

  • Environmental Sealing: IP64
  • Temperature:
    • -20°C (-4°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing
  • Electrostatic Discharge (ESD):
    • +/-15kV Air Discharge
    • +/-8kV Direct Discharge
    • +/-8kV Indirect Discharge
  • Drop Spec:
    • 6' To Concrete -20 to 50 Centigrade
    • 5' To Concrete -25 to -10 Centigrade
  • Tumble: 2000 one-meter tumbles at room temperature (4000 hits)

Agency Approvals

  • Agency Approvals:
    • Certified to UL60950
    • CSA C22.2 No. 60950
    • EN60950/IEC 950
    • North America:
    • FCC Part 2 (SAR)
    • FCC Part 15
    • RSS210 Class B
    • EN 301 489-1
    • 489-17
    • IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1

Wireless Data Communications

  • Network Connectivity:
    • WLAN 802.11b
    • WWAN GPRS
    • WPAN Bluetooth
  • Maximum RF Data Rate Supported: 11 Mbps
  • Output Power: 100mW
  • Antenna Connectors: Internal
  • Frequency Band/Bandwidth: 2.4GHz to 2.5GHz

Other

  • Package Contents:
    • MC9062-S Mobile Computer
    • Battery
    • Stylus
    • Hand Strap
    • Regulatory Guide
    • Quick Start Guide

Memory

  • RAM Memory: 128MB
  • Flash Memory: 64MB

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
