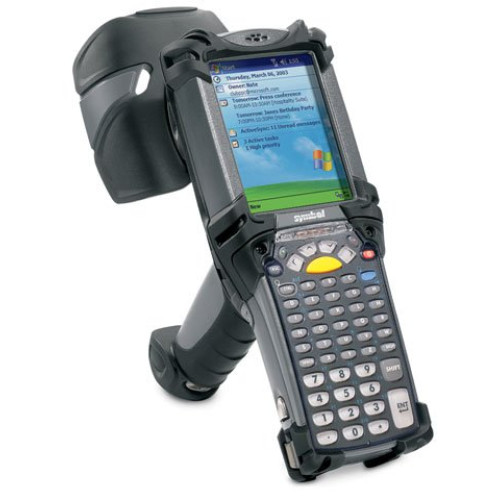

MC906R-GK0HBEER5US - Symbol MC9060 RFID RFID Reader

The Symbol MC9060 RFID combines RFID, bar code reading, imaging, 802.11 connectivity, a full 1/4 VGA screen and alphanumeric keypad to give you the flexibility to give your organization real-time access to mission-critical information from key points in your supply chain. Enterprise-wide management and control of the MC9060 RFID is easy with Symbol's Mobility Services Platform (MSP).

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MC906R-GK0HBEER5US MC9060G RFID, RFID, Imager, Color Display, 64MB, 53 key Alphanumeric Keypad, 802.11b, Pocket PC OS. Order cradle, cable, & power supply separately. See accessories.
Information:   |  Specifications  |  Symbol's MC9060 RFID page  |
Accessories:   |  Accessories/Options  |  Symbol MC9060 RFID service contract  |

MC906R-GK0HBEER5US Details

Technical Information

  • Operating System: Windows Mobile 2003
  • Processor: Intel PXA255 XScale 400MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • Airbeam Safe (VPN)
    • Kerberos
    • Keyguard - (SBL TKIP)
    • LEAP
    • PEAP
    • WEP 128 bit
    • WPA Home (PSK)
    • WPA Enterprise (EAP Authenticated)
  • Scanner Type: Imager - Pico
  • Symbologies Supported:
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • Code 128
    • CompositeAB
    • Composite C
    • Coupon Code
    • DataMatrix
    • Discrete 2 of 5
    • Dutch Kix
    • EAN-8
    • EAN-13
    • Interleaved 2 of 5
    • Macro PDF-417
    • Micro PDF-417
    • Macro Micro PDF-417
    • MaxiCode
    • MSI
    • PDF 417
    • QR Code
    • RSS-Expanded
    • RSS-Limited
    • RSS-14
    • TLC39
    • Trioptic Code 39
    • UPC/EAN Supplementals
    • UPC-A
    • UPC-E
    • U.S. Planet
    • U.S. Postnet
    • Webcodes
    • Australian 4-State
    • Canadian 4 State
    • Japanese 4-State
    • UK 4-State

General Information

  • Manufacturer: Symbol
  • Product Line: Mobile Computer (MC)
  • Product Name: MC906R-G RFID Mobile Computer

Physical Characteristics

  • Display: 3.8" Color QVGA - Resistive Touch Screen
  • Display Resolution: 240 x 320
  • Keyboard: 53 Key Alphanumeric Integrated
  • Battery Capacity: 2200 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 7.7" (196mm) x 4.7" (119mm) x 10.75" (273mm)
  • Weight: 35.4 oz - Includes Battery, Scanner and Radio

Environmental Conditions

  • Environmental Sealing: IP64
  • Temperature:
    • -20°C (-4°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing
  • Electrostatic Discharge (ESD):
    • +/-15kVdc Air Discharge
    • +/-8kVdc Direct Discharge
    • +/-8kVdc Indirect Discharge
  • Drop Spec:
    • 6ft To Concrete Multiple at -10°C to 50°C
    • 5ft To Concrete Multiple at -25°C to -10°C
  • Tumble: 2000 one-meter tumbles at room temperature (4000 hits)

RFID

  • Standards Supported:
    • EPC Class 0
    • EPC Class 1
    • EPC Class 1 Generation 2
  • Nominal Read Range: 0.2ft to 10ft
  • Nominal Write Range: 1ft to 2ft
  • Field: Approximate 70° Cone
  • Operating Frequency: 902MHz to 928MHz

Wireless Data Communications

  • Network Connectivity: WLAN 802.11b
  • Maximum RF Data Rate Supported: 11 Mbps
  • Output Power: 100mW
  • Antenna Connectors: Internal
  • Frequency Band/Bandwidth: 2.4GHz to 2.5GHz

Other

  • Additional Information: Country: US
  • Package Contents: MC906R-G RFID Mobile Computer Main Lithium-Ion Battery Strap Lanyard Stylus Regulatory Guide Quick Start Guide

Memory

  • RAM Memory: 64MB
  • Flash Memory: 64MB

Agency Approvals

  • Agency Approvals: Electrical Safety: UL60950 CSA C22.2 No. 60950 EMI/RFI: North America: FCC Part 2 (SAR) FCC Part 15 RSS210 Class B (Class 1 model only) Laser Safety: IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Part # Description Availability Price Order
MC9060-USB-STARTER Symbol MC9060 USB Starter Kit. Includes everything you need to run your MC9060: charging/communications cradle, USB cable, US power supply and AC line cord. Ships Free Today $236.40

The Symbol MC906R-GK0HBEER5US is also known as Symbol Technologies SYM-MC906RGK0HBEER5U or MC906RGK0HBEER5US .
