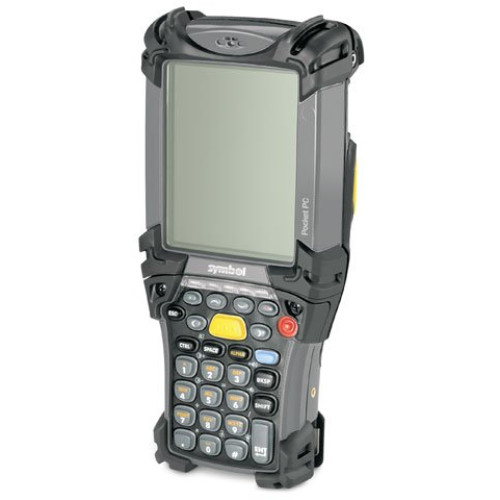

MC9090-SK0HJBFA6WR - Symbol MC9090 Hand Held Computer

The MC9090 rugged mobile computer empowers mobile workers to capture and access critical business information in real time. The construction of the MC9090 is designed to withstand rigorous use in extreme environments and a wide variety of working conditions, providing the flexibility to be used on the manufacturing floor, in the warehouse or on the sales floor of a retail operation. The MC9090 with Bluetooth supports wireless printing and use of wireless headsets. Those who work where space is limited will enjoy the reduced size of this shortened terminal. The MC9090 gives users a choice of Windows Mobile 5.0 or Windows CE 5.0--allowing you to select either a familiar feature rich environment or a robust customizable application-specific environment. The ability to capture images as well as scan barcodes enables enterprises to deploy a single device in many business areas.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MC9090-SK0HJBFA6WR MC9090, Short, 802.11a/b/g, Imager, Color, 64/128MB, 38 key (numeric), Windows Mobile 5.0.0, Audio/Voice/Bluetooth
Information:   |  Specifications  |
Accessories:   |  Accessories/Options  |  Symbol MC9090 service contract  |

MC9090-SK0HJBFA6WR Details

Technical Information

  • Operating System: Windows Mobile 5.0 Premium Edition
  • Processor: Intel PXA270 XScale 624MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • AES
    • LEAP
    • PEAP (MS-CHAP v2)
    • PEAP-TLS
    • TKIP
    • TLS
    • TTLS (CHAP)
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS-MD5
    • TTLS-PAP
    • WEP 40 bit
    • WEP 128 bit
  • Scanner Type: Imager Standard Range - Pico SE 4400
  • Symbologies Supported:
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • Code 128
    • CompositeAB
    • Composite C
    • Coupon Code
    • DataMatrix
    • Discrete 2 of 5
    • Dutch Kix
    • EAN-8
    • EAN-13
    • Interleaved 2 of 5
    • Macro PDF-417
    • Micro PDF-417
    • Macro Micro PDF-417
    • MaxiCode
    • MSI
    • PDF 417
    • QR Code
    • RSS-Expanded
    • RSS-Limited
    • RSS-14
    • TLC39
    • Trioptic Code 39
    • UPC/EAN Supplementals
    • UPC-A
    • UPC-E
    • U.S. Planet
    • U.S. Postnet
    • Webcodes
    • Australian 4-State
    • Canadian 4 State
    • Japanese 4-State
    • UK 4-State

General Information

  • Manufacturer: Motorola
  • Product Line: Mobile Computer (MC)
  • Product Name: MC9090-S Mobile Computer

Physical Characteristics

  • Display: 3.8" Color QVGA - Touch Screen LCD
  • Display Resolution: 320 x 240
  • User Accessible Expansion Slot: SDIO
  • Keyboard: 38 Key Numeric Prime Integrated
  • Battery Capacity: 1550 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 2.2" (56mm) x 3.6" (91mm) x 9.1" (231mm)

Environmental Conditions

  • Environmental Sealing: IP64
  • Temperature:
    • -20°C (-4°F) to 50°C (122°F) Operating
    • 0°C (32°F) to 40°C (104°F) Charging
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing
  • Electrostatic Discharge (ESD):
    • +/-15kVdc Air Discharge
    • +/-8kVdc Direct Discharge
  • Drop Spec: 6' To Concrete Multiple at -20°C to 50°C
  • Tumble: 2000 one-meter tumbles at room temperature (4000 hits)

Wireless Data Communications

  • Network Connectivity:
    • WLAN 802.11 b/g/a
    • WPAN Bluetooth
  • Maximum RF Data Rate Supported: 54 Mbps
  • Output Power: 100mW
  • Antenna Connectors: Internal
  • Frequency Band/Bandwidth: 2.4GHz to 5GHz

Other

  • Additional Information:
    • Communication Options: Audio
    • Region: Worldwide
  • Package Contents: MC9090-S Mobile Computer Battery Hand Strap Stylus BT Explorer Regulatory Guide Quick Start Guide

Memory

  • RAM Memory: 64MB
  • Flash Memory: 128MB

Agency Approvals

  • Agency Approvals: RoHS Compliance

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Part # Description Availability Price Order
MC9090-USB-STARTER Symbol MC9090 USB Starter Kit. Includes everything you need to run your MC9090: charging/communications cradle, USB cable, US power supply and AC line cord. Ships Free Today $225.10
MC9090-SERIAL-STARTER Symbol MC9090 Serial Starter Kit. Includes everything you need to run your MC9090: charging/communications cradle, serial cable, US power supply and AC line cord. Ships Free Today Call for Details

The Symbol MC9090-SK0HJBFA6WR is also known as Symbol Technologies SYM-MC9090SK0HJBFA6R or MC9090SK0HJBFA6WR .
