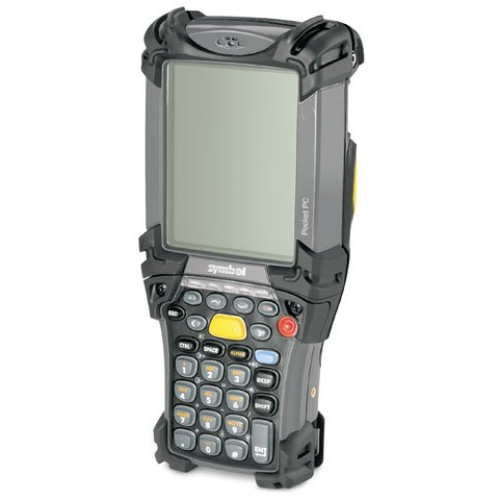

MC9094-SKCHJAHA6WW - Symbol MC9090 Hand Held Computer

The MC9090 rugged mobile computer empowers mobile workers to capture and access critical business information in real time. The construction of the MC9090 is designed to withstand rigorous use in extreme environments and a wide variety of working conditions, providing the flexibility to be used on the manufacturing floor, in the warehouse or on the sales floor of a retail operation. The MC9090 with Bluetooth supports wireless printing and use of wireless headsets. Those who work where space is limited will enjoy the reduced size of this shortened terminal. The MC9090 gives users a choice of Windows Mobile 5.0 or Windows CE 5.0--allowing you to select either a familiar feature rich environment or a robust customizable application-specific environment. The ability to capture images as well as scan barcodes enables enterprises to deploy a single device in many business areas.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MC9094-SKCHJAHA6WW MC9090, Wireless Short Terminal with Windows Mobile 5.0 Premium Phone Edition, 64 MB RAM, 802.11b Wireless, Bluetooth, 28 key numeric keypad, color display, Intel PXA270 XScale 624 MHz, 1D imager. Includes battery, stylus, and hand strap. Cradles, power supply and cables not included. See accessories.
Information:   |  Specifications  |
Accessories:   |  Accessories/Options  |  Symbol MC9090 service contract  |

MC9094-SKCHJAHA6WW Details

Technical Information

  • Scanner Range: Standard Range
  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • Code 128
    • CompositeAB
    • Composite C
    • Coupon Code
    • DataMatrix
    • Discrete 2 of 5
    • Dutch Kix
    • EAN-8
    • EAN-13
    • Interleaved 2 of 5
    • Macro PDF-417
    • Micro PDF-417
    • Macro Micro PDF-417
    • MaxiCode
    • MSI
    • PDF 417
    • QR Code
    • RSS-Expanded
    • RSS-Limited
    • RSS-14
    • TLC39
    • Trioptic Code 39
    • UPC/EAN Supplementals
    • UPC-A
    • UPC-E
    • U.S. Planet
    • U.S. Postnet
    • Webcodes
    • Australian 4-State
    • Canadian 4 State
    • Japanese 4-State
    • UK 4-State

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9094-S
  • Product Name: MC9094-S Mobile Computer

Physical Characteristics

  • Height: 2.3"
  • Width: 3.6"
  • Length: 7.9"

Other

  • Package Contents:
    • MC9094-S Mobile Computer
    • Battery
    • Hand Strap
    • Stylus
    • BT Explorer
    • Regulatory Guide
    • Quick Start G
    • MC9094-S Mobile Computer
    • Battery
    • Hand Strap
    • Stylus
    • BT Explorer
    • Regulatory Guide
    • Quick Start G
  • Certifications & Standards:
    • Electrical Safety:
    • Certified to UL60950-1
    • CSA C22.2 No. 60950-1
    • EN60950-1
    • IEC 60950-1
    • EMI/RFI:
    • FCC Part 2 (SAR)
    • FCC Part 15
    • RSS210 B
    • EN 300 328
    • EN 301 489-1
    • EN 301 489-17
  • Additional Information:
    • Communication Options: Audio
    • Region: Worldwide
    • Voice Communication:
    • Voice-over-IP Ready (P2P, PBX, PPT)
    • Wi-Fi Certified

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Network Band: Quad Band
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • AES
    • LEAP
    • PEAP (MS-CHAP v2)
    • PEAP-TLS
    • TKIP
    • TLS
    • TTLS (CHAP)
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS-MD5
    • TTLS-PAP
    • WEP 40 bit
    • WEP 128 bit

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 3.8"
  • Display Color: Color
  • Screen Resolution: 320 x 240

Memory

  • Flash Memory: 128 MB
  • Standard Memory: 64 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: MultiMediaCard (MMC)

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Battery Information

  • Battery Capacity: 1550 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Keyboard/Keypad

  • Keyboard Type: Numeric
  • Number of Keys: 28

Software

  • Operating System: Windows Mobile 5.0 Premium Phone Edition

Warranty

  • Limited Warranty: 1 Year

Touchscreen Information

  • Touchscreen: Yes
Part # Description Availability Price Order
SAC9000-4000R Symbol MC90XX 4-Slot battery charger. Charges 4 spare batteries. Must also order separately power supply (Part# PWRS-14000-242R), DC Cable (Part# 25-72614-01R), and AC Line Cord (Part# 23844-00-00R). If charging a spare MC90XX-S spare battery also order (Part# BAP9000-100R). Ships Free Today $207.32
MDM9000-100R Symbol Modem Module for MC1000 Single Slot Cradle. Requires modem cable (Part# 25-63856-01R), not included.
Ships Free in 24-48 Hours
$162.21
Retail $245
Save 33%
KT-85555-10R Symbol Spare Stylus MC909X K/S - 10 Pack (Yellow) Ships Free Today $39.97
KT-85555-03R Symbol Stylus, 3 Pack, Yellow, Compatible with MC9090-K/S. Ships Free Today $20.97
KT-61498-01R Symbol Wall mounting bracket for MC9000/MC9050/MC9090/MC9097/MC9190. Order one for Single Slot cradle and one for the SAC9000. Order 2 for 4 Slot Cradles. Order Cradle Bracket separately to attach to the wall mount bracket. Ships Free Today $51.05
Retail $70
Save 27%
KT-21-61261-01 Symbol Spare Lithium Ion 2200 mAh Battery for MC90XX-G, MC90XX-K, MC91XX, MC92XX and RD5000 Product Lines Only. (Replaces 21-65587-01 & 21-65587-02) Ships Free Today $61.67
Retail $90
Save 31%
CRD9000-1001SR Symbol Single slot charging and communications cradle for MC9090/MC9097/MC9000/MC9060/MC9190-G/9200 with spare battery charging. Requires RS-232 or USB communication cable, Power supply with DC Line Cord (Part# KT-14000-148R) and AC line cord (Part# 23844-00-00R). If charging a spare MC90XX-S battery, (Part# BAP9000-100R) must also be ordered. Ships Free Today $160.78
Retail $240
Save 33%
BTRY-MC90SAB00-01 Symbol Spare Lithium Ion 1550 mAh Battery for MC90XX-S Only
Ships Free in 24-48 Hours
$61.82
Retail $85
Save 27%
ADP9000-100R Symbol MC90XX Cable Adapter. This adapter provides communication to the host or printer and can be used for AC charging. Order RS-232, USB, and printer cable separately. Does not include power supply. Ships Free Today $54.21
Retail $77
Save 29%
25-64396-01R Symbol USB Cable (A to B) for the cradle to the host system Ships Free Today $18.61
25-63852-01R Symbol RS-232 Cable for cradle to the host system Ships Free Today $22.63
25-62166-01R Motorola Cable, Assembly (USB) Ships Free Today $38.71
Retail $50
Save 22%
23844-00-00R Motorola US AC Line Cord, Grounded, 7.5', Three wire for power supplies (Part# KT-14000-148R) and (Part# 50-14000-241R) and (Part# PWRS-14000-148R). Ships Free Today $15.74

The Symbol MC9094-SKCHJAHA6WW is also known as Symbol Technologies SYM-MC9094SKCHJAHA6W or MC9094SKCHJAHA6WW .
