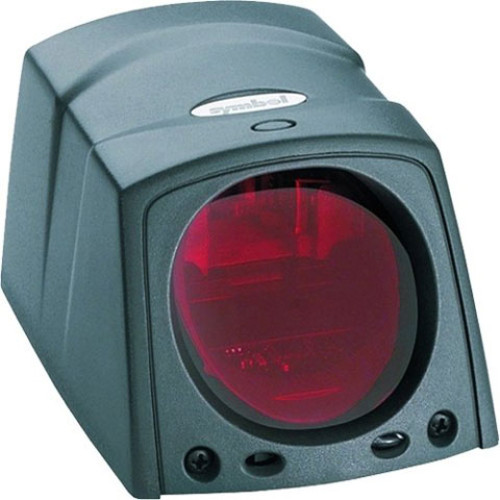

MS-1204FZY-I000 - Symbol MS1204 Industrial Bar code Scanner

The Symbol MS1204 Barcode Reader is a compact, durable, industrial fixed mount scanner available in fuzzy (FZY) version for maximum versatility. The MS1204 Barcode Reader features fuzzy logic for premium scanning on 1D barcodes including poorly printed and low contrast. The Symbol MS1204 is an excellent choice for OEM devices requiring accurate, automated data collection, even in the most demanding environments. It can also be used as a standalone fixed mount scanner.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MS-1204FZY-I000 MS1204, MiniScan (Housed Scan Engine, CL 2, SL, FZY and RS-232)
Information:   |  Specifications  |  Symbol's MS1204 page  |
Accessories:   |  Accessories/Options  |  Symbol MS1204 service contract  |

MS-1204FZY-I000 Details

Technical Information

  • Form Factor: Fixed Mount Scanner
  • Barcode Dimension: 1D
  • Symbologies Supported:
    • UPC/EAN
    • Code 128
    • UCC/EAN 128
    • Code 39
    • Code 93
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Codabar
    • MSI
    • RSS
  • Scanner Type: Laser
  • Scan Rate: 36 Scans/sec Bi-directional
  • Interface Options: RS-232
  • Interface Connectivity: Corded
  • Scan Pattern: Linear
  • Input Voltage: 5 V DC

General Information

  • Manufacturer: Symbol
  • Product Line: MiniScan
  • Product Name: MiniScan-1204 Barcode Scanner

Physical Characteristics

  • Dimensions: 1.60" (40.64mm) x 2.28" (57.91mm) x 2.94" (74.68mm)
  • Weight: 4.45 oz

Agency Approvals

  • Agency Approvals:
    • CDRH Class II
    • IEC Class 2
    • UL1950
    • CA C22-2 NO950 ENG60950/IEC950
    • FCC Part 15 Class B
    • ICES-003 Class B European Union EMC Directive
    • Australian SMA

Environmental Conditions

  • Temperature:
    • -20°C (-4°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing

Warranty

  • Manufacturer Warranty: 1 Year(s)
Part # Description Availability Price Order
KT-65578-01R Symbol Bracket (Adjustable) for the MiniScan Ships Free Today $39.28
Retail $51
Save 22%
23844-00-00R Motorola US AC Line Cord, Grounded, 7.5', Three wire for power supplies (Part# KT-14000-148R) and (Part# 50-14000-241R) and (Part# PWRS-14000-148R). Ships Free Today $15.76
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$48.00
SSS-MS120X-30 Symbol Service Contract - 3 year, Zebra OneCare Select. Includes Comprehensive coverage. Check datasheet for regional availability.
Ships Free in 3-5 Days
$93.05
Retail $121
Save 23%

The Symbol MS-1204FZY-I000 is also known as Symbol Technologies SYM-MS1204FZY or MS1204FZYI000 .
