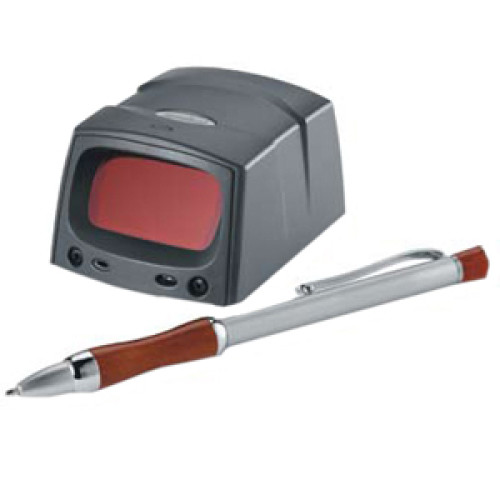

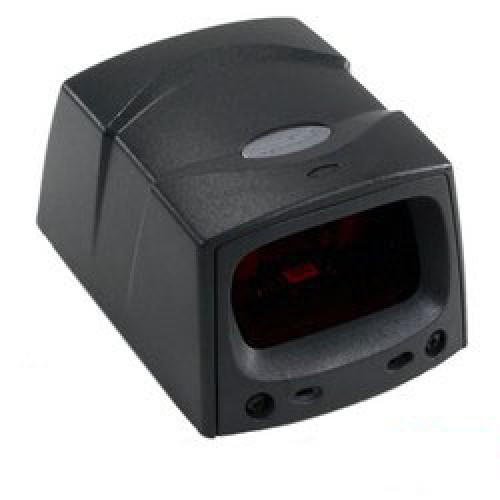

MS-1207WA-I000R - Symbol MS1207 Industrial Bar code Scanner

The MS1207 from Symbol is a compact, durable, industrial fixed-mount scanner. The MS1207 is an excellent choice for OEM devices requiring accurate, automated data collection, even in the most demanding environments. The MS1207 scanner features immunity to ambient light and durable design which combine to deliver premium scanning performance in the most demanding environments. MS1207 scanners are easy to program and configure, enabling you to shorten your development time and bring your product to market faster - even if you don't have in-house technical resources for scanner integration. With its rugged durable housing, exit window, integrated beeper and multiple interface options, MS1207 scanners enable your project teams to quickly and confidently integrate high-performance 1D barcode data capture into many applications.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MS-1207WA-I000R MS 1207, MS 1207 MiniScan (Housed Scan Engine, CL 2, SL-WA, 60D and USB/Synapse). Requires cable, not included. See accessories. Ships Free Today $212.40
Information:   |  Specifications  |  Symbol's MS1207 page  |
Accessories:   |  Accessories/Options  |

MS-1207WA-I000R Details

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Linear
  • Scan Rate: 36 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN
    • Code 128
    • UCC/EAN 128
    • Code 39
    • Code 93
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Codabar
    • MSI
    • RSS
    • UPC/EAN
    • Code 128
    • UCC/EAN 128
    • Code 39
    • Code 93
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Codabar
    • MSI
    • RSS
  • Depth of Field:
    • 1" - 4"@5 mil
    • 0.60" - 7.20"@7.50 mil
    • 0.60" - 11"@ - 100% UPC
    • 0 mil - 15"@20 mil
    • 0 mil - 19"@40 mil
    • 0 mil - 24"@55 mil

General Information

  • Product Type: In-counter Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MS1207
  • Product Name: MiniScan MS1207 Barcode Reader
  • Product Line: MiniScan

Physical Characteristics

  • Height: 1.6"
  • Width: 2.3"
  • Depth: 2.9"
  • Weight (Approximate): 4.45 oz

Interfaces/Ports

  • Host Interface: Serial

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • RoHS Compliant
    • Laser Classification:
    • CDRH Class II
    • IEC Class 2
    • Electrical Safety:
    • Certified to UL1950
    • CA C22-2 NO950 ENG60950/IEC950
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B European Union EMC Directive
    • Australian SMA
  • Additional Information:
    • Interfaces Supported:
    • RS-232
    • USB

Warranty

  • Limited Warranty: 3 Year
Part # Description Availability Price Order
KT-65578-01R Symbol Bracket (Adjustable) for the MiniScan Ships Free Today $39.28
Retail $51
Save 22%
20-60136-02R Symbol Twilight black gooseneck stand for MiniScan series Ships Free Today $27.22
Retail $30
23844-00-00R Motorola US AC Line Cord, Grounded, 7.5', Three wire for power supplies (Part# KT-14000-148R) and (Part# 50-14000-241R) and (Part# PWRS-14000-148R). Ships Free Today $15.76
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$48.00
SSS-MS120X-30 Symbol Service Contract - 3 year, Zebra OneCare Select. Includes Comprehensive coverage. Check datasheet for regional availability.
Ships Free in 3-5 Days
$93.05
Retail $121
Save 23%

The Symbol MS-1207WA-I000R is also known as Symbol Technologies SYM-MS1207WAI000R or MS1207WAI000R .
