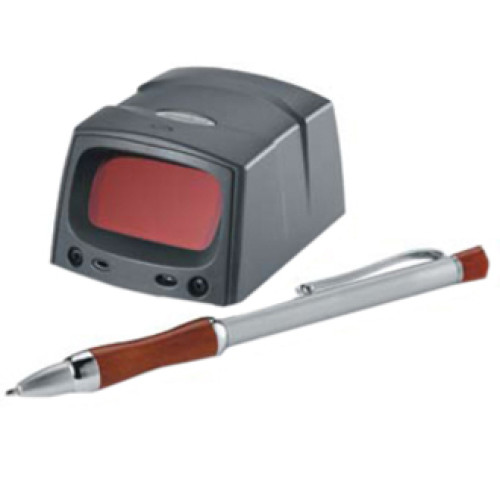

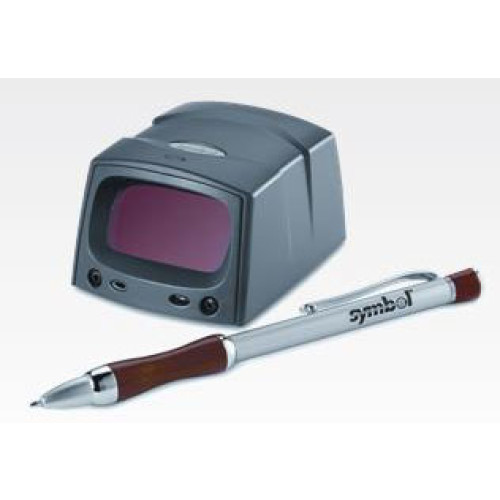

MS-2204VHD-I000R - Symbol MS2204 Industrial Bar code Scanner

The Symbol MS2204 offers four scan patterns including omnidirectional for rapid capture of barcodes and symbols. This versatility minimizes the need for precise positioning of linear 1D barcodes, allowing even novice users to effectively scan data.The smart raster pattern excels at reading 2D symbols, even those that are poorly printed or low-contrast. Ruggedly constructed, this device is ideal for such applications as kiosks, ATMs, assembly lines and point-of-sale devices.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MS-2204VHD-I000R MS 2204, Fixed Mount 1D/PDF417 Laser Scanner (Very High Density), Class 2, Rastering Laser (RAST), True RS-232 (No USB)
Information:   |  Specifications  |  Symbol's MS2204 page  |
Accessories:   |  Accessories/Options  |  Symbol MS2204 service contract  |

MS-2204VHD-I000R Details

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Rate: 640 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Image Sensor: Linear
  • Barcode Symbology Supported:
    • UPC/EAN
    • Code 128
    • UCC/EAN 128
    • Code 39
    • Code 93
    • Interleaved 2 of 5
    • Codabar
    • MSI
    • PDF 417
    • Micro PDF
    • RSS
    • Discrete 2 of 5
    • UPC/EAN
    • Code 128
    • UCC/EAN 128
    • Code 39
    • Code 93
    • Interleaved 2 of 5
    • Codabar
    • MSI
    • PDF 417
    • Micro PDF
    • RSS
    • Discrete 2 of 5
  • Maximum Scan Resolution: 4 mil
  • Depth of Field:
    • 1.90" - 3"@4 mil
    • 1.50" - 4.75"@6.60 mil
    • 3" - 5.75"@10 mil

General Information

  • Product Type: In-counter Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MS2204
  • Product Name: MiniScan MS2204 VHD Barcode Reader
  • Product Line: MiniScan

Physical Characteristics

  • Height: 1.6"
  • Width: 2.3"
  • Depth: 2.9"
  • Weight (Approximate): 4.73 oz

Interfaces/Ports

  • Host Interface: Serial

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • RoHS Compliant
    • Laser Classification:
    • CDRH Class II
    • IEC Class 2
    • Electrical Safety:
    • Certified to UL1950
    • CA C22-2 NO950 ENG60950/IEC950
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B European Union EMC Directive
    • Australian SMA
  • Additional Information: Supported Interface:

Warranty

  • Limited Warranty: 1 Year

Power Description

  • Input Voltage: 5 V DC
Part # Description Availability Price Order
KT-65578-01R Symbol Bracket (Adjustable) for the MiniScan
Ships Free in 3-5 Days
$39.28
Retail $51
Save 22%
23844-00-00R Motorola US AC Line Cord, Grounded, 7.5', Three wire for power supplies (Part# KT-14000-148R) and (Part# 50-14000-241R) and (Part# PWRS-14000-148R). Ships Free Today $15.76

The Symbol MS-2204VHD-I000R is also known as Symbol Technologies SYM-MS2204VHDI000R or MS2204VHDI000R .
