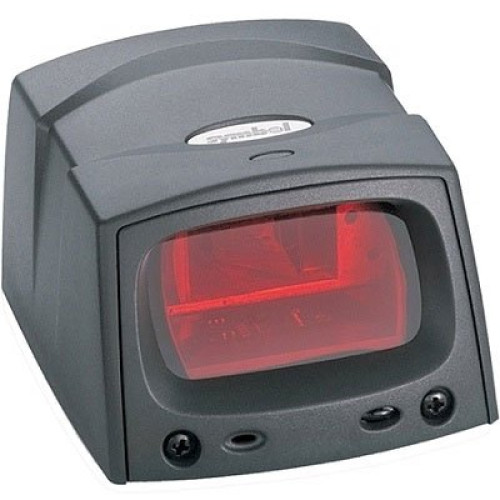

MS-2207-I000 - Symbol MS2207 Industrial Bar code Scanner

The Symbol MS2207 offers four scan patterns including omnidirectional for rapid capture of barcodes and symbols. This versatility minimizes the need for precise positioning of linear 1D barcodes, allowing even novice users to effectively scan data.The smart raster pattern excels at reading 2D symbols, even those that are poorly printed or low-contrast. Ruggedly constructed, this device is ideal for such applications as kiosks, ATMs, assembly lines and point-of-sale devices.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MS-2207-I000 MS 2207, Scanner (CL2, RAS, PDF417, 1D, USB Interface and Housed Scan Engine)
Information:   |  Specifications  |  Symbol's MS2207 page  |
Accessories:   |  Accessories/Options  |  Symbol MS2207 service contract  |

MS-2207-I000 Details

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern:
    • Linear
    • 2D Raster
  • Scan Rate: 640 scan/s
  • Connectivity Technology: Cable
  • Barcode Symbology Supported:
    • UPC/EAN
    • Code 128
    • UCC/EAN 128
    • Code 39
    • Code 93
    • Discrete 2 of 5
    • Codabar
    • MSI
    • PDF 417
    • Micro PDF
    • RSS
    • Composite Codes
    • UPC/EAN
    • Code 128
    • UCC/EAN 128
    • Code 39
    • Code 93
    • Discrete 2 of 5
    • Codabar
    • MSI
    • PDF 417
    • Micro PDF
    • RSS
    • Composite Codes

General Information

  • Product Type: In-counter Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MS2207
  • Product Name: MiniScan MS2207 Barcode Reader
  • Product Line: MiniScan

Physical Characteristics

  • Height: 1.6"
  • Width: 2.3"
  • Depth: 2.9"
  • Weight (Approximate): 4.73 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Certifications & Standards: Environmental Sealing:
  • Additional Information:
    • Supported Interfaces:
    • USB
    • TTL level RS-232

Warranty

  • Limited Warranty: 1 Year

Power Description

  • Input Voltage: 5 V DC
Part # Description Availability Price Order
KT-65578-01R Symbol Bracket (Adjustable) for the MiniScan
Ships Free in 3-5 Days
$39.28
Retail $51
Save 22%
25-58923-01R Symbol Cable Assembly for the MS3207, USB, R/A Ships Free Today $24.35
23844-00-00R Motorola US AC Line Cord, Grounded, 7.5', Three wire for power supplies (Part# KT-14000-148R) and (Part# 50-14000-241R) and (Part# PWRS-14000-148R). Ships Free Today $15.76

The Symbol MS-2207-I000 is also known as Symbol Technologies SYM-MS2207I000 or MS2207I000 .
