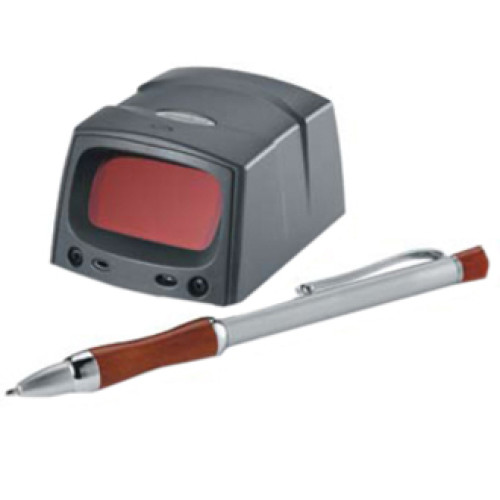

MS-2207VHD-I000R - Symbol MS2207 Industrial Bar code Scanner

The Symbol MS2207 offers four scan patterns including omnidirectional for rapid capture of barcodes and symbols. This versatility minimizes the need for precise positioning of linear 1D barcodes, allowing even novice users to effectively scan data.The smart raster pattern excels at reading 2D symbols, even those that are poorly printed or low-contrast. Ruggedly constructed, this device is ideal for such applications as kiosks, ATMs, assembly lines and point-of-sale devices.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MS-2207VHD-I000R MS 2207, Housed Scan Engine, Fixed Mount Scanner: CL 2, RAS, PDF417/1D. Cable not included. See accessories.
Information:   |  Specifications  |  Symbol's MS2207 page  |
Accessories:   |  Accessories/Options  |  Symbol MS2207 service contract  |

MS-2207VHD-I000R Details

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern:
    • Linear
    • 2D Raster
  • Scan Rate: 640 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN
    • Code 128
    • UCC/EAN 128
    • Code 39
    • Code 93
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Codabar
    • MSI
    • UPC/EAN
    • Code 128
    • UCC/EAN 128
    • Code 39
    • Code 93
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Codabar
    • MSI
  • Depth of Field:
    • 1.50" - 6"@6.60 mil
    • 3.50" - 8"@10 mil
    • 3.50" - 9"@10 mil
    • 5.60" - 15"@15 mil

General Information

  • Product Type: In-counter Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: 2207VHD
  • Product Name: 2207VHD Barcode Reader
  • Product Line: MiniScan

Physical Characteristics

  • Height: 1.6"
  • Width: 2.3"
  • Depth: 2.9"
  • Weight (Approximate): 4.73 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • Laser Classification:
    • CDRH Class II
    • IEC Class 2
    • Electrical Safety:
    • Certified to UL1950
    • CA C22-2 NO950 ENG60950/IEC950
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B European Union EMC Directive
    • Australian SMA
    • Environmental:
    • RoHS-compliant
  • Additional Information:
    • Supported Interfaces:
    • USBSerial

Warranty

  • Limited Warranty: 1 Year
Part # Description Availability Price Order
KT-65578-01R Symbol Bracket (Adjustable) for the MiniScan Ships Free Today $39.28
Retail $51
Save 22%
25-58923-01R Symbol Cable Assembly for the MS3207, USB, R/A Ships Free Today $24.35
23844-00-00R Motorola US AC Line Cord, Grounded, 7.5', Three wire for power supplies (Part# KT-14000-148R) and (Part# 50-14000-241R) and (Part# PWRS-14000-148R). Ships Free Today $15.76

The Symbol MS-2207VHD-I000R is also known as Symbol Technologies SYM-MS2207VHDI000R or MS2207VHDI000R .
