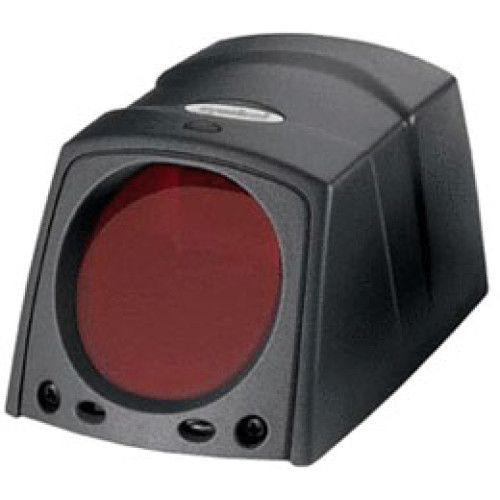

MS-3204-E000 - Symbol MS3204 Industrial Bar code Scanner

The MS3204 is a high-performance, fixed mount scanner offering a unique high-speed omnidirectional scan pattern to read barcodes quickly and accurately, minimizing the need for precise positioning of linear one-dimensional (1D) barcodes. The MS3204 provides an easy, cost-effective way to enhance existing OEM devices with 1D and two-dimensional (2D) scanning. The small form factor, combined with high-speed omnidirectional scanning, provides the perfect solution for any application requiring fast, accurate scanning, such as kiosks, ATMs, assembly lines and point-of-sale devices.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MS-3204-E000 MS 3204, MiniScan fixed-mount housed scan engine. Omnidirectional with RS-232 interface. Order cables separately.
Information:   |  Specifications  |  Symbol's MS3204 page  |
Accessories:   |  Accessories/Options  |  Symbol MS3204 service contract  |

MS-3204-E000 Details

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern:
    • Omni-directional
    • Linear
  • Scan Rate: 640 scan/s
  • Connectivity Technology: Cable
  • Barcode Symbology Supported:
    • PDF 417
    • Micro PDF
    • UPC/EAN
    • Code 39
    • Interleaved 2 of 5
    • Code 128
    • Codabar
    • MSI/PLESSEY
    • RSS
    • Composite Codes
    • PDF 417
    • Micro PDF
    • UPC/EAN
    • Code 39
    • Interleaved 2 of 5
    • Code 128
    • Codabar
    • MSI/PLESSEY
    • RSS
    • Composite Codes
  • Depth of Field:
    • 1" - 5.25"@6.60 mil - PDF417
    • 3.50" - 9.50"@10 mil - PDF417
    • 6.50" - 14"@15 mil - PDF417
    • 1" - 32"@55 mil - 1D

General Information

  • Product Type: In-counter Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MS3204
  • Product Name: MiniScan MS3204 Barcode Reader
  • Product Line: MiniScan

Physical Characteristics

  • Height: 2"
  • Width: 2.4"
  • Depth: 3.6"
  • Weight (Approximate): 4.97 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • Laser Classification:
    • CDRH Class II
    • IEC Class 2
    • Electrical Safety:
    • Certified to UL1950
    • CA C22-2 NO950 ENG60950/ IEC950
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B European Union EMC Directive
    • Australian SMA
    • Environmental:
    • ROHS-compliant

Warranty

  • Limited Warranty: 1 Year

The Symbol MS-3204-E000 is also known as Symbol Technologies SYM-MS3204E000 or MS3204E000 .
