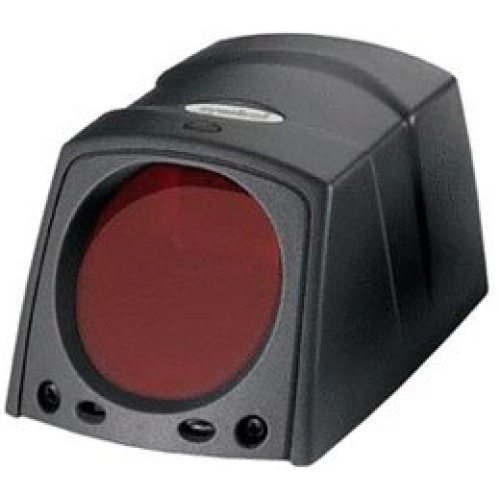

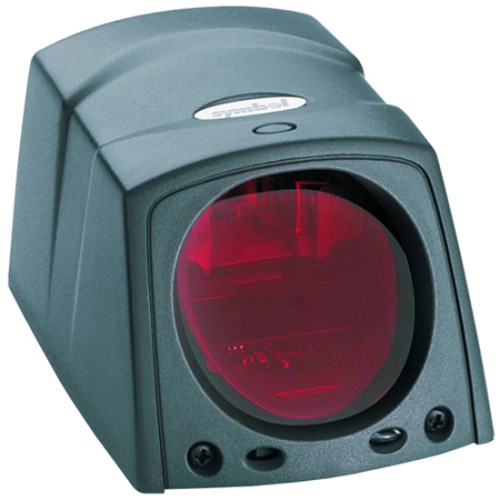

MS-3204-I000 - Symbol MS3204 Industrial Bar code Scanner

The MS3204 is a high-performance, fixed mount scanner offering a unique high-speed omnidirectional scan pattern to read barcodes quickly and accurately, minimizing the need for precise positioning of linear one-dimensional (1D) barcodes. The MS3204 provides an easy, cost-effective way to enhance existing OEM devices with 1D and two-dimensional (2D) scanning. The small form factor, combined with high-speed omnidirectional scanning, provides the perfect solution for any application requiring fast, accurate scanning, such as kiosks, ATMs, assembly lines and point-of-sale devices.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MS-3204-I000 MS 3204, MiniScan (Housed Scan Engine, CL 2 Omnidirectional and RS-232)
Information:   |  Specifications  |  Symbol's MS3204 page  |
Accessories:   |  Accessories/Options  |  Symbol MS3204 service contract  |

MS-3204-I000 Details

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Scan Rate: 640 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • PDF 417
    • Micro PDF417
    • UPC/EAN
    • Code 39
    • Interleaved 2 of 5
    • Code 128
    • Codabar
    • MSI/PLESSEY
    • PDF 417
    • Micro PDF417
    • UPC/EAN
    • Code 39
    • Interleaved 2 of 5
    • Code 128
    • Codabar
    • MSI/PLESSEY

General Information

  • Product Type: Desktop Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MS3204
  • Product Name: MS3204 Barcode Reader
  • Product Line: MiniScan

Physical Characteristics

  • Height: 1.9"
  • Width: 2.2"
  • Depth: 3.4"
  • Weight (Approximate): 4.40 oz

Interfaces/Ports

  • Host Interface: Serial

Other

  • Certifications & Standards:
    • Laser Classification:
    • CDRH Class II
    • IEC Class 2
    • Electrical Safety:
    • Certified to UL1950
    • CA C22-2 NO950 ENG60950/ IEC950
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B European Union EMC Directive
    • Australian SMA

Warranty

  • Limited Warranty: 1 Year

Power Description

  • Input Voltage: 5 V DC

The Symbol MS-3204-I000 is also known as Symbol Technologies SYM-MINISCANI000 or MS3204I000 .
