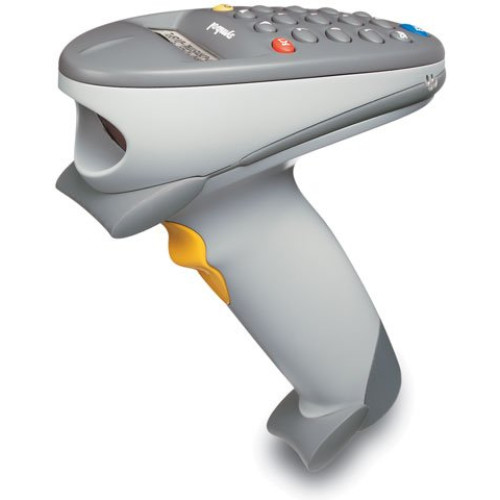

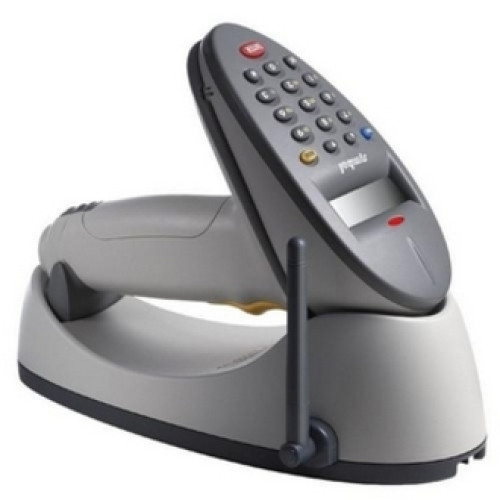

P470-SR1211100FB - Symbol P470 Bar code Scanner

Available in industrial and retail versions the P370 and P470 family of cordless scanners from Symbol Technologies handles demanding data management even in extreme environments. The futuristic handle-forward design was awarded a gold medal in the 1998 Industrial Design Excellence Awards (IDEA98) by Business Week magazine and the Industrial Design Society of America.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
P470-SR1211100FB P470, Scanner. Includes 2-line, 20-character display, standard 17 key keypad, 512KB flash memory, 2.4GHz narrowband, & battery. Order cradle, cradle-to-host cable, & power supply separately. See accessories.
Information:   |  Specifications  |
Accessories:   |  Accessories/Options  |  Symbol P470 service contract  |

P470-SR1211100FB Details

Technical Information

  • Form Factor: Handheld Scanner
  • Symbologies Supported:
    • Trioptic Code 39
    • UPC/EAN
    • Code 39
    • Code 93
    • Codabar
    • Interleaved 2 of 5
    • Code 128
    • EAN-128
    • Discrete 2 of 5
    • MSI/PLESSEY
    • Coupon Code
    • Code 39 Full ASCII
    • Bookland EAN
  • Scanner Type: Laser
  • Scan Rate: 35 Scans/sec
  • Interface Connectivity: Cordless
  • Cordless Range: 30m
  • Scan Pattern: Bi-directional
  • Battery Capacity: 1100 mAh

General Information

  • Manufacturer: Symbol
  • Product Line: Phaser
  • Product Name: Phaser P470 RF Retail Barcode Scanner

Physical Characteristics

  • Dimensions: 7.0" (177.8mm) x 9.2" (233.68mm) x 3.5" (88.9mm) - Scanner
  • Weight: 12 oz
  • Color: White

Agency Approvals

  • Agency Approvals:
    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • CDRH Class II
    • IEC Class 2
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 40°C (104°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95%

Warranty

  • Manufacturer Warranty: 1 Year(s)
Part # Description Availability Price Order
HP360-LI Global Technology Systems Symbol Replacement Battery, Phaser P360 / 370 / 460 / 470 Battery Replacement. OEM Part Numbers: (Part# 50-14000-079) / (Part# KT-BTYPL-01), Lithium-ion, 1500 mAh, 3.6V Ships Free Today $43.97
Retail $60
Save 26%
23844-00-00R Motorola US AC Line Cord, Grounded, 7.5', Three wire for power supplies (Part# KT-14000-148R) and (Part# 50-14000-241R) and (Part# PWRS-14000-148R). Ships Free Today $15.76

The Symbol P470-SR1211100FB is also known as Symbol Technologies SYM-P470SR12111FB or P470SR1211100FB .
