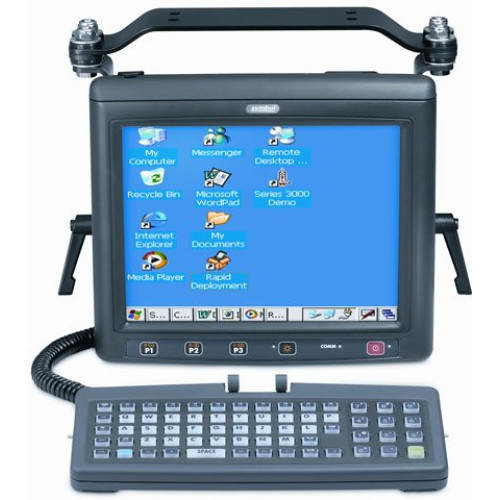

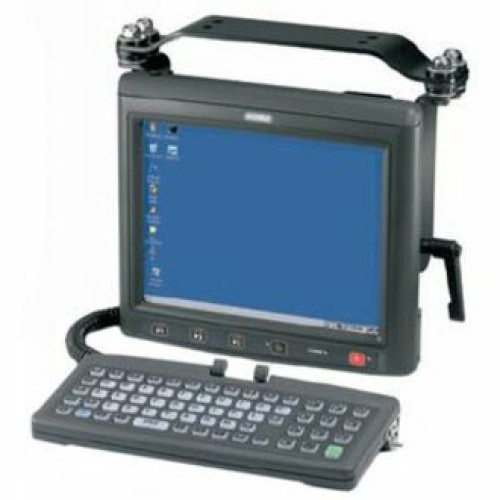

VC5090-MA0TMQGH66R - Symbol VC5090 Fixed/Vehicle Mount Data Terminal

The VC5090 Vehicle/Fixed-Mount Mobile Computer from Symbol Technologies combines rugged construction and high performance wireless networking to enable real-time data access and collection in the harshest environments. Industrial and military grade specifications for vibration, shock, temperature and sealing ensure reliable year-in and year-out performance - whether your workers are on a forklift, in the freezer, moving through the warehouse or at a fixed station. The VC5090 provides support for terminal emulation, browser-based and custom Windows CE applications that streamline warehouse operations, improve decision making, increase productivity and profitability.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order

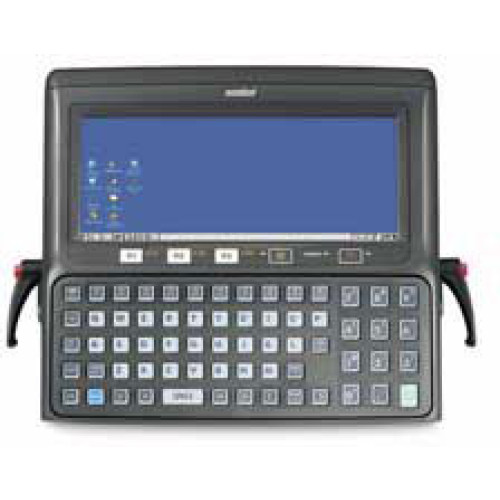

VC5090-MA0TMQGH66R VC 5090, Half screen, 10.5" 1/2 SVGA (800x320) color touch panel, integrated 64 key keyboard, Windows CE 5.0 Pro, 128MB RAM, 192MB Flash, Ships with mounting braket and bots, 9' power wiring harness with fuses/holders, screen protector, desiccant packs, Wavelink emulation software. FOR VEHICLES WITH 12VDC BATTERY.
Information:   |  Specifications  |  Symbol's VC5090 page  |
Accessories:   |  Accessories/Options  |  Symbol VC5090 service contract  |

VC5090-MA0TMQGH66R Details

General Information

  • Product Type: Vehicle Mount Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: VC5090
  • Product Name: VC5090 Vehicle Mount Computer

Technical Information

  • Connectivity Technology: Wireless

Physical Characteristics

  • Width: 12.2"
  • Depth: 5"
  • Length: 11.3"
  • Weight (Approximate): 16.31 lb

Interfaces/Ports

  • Interfaces/Ports:
    • RS-232 Serial
    • USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • VC5090 Vehicle Mount Computer
    • 9' Wiring Harness
    • Fuses/Holders
    • Mounting Bracket
    • Misc Mounting Bolts
    • Wavelink Emulation Software
    • Screen Protector
    • Desiccant Packs
    • VC5090 Vehicle Mount Computer
    • 9' Wiring Harness
    • Fuses/Holders
    • Mounting Bracket
    • Misc Mounting Bolts
    • Wavelink Emulation Software
    • Screen Protector
    • Desiccant Packs
  • Certifications & Standards:
    • EMC:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • EN 55022
    • EN 301 489-1
    • EN 301 489-17
    • RF:
    • FCC Part 15.247
    • FCC Part 15.205
    • FCC Part 15.209
    • FCC Part 15.203
    • FCC Part 15.407
    • FCC Part 15.207
    • EN 300 328
    • EN 301 893
    • RSS-210
    • ARIB STD-66
    • ARIB STD-33
    • T70
    • T71
    • Safety:
    • UL 60950-1
    • CSA C22.2 No. 60950-1
    • EN 60950-1
    • IEC 60950-1
  • Additional Information:
    • Expansion Slot: SD Memory Card
    • Power Supply: 12 VDC
    • Communication Options:
    • Voice(VoIP, Voice Picking)
    • Audio

Network & Communication

  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA Enterprise
    • Wi-Fi Certified
    • TKIP
    • WEP 40 bit
    • WEP 128 bit
    • 802.1
    • WPA Enterprise
    • Wi-Fi Certified
    • TKIP
    • WEP 40 bit
    • WEP 128 bit
    • 802.1
  • Wireless Technology:
    • Wi-Fi
    • Bluetooth

Display & Graphics

  • Touchscreen: Yes
  • Display Color: Color
  • Screen Size: 10.5"
  • Graphics Modes: SVGA

Environmental Conditions

  • Electrostatic Discharge (ESD):
    • 20 kV DC Air Discharge
    • 8 kV DC Contact Discharge

Keyboard/Keypad

  • Keyboard Form Factor: Integrated
  • Number of Keys: 64

Memory

  • Flash Memory: 192 MB
  • Standard Memory: 128 MB

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows
Part # Description Availability Price Order
TSP-US-MC-3 BCI Service Contracts, True Support contract 3-year - Mobile Computers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $60 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$60.00
SSE-VC509X-30 Symbol Service Contract - 3 year, Zebra OneCare Essential. Includes Comprehensive coverage. Includes coverage for keyboard.
Ships Free in 3-5 Days
$542.83
Retail $705.87
Save 23%

The Symbol VC5090-MA0TMQGH66R is also known as Symbol Technologies SYM-VC5090MA0TMQGH66 or VC5090MA0TMQGH66R .
