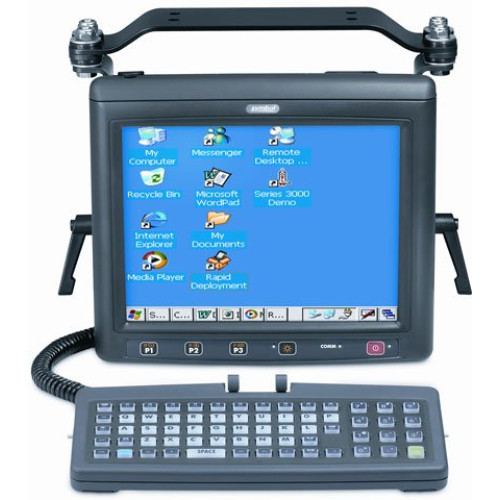

VC5090-MA0TMQGH6WR - Symbol VC5090 Fixed/Vehicle Mount Data Terminal

The VC5090 Vehicle/Fixed-Mount Mobile Computer from Symbol Technologies combines rugged construction and high performance wireless networking to enable real-time data access and collection in the harshest environments. Industrial and military grade specifications for vibration, shock, temperature and sealing ensure reliable year-in and year-out performance - whether your workers are on a forklift, in the freezer, moving through the warehouse or at a fixed station. The VC5090 provides support for terminal emulation, browser-based and custom Windows CE applications that streamline warehouse operations, improve decision making, increase productivity and profitability.

We respond to every email
Part # Description Availability Price Order
VC5090-MA0TMQGH6WR VC 5090, Half screen, 10.5" 1/2 SVGA (800x320) color touch screen, Windows CE 5.0 Pro, 128MB RAM, 192MB Flash, Ships with mounting braket with bolts, 9' power wiring harness with integrated power filter with fuses/holders, screen protector, desiccant packs and Wavelink emulation software. FOR ELECTRIC FORKLIFT WITH 24-48VDC BATTERY.
Information:   |  Specifications  |  Symbol's VC5090 page  |
Accessories:   |  Accessories/Options  |  Symbol VC5090 service contract  |

VC5090-MA0TMQGH6WR Details

Technical Information

  • Operating System: Windows CE Professional 5.0
  • Processor: Intel PXA270 XScale 624MHz
  • Vibration: MIL-STD-810F
  • Internal Heater: Yes
  • Keyboard: 64 Key QWERTY Integrated
  • Display: 10.5" Color 1/2 SVGA - Resistive Touch Screen

General Information

  • Manufacturer:
  • Product Name: VC5090 Vehicle/Fixed-Mount Mobile Computer

Physical Characteristics

  • Dimensions: 12.2" (310mm) x 11.28" (287mm) x 5.04" (128mm)
  • Weight: 16.31 lb (7 kg)


  • I/O Ports:
    • RS-232
    • USB


  • Data Collection Type: Wireless
  • Network Connectivity:
    • WLAN 802.11a/b/g
    • WPAN Bluetooth
  • Maximum RF Data Rate Supported: 54 Mbps
  • Antenna Connectors: Internal
  • Wireless Security:
    • WPA Enterprise
    • Wi-Fi Certified
    • TKIP
    • WEP 40 bit
    • WEP 128 bit
    • CCX
  • Frequency Band/Bandwidth: 2.4GHz to 5GHz

Environmental Conditions

  • Environmental Sealing: IP66
  • Temperature:
    • -30°C (-22°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Operating Non-condensing
  • Electrostatic Discharge (ESD):
    • 20kV Air Discharge
    • 8kV Contact Discharge


  • Additional Information:
    • Expansion Slot: SD Memory Card Communication Options: Voice(VoIP, voice picking) Audio
    • Expansion Slot: SD Memory CardCommunication Options:Voice(VoIP, voice picking)Audio
  • Package Contents:
    • VC5090 Vehicle Mount Computer 9' Wiring Harness Fuses/Holders Mounting Bracket Misc Mounting Bolts Wavelink Emulation Software Screen Protector Desiccant Packs
    • VC5090 Vehicle Mount Computer9' Wiring HarnessFuses/HoldersMounting BracketMisc Mounting BoltsWavelink Emulation SoftwareScreen ProtectorDesiccant Packs

Agency Approvals

  • Agency Approvals:
    • RoHS Compliance EMC: FCC Part 15 Class B ICES-003 Class B EN 55022 EN 301 489-1 EN 301 489-17 RF: FCC Part 15.247 FCC Part 15.205 FCC Part 15.209 FCC Part 15.203 FCC Part 15.407 FCC Part 15.207 EN 300 328 EN 301 893 RSS-210 ARIB STD-66 ARIB STD-33 T70 T71 Safety: UL 60950-1 CSA C22.2 No. 60950-1 EN 60950-1 IEC 60950-1
    • RoHS ComplianceEMC:FCC Part 15 Class BICES-003 Class BEN 55022EN 301 489-1EN 301 489-17RF:FCC Part 15.247FCC Part 15.205FCC Part 15.209FCC Part 15.203FCC Part 15.407FCC Part 15.207EN 300 328EN 301 893RSS-210ARIB STD-66ARIB STD-33T70T71Safety:UL 60950-1CSA C22.2 No. 60950-1EN 60950-1IEC 60950-1


  • RAM Memory: 128MB
  • Flash Memory: 192MB

Scanner Options

  • Scanner Option: External


  • Manufacturer Warranty: 1 Year(s) Limited
Part # Description Availability Price Order
25-71918-01R Symbol Cable, Assembly, 9 ft, Extended, Coiled. Connects LS34XX to the VC5090. Non-standard USB, call for more information. Ships Free Today $67.41
23844-00-00R Motorola US AC Line Cord, Grounded, 7.5', Three wire for power supplies (Part# KT-14000-148R) and (Part# 50-14000-241R) and (Part# PWRS-14000-148R). Ships Free Today $15.76
BTRY-VC50IAB00 Symbol VC5090 UPS (Uninterruptable Power supply) Lithium-ion Battery Ships Free Today $128.98
25-71924-01R Symbol Cable assembly, Rugged DB-9 Male, For the VC5000
Ships Free in 3-5 Days
25-71920-01R Symbol Cable, AC Brick Power, Works with Power supply (Part# 50-14000-241), Compatible with VC5090.
Ships Free in 3-5 Days
25-71915-01R Symbol Cable Assembly, VC5000, USB A Series, Host Ships Free Today $78.73
25-71914-01R Symbol Cable Assembly (Active Sync) for the VC5000
Ships Free in 3-5 Days
TSP-US-MC-3 BCI Service Contracts, True Support contract 3-year - Mobile Computers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $60 per year for 3 years, billed annually.
Ships Free in 3-5 Days
SSE-VC509X-30 Symbol Service Contract - 3 year, Zebra OneCare Essential. Includes Comprehensive coverage. Includes coverage for keyboard.
Ships Free in 3-5 Days
Retail $705.87
Save 23%

The Symbol VC5090-MA0TMQGH6WR is also known as Symbol Technologies SYM-VC5090MA0TLQGH6R or VC5090MA0TMQGH6WR .
