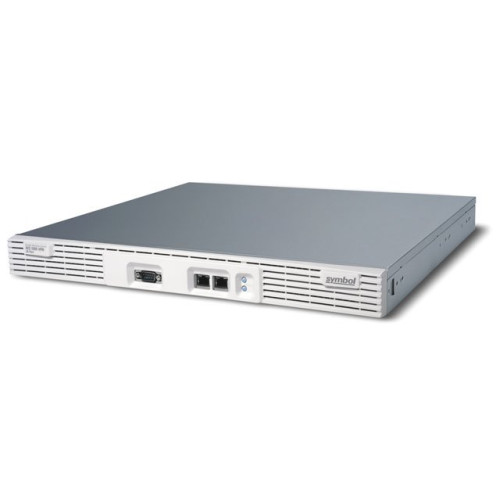

WS-5100-18-WWR - Symbol WS5100 Wireless Controller

The Symbol WS5100 simplifies day-to-day operations with unified management of hardware, software configuration, and network policies. Centralized management also enables the automatic distribution of configurations to all Access Ports - eliminating the need and the associated costs to configure and manage each access point. Adding capacity and new functionality is easier and less expensive than an access point-based wireless LAN. The Symbol WS5100 enables your wireless network to scale easily as your company grows, with a slim 1RU form factor that fits easily into any standard network equipment rack. Each WS5100 supports up to 48 Access Ports and 32 WLANs.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
WS-5100-18-WWR WS5100, Wireless Switch Kit (18 Ports, Software VS 3.0).
Information:   |  Specifications  |
Accessories:   |  No accessories available  |  Symbol WS5100 service contract  |

WS-5100-18-WWR Details

General Information

  • Manufacturer: Motorola
  • Product Name: WS-5100 Wireless Switch

Physical Characteristics

  • Form Factor: 1U
  • Dimensions: 1.73" (44mm) x 16.8" (427mm) x x 15.93" (405mm)
  • Weight: 13.75 lb (6.24 kg)
  • Interfaces:
    • RS-232 Console
    • 6 x RJ-45 10/100/1000 Ethernet
  • Additional Information: License version v.3.0

Wireless Network

  • Wireless Security: WPA2-CCMP802.11iRADIUSIPSec VPN GatewaySecure Guest Access ProvisioningAdvanced wireless intrusion detectionDES 3DESAESAuthentication:Access Control Lists (ACLS) 802.1x/EAP-transport layer security (TLS) Tunneled transportlayer security (TTLS) Protected EAP (PEAP) Kerberos Integrated AAA/RADIUS server with native support for EAP-TTLS and EAP-PEAP Transport encryption: WEP 40/128 (RC4) KeyGuard WPA-TKIP WPA2-CCMP (AES) WPA2-TKIP
  • WLAN Features:
    • Supports 32 WLANs
    • Multi-ESS/BSSID Traffic Segmentation
    • VLAN to ESSID Mapping
    • Power Save Protocol Polling
    • Pre-emptive Roaming
    • Congestion Control With Bandwidth Allocation
    • 18 Ports
    • Load Balancing
  • Packet Filtering:
    • L2/3/4 Stateful Packet Analysis
    • Network Address Translation (NAT)
  • Optimized Wireless QoS:
    • 802.11 Traffic Prioiritization
    • Power Save Protocol (PSP) Integration
    • Layer 1-4 Packet Classification
    • 802.1p VLAN Priority
    • DiffServ/TOS
  • Management:
    • Authentication - Radius Client
    • Command Line Interface (Serial, Telnet)
    • Command Line Interface: Telnet, SSH, Serial port
    • Secure Web Based GUI (SSL)
    • Telnet
    • SNMP
    • TFTP Client
    • MIBs - MIB-II

Environmental Conditions

  • Temperature:
    • 10°C (50°F) to 35°C (95°F) Operating
    • -40°C (-40°F) to 65°C (149°F) Storage
  • Humidity:
    • 5 to 85% Operating Non-condensing
    • 5 to 95% Storage Non-condensing
  • Altitude:
    • 50 To 10000ft - Operating
    • 50 To 35000ft - Storage

Packet Forwarding

  • Options:
    • 802.1D-1999 Ethernet Bridging
    • 802.11 - 802.3 Bridging
    • 802.1Q VLAN Tagging & Trunking
    • Proxy ARP
    • IP Packet Steering-redirection

Power Description

  • Input Voltage Range: 100V AC to 240 V AC
  • Current:
    • 6A @ 115V AC - Input
    • 3A @ 230V AC - Input

Agency Approvals

  • Agency Approvals: IEEE 802.11iFCCIndustry CanadaCE VCCI C-Tick BSMIUL 1950 cULVDE GS DENAN CB CertRoHS
Part # Description Availability Price Order
SXB-WS5100RX-20-R Symbol Service Plan, RENEWAL-SERVICE FROM THE START Advanced Exchange BRONZE 2 YR
Ships Free in 3-5 Days
$494.00

The Symbol WS-5100-18-WWR is also known as Symbol Technologies SYM-WS510018WWR or WS510018WWR .
