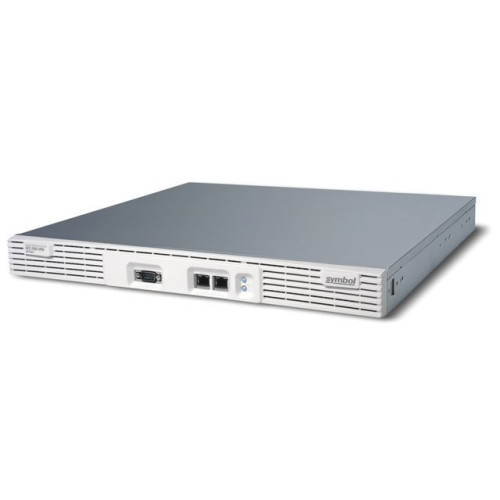

WS-5100-48-WWR - Symbol WS5100 Wireless Controller

The Symbol WS5100 simplifies day-to-day operations with unified management of hardware, software configuration, and network policies. Centralized management also enables the automatic distribution of configurations to all Access Ports - eliminating the need and the associated costs to configure and manage each access point. Adding capacity and new functionality is easier and less expensive than an access point-based wireless LAN. The Symbol WS5100 enables your wireless network to scale easily as your company grows, with a slim 1RU form factor that fits easily into any standard network equipment rack. Each WS5100 supports up to 48 Access Ports and 32 WLANs.

We respond to every email
Part # Description Availability Price Order
WS-5100-48-WWR WS5100, Wireless Switch Kit (48 Ports, Software VS 3.0).
Information:   |  Specifications  |
Accessories:   |  No accessories available  |  Symbol WS5100 service contract  |

WS-5100-48-WWR Details

Technical Information

  • Wireless Security:
    • WEP 40-bit/128-bit
    • WPA2-CCMP (AES)
    • WPA-TKIP
    • IEEE 802.1x
    • EAP-TLS
    • EAP-TTLS
    • EAP-PEAP

General Information

  • Product Type: Wireless LAN Controller
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: WS-5100
  • Product Name: Symbol WS5100 48-Port Wireless LAN Controller

Physical Characteristics

  • Compatible Rack Unit: 1U
  • Height: 1.7"
  • Depth: 15.9"
  • Form Factor: Rack-mountable
  • Weight (Approximate): 13.75 lb


  • Gigabit Ethernet Port: Yes
  • Number of Network (RJ-45) Ports: 2
  • Management Port: Yes

Management & Protocols

  • Management:
    • IEEE 802.1p QoS
    • IEEE 802.1q-VLAN tagging
    • DHCP
    • CLI
    • Telnet
    • SNMP v/ v2/v3)
    • Syslog


  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Additional Information:
    • Supports upto 48 AP300 Access Points
    • Real Time Locationing System (RTLS)
    • WMM-power save with admission control
    • 802.11-802.3 bridging
    • 802.1D-1999 Ethernet bridging

Power Description

  • Input Voltage:
    • 115 V AC
    • 230 V AC

The Symbol WS-5100-48-WWR is also known as Symbol Technologies SYM-WS510048WWR or WS510048WWR .
