Photo of Symbol WS-5100-R141-RS-WW Symbol logo

Symbol WS5100

Wireless Switch (V 1.4.1, Redundant Standby).

Wireless Controller
This part is replaced by WS-5100-R210-RSWWR.
Call for Details

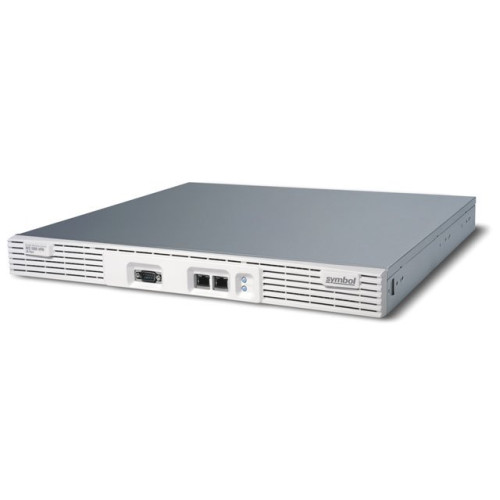

Symbol WS5100 Wireless Controller

The Symbol WS5100 simplifies day-to-day operations with unified management of hardware, software configuration, and network policies. Centralized management also enables the automatic distribution of configurations to all Access Ports - eliminating the need and the associated costs to configure and manage each access point. Adding capacity and new functionality is easier and less expensive than an access point-based wireless LAN. The Symbol WS5100 enables your wireless network to scale easily as your company grows, with a slim 1RU form factor that fits easily into any standard network equipment rack. Each WS5100 supports up to 48 Access Ports and 32 WLANs.

Full specifications (PDF)

Manufacturer part number: WS-5100-R141-RS-WW

Technical Information

  • Wireless Security:
    • WPA2-CCMP
    • 802.11i
    • RADIUS
    • IPSec VPN Gateway
    • Secure Guest Access Provisioning
    • Advanced wireless intrusion detection
    • DES
    • 3DES
    • AES
    • Authentication:
    • Access Control Lists (ACLS)
    • Pre-shared keys (PSK)
    • 802.1x/EAP-transport layer security (TLS)
    • Tunneled transportlayer security (TTLS)
    • Protected EAP (PEAP)
    • Kerberos Integrated AAA/RADIUS server with native support for EAP-TTLS and EAP-PEAP
    • Transport encryption:
    • WEP 40/128 (RC4)
    • KeyGuard
    • WPA-TKIP
    • WPA2-CCMP (AES)
    • WPA2-TKIP

General Information

  • Product Type: Wireless LAN Controller
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: WS-5100
  • Product Name: WS-5100 Wireless Switch

Physical Characteristics

  • Compatible Rack Unit: 1U
  • Height: 1.7"
  • Depth: 15.9"
  • Form Factor: Rack-mountable
  • Weight (Approximate): 13.75 lb


  • Gigabit Ethernet Port: Yes
  • Management Port: Yes
