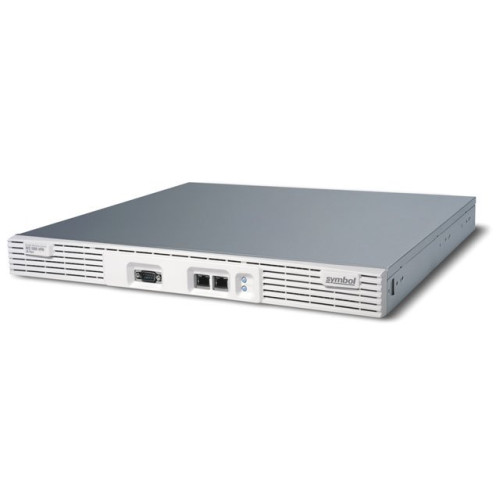

WS-5100-R143-12-WW - Symbol WS5100 Wireless Controller

The Symbol WS5100 simplifies day-to-day operations with unified management of hardware, software configuration, and network policies. Centralized management also enables the automatic distribution of configurations to all Access Ports - eliminating the need and the associated costs to configure and manage each access point. Adding capacity and new functionality is easier and less expensive than an access point-based wireless LAN. The Symbol WS5100 enables your wireless network to scale easily as your company grows, with a slim 1RU form factor that fits easily into any standard network equipment rack. Each WS5100 supports up to 48 Access Ports and 32 WLANs.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
WS-5100-R143-12-WW WS5100, Wireless Switch (V 1.4.3, 12 ports).
Information:   |  Specifications  |
Accessories:   |  No accessories available  |  Symbol WS5100 service contract  |

WS-5100-R143-12-WW Details

General Information

  • Manufacturer: Symbol
  • Product Name: WS5100 High Performance Overlay Wireless Switch

Physical Characteristics

  • Dimensions: 1.73" (44mm) x 16.89" (429mm) x 15.93" (405mm)
  • Weight: 13.75 lb (6.24 kg)
  • Interfaces:
    • 1 x RS-232 Console
    • 2 x RJ-45 10/100/1000 Ethernet
  • Additional Information:
    • Software Version v1.4.3
    • Access Ports AP100 (IEEE 802.11b)
    • AP200 (IEEE 802.11a/b)
    • AP300 (IEEE 802.11a/b/g ready)
    • Access Points
    • AP3021
    • AP4121

Wireless Network

  • Wireless Security:
    • AES
    • WPA
    • TKIP
    • WPA2
    • Kerberos
    • WTLS VPN
    • WPA-TKIP
    • KeyGuard
    • WEP: 40/128-bit
    • IEEE 802.1x/EAP
    • Protected EAP (PEAP)
    • Pre-Shared Keys (PSK)
    • Access Control Lists (ACLS)
    • Access Control Lists (ACLs)
    • Transport Layer Security (TLS)
    • Tunneled Transport Layer Security (TTLS)
    • VLAN support provides complete control of broadcast traffic
    • Kerberos and Certificate Based Public Key Infrastructure (PKI)
    • L2/3/4 Stateful Packet Analysis: Network Address Translation (NAT)
  • WLAN Features: 12 Ports
  • Packet Filtering: L2/3/4 Stateful Packet Analysis
  • Optimized Wireless QoS: Layer 1-4 Packet Classification
  • Management:
    • Command Line Interface (Serial, Telnet)
    • SNMP v1/v2
    • TFTP Client
    • Secure Web Based GUI (SSL)
    • SNMP Traps - 40+ User Configurable Options
    • DHCP - Client/Server/Relay
    • MIBs - MIB-II

Agency Approvals

  • Agency Approvals:
    • CE
    • VCCI
    • C-Tick
    • BSMI
    • UL 1950
    • CB Cert
    • VDE GS
    • IEEE 802.11i
    • IEEE 802.1x
    • IEEE 802.11a
    • IEEE 802.11b
    • IEEE 802.11g
    • cUL (Canada)
    • DENAN (Japan)
    • Industry Canada
    • FCC (Art.15, part B)

Environmental Conditions

  • Temperature:
    • 10°C (50°F) to 35°C (95°F) Operating
    • -40°C (-40°F) to 65°C (149°F) Storage
  • Humidity:
    • 5 to 85% Operating Non-condensing
    • 5 to 95% Storage Non-condensing
  • Altitude:
    • 50 To 10000ft - Operating
    • 50 To 35000ft - Storage

Additional Features

  • Features:
    • Complete encryption suite ensures privacy of data during transmission
    • Automatically selects the best channel based on noise and signal properties
    • Complete authentication suite validates user identity and authorizes network access

Power Description

  • Input Voltage Range: 100V AC to 240 V AC

Warranty

  • Manufacturer Warranty: 1 Year(s)
