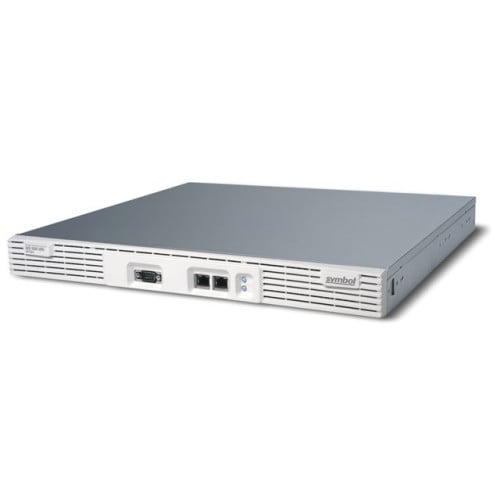

WS-5100-R210-06WWR - Symbol WS5100 Wireless Controller

The Symbol WS5100 simplifies day-to-day operations with unified management of hardware, software configuration, and network policies. Centralized management also enables the automatic distribution of configurations to all Access Ports - eliminating the need and the associated costs to configure and manage each access point. Adding capacity and new functionality is easier and less expensive than an access point-based wireless LAN. The Symbol WS5100 enables your wireless network to scale easily as your company grows, with a slim 1RU form factor that fits easily into any standard network equipment rack. Each WS5100 supports up to 48 Access Ports and 32 WLANs.

Part # Description Availability Price Order
WS-5100-R210-06WWR WS5100, Wireless Switch (V 2.1, 6 Ports).
Information:   |  Specifications  |
Accessories:   |  No accessories available  |  Symbol WS5100 service contract  |

WS-5100-R210-06WWR Details

General Information

  • Manufacturer:
  • Product Line: WS-5100
  • Product Name: WS-5100 6-Port Wireless Switch

Physical Characteristics

  • Form Factor: 1U
  • Dimensions:
    • 43.9mm (2")429mm (17") x 404.6mm (16")
    • 43.9mm (2") x 429mm (17") x 404.6mm (16")
  • Weight: 13.75 lb (6.24 kg)
  • Interfaces:
    • 1 x RS-232 Console
    • 6 x 10/100/1000
  • Additional Information: Software Version 2.1 Supports up to 48 Access Ports and 32 WLANs Automatically selects the best channel based on noise and signal properties

Wireless Network

  • Wireless Security: WPA-TKIP KeyGuard MCM WPA2 Pre-Shared Keys (PSK) WTLS VPN Access Control Lists (ACLs) Kerberos and Certificate Based Public Key Infrastructure (PKI) Multi-ESS/BSSID traffic segmentation VLAN to ESSID mapping IEEE 802.1x/EAP Transport Layer Security (TLS) Tunneled Transport Layer Security (TTLS) Protected EAP (PEAP) WEP 40/128 (RC4) AES
  • WLAN Features: 6 Ports
  • Packet Filtering:
    • Network Address Translation (NAT)
    • L2/3/4 Stateful Packet Analysis
  • Management:
    • Command Line Interface (Serial, Telnet)
    • Secure Web Based GUI (SSL)
    • SNMP v1/v2
    • Syslog
    • TFTP Client
    • Simple Network Time Protocol (SNTP)
    • Text-Based Switch Configuration Files
    • DHCP - Client/Server/Relay
    • Authentication - Radius Client
    • Wireless Switch specific monitoring and configuration

Environmental Conditions

  • Temperature:
    • 10°C (50°F) to 35°C (95°F) Operating
    • -40°C (-40°F) to 65°C (149°F) Storage
  • Humidity:
    • 5 to 85% Operating Non-condensing
    • 5 to 95% Storage Non-condensing
  • Altitude:
    • 16 To 3048m - Operating
    • 16 To 10600m - Storage

Power Description

  • Input Voltage Range: 100V AC to 240 V AC
  • Frequency Band/Bandwidth:
    • 2.4GHz
    • 5GHz
  • Current:
    • 6A @ 115V AC -
    • 3A @ 230V AC -

Agency Approvals

  • Agency Approvals: IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11i IEEE 802.1x IEEE 802.1Q IEEE 802.1p Safety Certifications: FCC (Art.15, part B) Industry Canada CE VCCI C-Tick BSMI EMI Compliance: UL 1950 cUL (Canada) VDE GS DENAN (Japan) CB Cert


  • Manufacturer Warranty: 1 Year(s)
Part # Description Availability Price Order
ML-1499-50JK-01R Symbol 50 ft. Low-Loss coaxial cable jumper: N Male to N Male with 2 connector seal kits - RG213/U Ships Free Today $184.75
Retail $255
Save 27%
ML-1499-25JK-01R Symbol 25 ft. Low-Loss coaxial cable jumper: N Male to N Male with 2 connector seal kits - RG213/U Ships Free Today $125.92
Retail $185
Save 31%
ML-1499-RBNCA2-01R Symbol Cable, 12 Jumpers, N Male to RBN Female Ships Free Today $56.89
23844-00-00R Motorola US AC Line Cord, Grounded, 7.5', Three wire for power supplies (Part# KT-14000-148R) and (Part# 50-14000-241R) and (Part# PWRS-14000-148R). Ships Free Today $15.70
SXB-WS5100RX-20-R Symbol Service Plan, RENEWAL-SERVICE FROM THE START Advanced Exchange BRONZE 2 YR Ships Free Today $380.92
ML-5299-WPNA1-01R Symbol Wall Mount Panel Antenna with Articulating Mount: RP-SMA Male Ships Free Today $171.16
Retail $245
Save 30%
ML-5299-PTA1-01R Symbol Antenna, 5.5GHz, PTCH, 0 dBi, Cable 36, SMARP-F Ships Free Today $87.97
Retail $125
Save 29%
ML-5299-HPA1-01R Symbol 5 GHz (802.11a) Antenna, In/Outdoor Omnidirectional (Gain: 5dBi). Ships Free Today $114.94
Retail $165
Save 30%
ML-5299-APA1-01R Symbol Omnidirectional Antenna (5.5 GHz, DP AJ, 2dBi, Cable). Ships Free Today $44.96
Retail $61
Save 26%
ML-2499-SD3-01R Symbol Antenna (2.4 GHz, Omnidirectional, 3 dBi, Ceiling-Surface Mount). Requires adapter cable (Part# 25-72178-01), not included. Ships Free Today $87.97
Retail $125
Save 29%
ML-2499-PNAHD-01R Symbol ML-2499-PNAHD-01R Indoor 55┬░Directional Panel: RP-BNC Male Ships Free Today $87.97
Retail $125
Save 29%
ML-2499-BPNA3-01R Symbol Antenna, S24, Panel, 13.5 dBi, Cable 12, TY Ships Free Today $272.96
Retail $375
Save 27%
ML-2499-5PNL-72-N Symbol Outdoor 135┬░ Panel Antenna: N Male Connector Ships Free Today $170.00
ML-2499-11PNA2-01R Symbol 97┬░ Sector Panel: RP-BNC Male Ships Free Today $267.06
Retail $365
Save 26%
ML-1499-SD3MK-01R Symbol Kit, Antenna Mount for ML-2499-SD3-01 Ships Free Today $20.60
ML-1499-RBNCA1-01R Symbol Antenna Kit (Jumper, 1 Foot, Female - RBN Cable Adapter). Ships Free Today $56.89
ML-1499-LAK2-01R Symbol Antenna Kit (Lightning ARSTR, Male - Male - Barrel). Ships Free Today $125.92
Retail $185
Save 31%
ML-1499-100JK-01R Symbol Kit: Antenna Jumper, 100', N MALE-N MALE, 2 Connection Ships Free Today $325.70
Retail $475
Save 31%

The Symbol WS-5100-R210-06WWR is also known as Symbol Technologies SYM-WS5100R21006WWR or WS5100R21006WWR .
