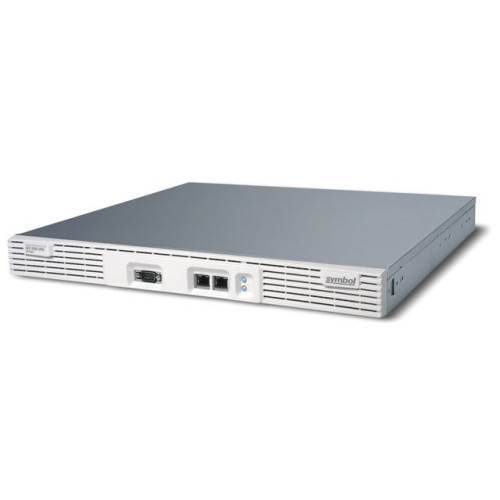

Photo of Symbol WS-5100-R210-RSWWR Symbol logo

Symbol WS5100

Wireless Switch (V 2.1, Redundant Standby).

This part is replaced by RFS-6010-100R0-WR.
Call for Details
Ships in 24-48 hours



Symbol WS5100 Wireless Switch

The Symbol WS5100 Wireless Switch redefines the standard for enterprise class wireless networks, delivering extensive functionality, security, scalability and management at a much lower total cost of ownership than first-generation access point-based networks. By centralizing intelligence that was previously distributed throughout a wireless network via access points, the WS5100 wireless switch architecture delivers an unparalleled level of wireless LAN control, performance and management simplicity.

Full specifications (PDF)

Manufacturer part number: WS-5100-R210-RSWWR

General Information

  • Manufacturer:
  • Product Line: WS-5100
  • Product Name: WS-5100 Wireless Switch

Physical Characteristics

  • Form Factor: 1U
  • Dimensions:
    • 43.9mm (2")429mm (17") x 404.6mm (16")
    • 43.9mm (2") x 429mm (17") x 404.6mm (16")
  • Weight: 13.75 lb (6.24 kg)
  • Interfaces: 1 x RS-232 Console
  • Additional Information: Redundant Software Version 2.1 Supports up to 48 Access Ports and 32 WLANs Automatically selects the best channel based on noise and signal properties

Wireless Network

  • Wireless Security: WEP WPA-TKIP KeyGuard MCM WPA2 WTLS VPN Access Control Lists (ACLs) Kerberos and Certificate Based Public Key Infrastructure (PKI) Multi-ESS/BSSID traffic segmentation VLAN to ESSID mapping IEEE 802.1x/EAP Transport Layer Security (TLS) Tunneled Transport Layer Security (TTLS) Protected EAP (PEAP) WEP 40/128 (RC4) AES
  • WLAN Features: Supports 32 WLANs
  • Packet Filtering:
    • Network Address Translation (NAT)
    • L2/3/4 Stateful Packet Analysis
  • Management:
    • Command Line Interface (Serial, Telnet)
    • Secure Web Based GUI (SSL)
    • SNMP v1/v2
    • Syslog
    • TFTP Client
    • Simple Network Time Protocol (SNTP)
    • Text-Based Switch Configuration Files
    • DHCP - Client/Server/Relay
    • Authentication - Radius Client
    • Wireless Switch specific monitoring and configuration

Environmental Conditions

  • Temperature:
    • 10°C (50°F) to 35°C (95°F) Operating
    • -40°C (-40°F) to 65°C (149°F) Storage
  • Humidity:
    • 5 to 85% Operating Non-condensing
    • 5 to 95% Storage Non-condensing
  • Altitude:
    • 16 To 3048m - Operating
    • 16 To 10600m - Storage

Power Description

  • Input Voltage Range: 100V AC to 240 V AC
  • Frequency Band/Bandwidth:
    • 2.4GHz
    • 5GHz
  • Current:
    • 6A @ 115V AC -
    • 3A @ 230V AC -

Agency Approvals

  • Agency Approvals: IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11i IEEE 802.1x IEEE 802.1Q IEEE 802.1p Safety Certifications: FCC (Art.15, part B) Industry Canada CE VCCI C-Tick BSMI EMI Compliance: UL 1950 cUL (Canada) VDE GS DENAN (Japan) CB Cert

Warranty

  • Manufacturer Warranty: 1 Year(s)
