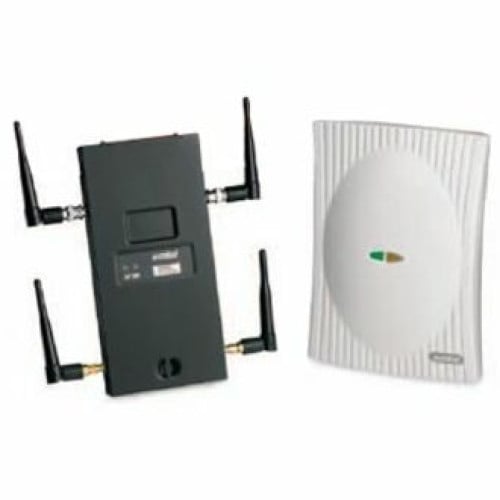

WSAP-5100-100-WWR - Symbol AP300 Access Point

The Symbol AP300 Access Port is a key component of Symbol Technologies' award winning Wireless Switch System, the second-generation wireless LAN architecture that does more, yet costs less. Working in conjunction with Symbol's Wireless Switch 2000, the AP300 Access Port delivers robust and feature rich IEEE 802.11a/b/g connectivity. Access Ports substantially reduce the cost of deploying, implementing and managing a wireless LAN, while significantly increasing features, functionality and security of the wireless LAN infrastructure.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
WSAP-5100-100-WWR AP300, Access Port (802.11a+b/g Access Port with with external antenna connection - antennas not included), black brushed steel housing.
Information:   |  Specifications  |  Symbol's AP300 page  |
Accessories:   |  Accessories/Options  |  Symbol AP300 service contract  |

WSAP-5100-100-WWR Details

Technical Information

  • Wireless LAN Standard: IEEE 802.11a/b/g
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.41 GHz
  • UNII Minimum Frequency: 5.15 GHz
  • Total Number of Antennas: 4
  • Wireless Transmission Speed: 54 Mbps
  • ISM Maximum Frequency: 2.47 GHz
  • UNII Maximum Frequency: 5.73 GHz
  • Antenna Connector:
    • RP-SMA Connector
    • BNC Connector
  • Wireless Security:
    • Basic Service Set Identifier (BSSID)
    • Extended Service Set ID (ESSID)
    • RADIUS
    • 802.1x-EAP
    • TKIP
    • AES

General Information

  • Product Type: Wireless Access Point
  • Product Series: AP300
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Name: AP300 Wireless Access Point
  • Packaged Quantity: 1

Physical Characteristics

  • Height: 1"
  • Depth: 9.3"
  • Form Factor:
    • Wall Mountable
    • Ceiling Mountable
  • Weight (Approximate): 1.60 lb

Interfaces/Ports

  • Fast Ethernet Port: Yes
  • Number of Network (RJ-45) Ports: 1

Other

  • Additional Information:
    • Load Balancing
    • Pre-Emptive Roaming
    • Rate Scaling
    • Frequency Range:
    • IEEE 802.1b/g:
    • 2.412 GHz to 2.462 GHz
    • IEEE 802.11a:
    • 5.150 GHz to 5.250 GHz (UNII -1)
    • 5.250 GHz to 5.350 GHz (UNII -2)
    • 5.725 GHz to 5.825 GHz (UNII -3)
Part # Description Availability Price Order
SXB-WSAP51XX-30 Symbol Service Plan, Service plan for AP300 - 3 years, Advanced Exchange Service from the Start (Symbol will ship a replacement unit overnight at no cost should any problem occur, including those caused by general wear and tear.)
Ships Free in 24-48 Hours
$32.40

The Symbol WSAP-5100-100-WWR is also known as Symbol Technologies SYM-WSAP5100100WWR or WSAP5100100WWR .
