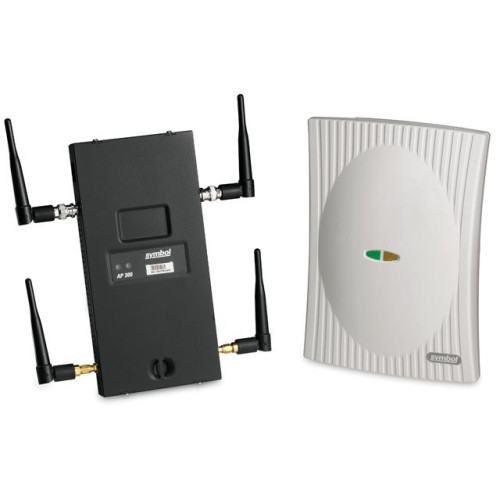

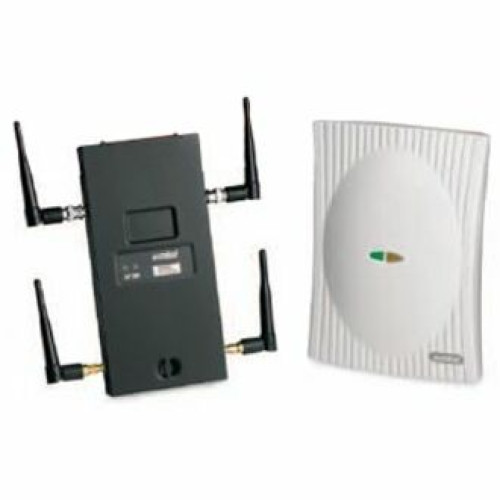

Symbol AP 300 Access Point
Part #: WSAP-5110-100-WWR | SKU: SYM29561

The Symbol AP 300 Access Port is a key component of Symbol Technologies' award winning Wireless Switch System, the second-generation wireless LAN architecture that does more, yet costs less. Working in conjunction with Symbol's Wireless Switch 2000, the AP 300 Access Port delivers robust and feature rich IEEE 802.11a/b/g connectivity. Access Ports substantially reduce the cost of deploying, implementing and managing a wireless LAN, while significantly increasing features, functionality and security of the wireless LAN infrastructure.

Symbol AP 300 Access Point

Part Details: AP 300, Access Port, 802.11a/b/g with internal antennas

Additional Information

Manufacturer Symbol
Model Name AP 300

Technical Information

  • Wireless LAN Standard: IEEE 802.11a/b/g
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.41 GHz
  • UNII Minimum Frequency: 5.15 GHz
  • Antenna Type: Dual Diversity Antenna
  • Wireless Transmission Speed: 54 Mbps
  • ISM Maximum Frequency: 2.47 GHz
  • UNII Maximum Frequency: 5.73 GHz
  • Wireless Security:
    • Basic Service Set Identifier (BSSID)
    • Extended Service Set ID (ESSID)
    • 802.1x-EAP
    • TKIP
    • AES

General Information

  • Product Type: Wireless Access Point
  • Product Series: AP300
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Name: AP300 Wireless Access Point
  • Packaged Quantity: 1

Physical Characteristics

  • Height: 2"
  • Depth: 9.5"
  • Form Factor:
    • Wall Mountable
    • Ceiling Mountable
  • Weight (Approximate): 1 lb

Interfaces/Ports

  • Fast Ethernet Port: Yes
  • Number of Network (RJ-45) Ports: 1

Other

  • Additional Information:
    • Wireless medium: Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM)
    • 2 LED indicators with multiple modes indicating 802.11a/802.11g Activity, Power, Adoption and Errors
    • Load Balancing
    • Pre-Emptive Roaming
    • Rate Scaling
    • Antenna Gain:
    • 0.0 dBi: 2.4 GHz
    • 3 dBi: 5.2 GHz
    • Frequency Range:
    • IEEE 802.11g:
    • 2.412 GHz to 2.462 GHz
    • IEEE 802.11a:
    • 5.150 GHz to 5.250 GHz (UNII -1)
    • 5.250 GHz to 5.350 GHz (UNII -2)
    • 5.725 GHz to 5.825 GHz (UNII -3)
