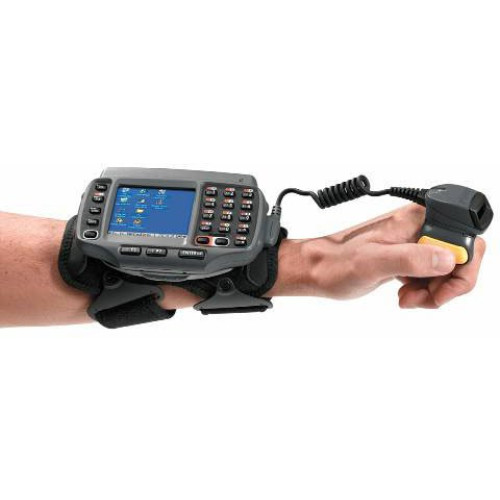

WT4090-N3S1GER - Symbol WT4000 Hand Held Computer

The WT4000 is the latest wearable data terminal from Symbol. The WT4000 features 802.11a/b/g wireless connectivity, the Windows CE operating system and a standard battery.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
WT4090-N3S1GER WT 4090, Wearable terminal with WLAN 802.11a/b/g, 3-tap keypad, 128/128MB, color non-touch screen, Windows CE 5.0 Professional, standard battery. Wrist mount & Scanner required. See accessories or (Part# WT4090-N2S1GER-KIT)
Information:   |  No specifications available  |
Accessories:   |  Accessories/Options  |  Symbol WT4000 service contract  |

WT4090-N3S1GER Details

Technical Information

  • Connectivity Technology: Wireless
  • Electrostatic Discharge (ESD):
    • 15 kV DC Air Discharge
    • 8 kV DC Direct Discharge
    • 8 kV DC Indirect Discharge
  • Drop Specification: 48" To Concrete

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: WT4090
  • Product Name: WT4090 Wearable Terminal

Physical Characteristics

  • Height: 1"
  • Width: 3.7"
  • Length: 5.7"
  • Weight (Approximate): 11.30 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • WT4090 Wearable Terminal
    • Lithium-Ion Battery
    • Regulatory Guide
    • Quick Start G
    • WT4090 Wearable Terminal
    • Lithium-Ion Battery
    • Regulatory Guide
    • Quick Start G
  • Certifications & Standards:
    • Electrical Safety:
    • Certified to UL60950-1
    • CSA C22.2 No. 60950-1
    • EN60950/IEC 60950-1
    • EMC:
    • FCC Part 15 Subpart B
    • ICES-003 Class B
    • EN 60601-1-2
    • EN 61000-3-2
    • EN 61000-3-3
    • CISPR 22 Class B
    • CISPR 24
    • RF:
    • FCC Parts 15.247
    • FCC Parts 15.407
    • FCC Parts 15.205
    • FCC Parts 15.207
    • FCC Parts 15.209
    • FCC Parts 15.203
    • EN 300 328
    • EN 301 893
    • RSS-100
    • RSS-210
    • ARIB STD-66 & 33
    • ARIB STD-T70 & 71
  • Additional Information: OS Language: English

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • AES
    • LEAP
    • PEAP (MS-CHAP v2)
    • PEAP-TLS
    • TKIP
    • TLS
    • TTLS (CHAP)
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS-MD5
    • TTLS-PAP
    • WEP 40 bit
    • WEP 128 bit

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 2.8"
  • Display Color: Color
  • Screen Resolution: 320 x 240

Battery Information

  • Battery Capacity: 2330 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 520 MHz
  • Processor Type: XScale

Memory

  • Flash Memory: 128 MB
  • Standard Memory: 128 MB

Keyboard/Keypad

  • Keyboard Type: Alphanumeric
  • Number of Keys: 23

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows CE 5.0 Professional
Part # Description Availability Price Order
WT4090-WRIST-STARTER Symbol WT4090 USB Starter Kit (Wrist). Includes everything you need to run your WT4090: ring scanner, wrist mount kit, charging/communications cradle, USB cable, power supply and US line cord. Ships Free Today $825.50
SAC4000-4000CR Symbol Battery Charger (4-Slot, WRBL Terminal). Power supply(P/N PWRS-14000-148R) and line cord (P/N 23844-00-00R) sold separately. Ships Free Today $219.50
KT-41040-01R Symbol Replacement kit, Desiccant pack, RS309 or WS1200 Freezer
Ships Free in 3-5 Days
$14.28
H4090-LI Global Technology Systems Symbol Replacement Battery, Replacement Battery (for the Symbol WT4090 Wearable Scanners), OEM Part Number: (Part# BTRY-WT40IABOE). Ships Free Today $38.94
Retail $50
Save 22%
CRD4000-1000UR Symbol Cradle, Single-slot, USB, WRBL Terminal Ships Free Today $132.97
BTRY-WT40IAB0E Symbol Battery, 18650, 3.6V, 2330 mAh, NGW Ships Free Today $61.67
25-68596-01R Symbol MC67 Accessories, USB Client Communication Cable. USB A to Mini B. Ships Free Today $17.00
11-08062-02R Symbol Belt for Holster for MC30XX, MC31XX, MC90XX and WT40XX. Ships Free Today $28.37
RS507-IM20000STWR Motorola RS 507 Ring Imager, Hands-Free 2D Imager, 2-finger mounted barcode imager with manual trigger and standard capacity battery for cordless Bluetooth interface to supported mobile computer. Ships Free Today $776.53
Retail $1055
Save 26%
RS507-IM20000SNWR Motorola RS 507 Ring Imager, Hands-Free 2D Imager, 2-finger mounted barcode imager without manual trigger for auto-triggering using the Intelligent Sensing Technology (IST) with standard capacity battery for Bluetooth interface to supported mobile computers.
Ships Free in 3-5 Days
$776.53
Retail $1055
Save 26%
RS507-IM20000ENWR Motorola RS 507 Ring Imager, RS507 Hands-Free, 2D Imager Scanner, Bluetooth, No Trigger, Cordless, Extended Battery. Ships Free Today $794.92
Retail $1080
Save 26%
RS507-IM20000CTWR Motorola RS 507 Ring Imager, Hands-Free 2D Imager, 2-finger mounted barcode imager with manual trigger and corded adaptor to the WT4090 wearable terminal. Requires extended capacity battery for the WT4090. Ships Free Today $835.27
Retail $1135
Save 26%
50-16002-029R Motorola MC67 Accessories, DC Cable For Power Supply (P/N 50-14000-241R) Ships Free Today $33.37
Retail $41
Save 18%
23844-00-00R Motorola US AC Line Cord, Grounded, 7.5', Three wire for power supplies (Part# KT-14000-148R) and (Part# 50-14000-241R) and (Part# PWRS-14000-148R). Ships Free Today $15.76
TSP-US-MC-3 BCI Service Contracts, True Support contract 3-year - Mobile Computers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $60 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$60.00
SCE-WT4090-30 Symbol Service Contract - 3 year, Zebra OneCare Service Center Essential. Does not include Comprehensive coverage. Does not include coverage for Ring Scanner or cradle.
Ships Free in 3-5 Days
$340.05
Retail $441
Save 22%

The Symbol WT4090-N3S1GER is also known as Symbol Technologies SYM-WT4090N3S1GER or WT4090N3S1GER .
