| Part # |
Description |
Availability |
Price |
Order |
|
PPT2846-TRWZ0YUS |
PPT2846, 64MB RAM, 802.11b, monochrome display. Includes 1D scanner & battery. Order cradle separately. See accessories. |
Check Availability |
Call for Details |
|
PPT2846-TRBZ0YUS |
PPT2846, 64MB RAM, 802.11b, color display. Includes 1D scanner & battery. Order cradle separately. See accessories. |
Check Availability |
Call for Details |
|
PPT2846-BRWZ0YUS |
PPT2846, 64MB RAM, 802.11b, monochrome display. Includes 2D scanner & battery. Order cradle separately. See accessories. |
Check Availability |
Call for Details |

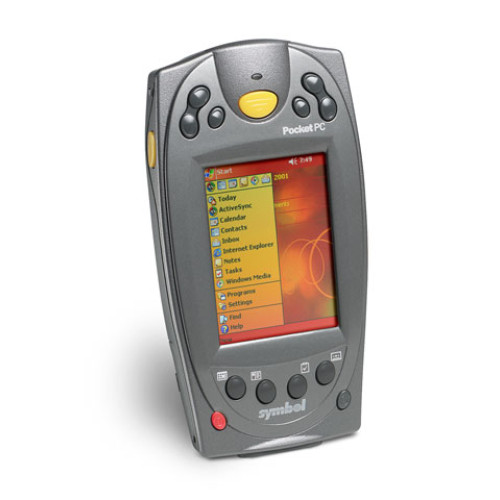

Symbol PPT2846 Details
A Pocket PC Device with Maximum Performance and Ruggedness
The PPT2846 , a member of the newest family of Pocket PC-based terminals from Symbol Technologies, combines the strengths of the Pocket PC platform with productivity-enhancing features that include bar code scanning and real-time wireless communication options. Designed with today's mobile worker in mind, the rugged PPT2846 is a productivity tool for business professionals, enabling the Power of Pocket PC to perform where and when it's needed.
Simple, Reliable and Powerful
The Pocket PC platform offers a simple, fast user interface, extensive Internet browsing capabilities, and powerful overall performance, and the PPT2846 transforms business activities, extending this familiar Windows-based platform from the traditional desktop setting to virtually anywhere. Symbol's rigorous quality requirements impart drop, sealing and temperature specifications that are unmatched by other Pocket PC devices. The rugged durability achieved allows the PPT2846 to withstand the wear and tear of everyday use in any business environment, from the office to the warehouse.
With its fully integrated bar code scanning, Wireless Local Area Network (WLAN) or Wireless Wide Area Network (WWAN) communication and Pocket PC functionality, the PPT2846 provides a complete, easy-to-use data management solution in a single device. Conveniently placed scan triggers and the ergonomic design of the PPT2846 enable simple one-handed data capture operation, and a high resolution 1/4 VGA display with responsive touch-screen technology further enhance the product's ease of use.
The PPT2846 utilizes the Intel® StrongARM SA 1110 processor, running at 206 MHz and comes with the processing power and memory capacity to meet any data or application need. It is fully compatible with 32-bit application development tools from Microsoft and third parties, and provides the standard PIM software and synchronization capabilities of the Pocket PC platform. An application-programming interface (API) from Symbol makes it simple to integrate bar code data capture and wireless communication into new or existing applications.
Mobility Improves Performance
The rugged, feature-rich PPT2846 product family helps increase productivity and efficiency in a host of industries. Warehouse personnel easily record inventory levels as shipments flow in and out. Service professionals can offer curbside check-in at hotels and more efficient table service at restaurants. Physicians and caregivers can access current patient records from anywhere in the hospital, while school administrators, teachers and staff can retrieve and update student records from anywhere on campus. The PPT2846 can do it all, right down to mobilizing price checking and inventory tasks in retail environments as well as package tracking throughout the shipping pipeline. From field service and sales force automation to route accounting or office management, the PPT2846 provides an ideal solution for mobile applications.
To find out how your business can benefit from Symbol's innovative products, contact any of the convenient locations listed on the back panel or visit us at www.symbol.com/mobile.
|
PPT2846 Features |
PPT2846 Benefits |
|
Microsoft Pocket PC platform |
Portable convenience and a familiar, flexible computing platform |
|
Rugged construction–sealed to IP54 standards with 4 ft./1.2m drop to concrete |
Operates in harsh environments |
|
WLAN or WWAN communication |
Anytime, anywhere information access |
|
Symbol's miniature scan engine |
High-performance scanning even in bright light |
|
64 MB RAM, 32 MB ROM |
Ample memory capacity for data or program storage |
|
1/4 VGA display |
Large, easy-to-read display |
|
Rechargeable lithium-ion battery |
Maximum usage between charges |
|
IrDA port |
Enables data transfer to peripherals such as printers |
|
Supports foreign languages |
The flexibility required to support applications worldwide |
|
PPT2846 Specification Highlights
|
| PPT2846 Physical Characteristics: |
|
|
Dimensions: |
7" L x 3.625" W x 1" H/177.8 mm L x 92 mm W x 25.4 mm D |
|
Weight (including battery): |
11.7 oz/333 gm (Batch Version) 12.9 oz/367 gm (Wireless Version) |
|
Drop Specification: |
4 ft / 1.2 m to concrete |
|
Display: |
1/4 VGA resolution (320 x 240 pixels) with 16-level grayscale, optional 64k color |
|
Battery: |
1550 mAh rechargeable lithium-ion |
|
Environmental Sealing: |
IP54 (windblown dust and rain) |
|
Operating Temperature: |
-4° to 122° F/-20° to 50° C (or better depending upon the application) |
|
Humidity: |
5% to 90% RH non-condensing |
|
Electrostatic Discharge (ESD): |
8 kVdc air; 4 kVdc contact |
|
|
PPT2846 Performance Characteristics |
|
|
CPU: |
Intel SA 1110 @ 206 MHz Processor |
|
Operating System: |
Microsoft Pocket PC 2002 |
|
Memory |
64 MB RAM/32 MB ROM |
|
Application Development: |
Fully compatible with Microsoft SDK for Pocket PCs, Symbol SDK available to support bar code scanning from http://devzone.symbol.com |
|
Communications: |
IrDA 1.1 |
|
|
Wireless Data Communications |
|
|
Wireless Local Area Network: |
Standards-based Spectrum24 IEEE 802.11 or 802.11b |
|
Data Rate: |
2 Mbps and 11 Mpbs |
|
Frequency Range: |
Country dependent: typically 2.4-2.5 Ghz |
|
Output Power: |
500 mW U.S.; 100 mW international |
|
Antenna: |
Internal |
|
Wireless Wide Area Network |
Optional CDPD, GSM or GPRS Network Connectivity |
|
Antenna: |
Internal (WLAN), External (WWAN) |
|
|
PPT2846 Peripherals and Accessories |
|
|
Cradles: |
1 slot serial charge cradle; 4 slot Ethernet charge cradle; Vehicle cradle, 4-Slot serial cradle |
|
Communication and Charging Cables: |
DEX cable; auto-charge cable; serial/charge cable; printer cables |
|
Magnetic Stripe Reader (MSR): |
Snap-on serial connection swipe reader attachment |
|
Keypad: |
Snap-on serial connection 35-key keypad |
|
Trigger handle: |
Snap-on serial connection pistol-grip scan trigger |
|
4-Slot Universal Battery Charger (UBC): |
Simultaneous charge of 1-4 batteries; requires adapters for PDT 8100 batteries |
|
Other Accessories: |
Snap-on land line modem; carrying case |
|
|
Electrical Safety: |
Certified to UL1950, CSA C22.2 No. 950, EN60950/IEC950 |
|
EMI/RFI: |
FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Australian SMA |
|
Laser Safety: |
CDRH Class II, IEC Class 2 |
|
Hazardous Locations: |
Certified to UL 913 and CAN/CSA C22.2 no. 157 for use in Class 1, Division 2, Groups A, B, C, D and Class 1 Division 1, Groups A,B,C,D Note: These specifications pertain to non-incendive and Intrinsically Safe (I-Safe) PPT2846 models only. Please contact our pre-sales team for details. |
|
The Symbol PPT2846
is also known as the
Symbol Technologies PPT2846
.
