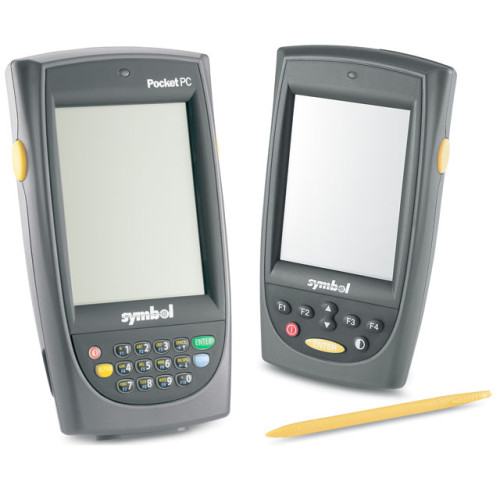

Symbol PPT8866 Details
Enterprise PDA
Small, Rugged and Packed with Power
The PPT8866 from Symbol Technologies combines superior data capture capability and wireless communications in a rugged handheld computer that is the smallest and lightest device in its class.
The PPT8866 puts powerful real-time information right in the pocket of the mobile worker and is available with software, peripherals, accessories and services that add compelling value to the operations of companies and enterprises worldwide.
| | | PPT8866: Product of the Year | |
The PPT8866 is ideal for use in many environments where up-to-date information is needed at the point of activity, including but not limited to:
- Retail
- Field Service
- Public Safety
- Healthcare
- Hospitality
Mission-Critical Applications
Designed for mobile workers and managers within the enterprise who require a rugged, high-performance, handheld computer far more durable and reliable than typical consumer devices, the PPT8866 is powerful enough to execute mission-critical applications, yet small and light enough to be carried in a pocket or on the hip.
The enterprise-friendly PPT8866 comes packed with features that make it easy for global organizations to manage broad systems deployments.
| PPT8866 Features Benefits | |
| Small and lightweight | Fits in your pocket or on your hip | | Large and vibrant color | Easy to see in many environments display | | Extremely rugged | Endures extreme temperatures and multiple drops to concrete | | Sealed to IP54 standards | Protects against water and dust to ensure reliable performance in rough conditions | | Laser bar code scanning | Accurate information capture every time | | Wireless networking based on the standard IEEE 802.11b (WLAN) or BluetoothTM (WPAN) | Enables real-time communications and decision making; secure mobile transactions and investment protection | | Microsoft® Windows® CE 4.1 (CE .NET) embedded operating system | Easy application development, worldwide support and a large global developer base | | Intel® XScaleTM architecture | High-speed CPU performance for robust enterprise applications | | Rechargeable/replaceable lithium-ion battery | Maximum usage between charges helps to make your mobile workers more efficient | | Multi-language support | Deployable across the global enterprise | | Multiple keypad options | Flexible functionality and keypad layout that is perfectly suited for targeted applications | | Supports AirBEAM® | Wireless device management specifically for enterprises | |
PPT8866 Specification Highlights
| | PPT8866 Physical Characteristics: | |
| Dimensions: | 1.3 in. H x 3.1 in. W x 5.7 in. L 33 mm H x 80 mm W x 146 mm L | | Weight (including battery): | 10.5 oz/ 300 g | | Display: | Transflective color TFT-LCD, 65K colors, 240 (W) x 320 (L) (QVGA size) | | Touch Panel: | Glass analog resistive touch | | Backlight: | LED backlight | | Main Battery: | Rechargeable Lithium Ion 1700 mAh (3.7V) | | Backup Battery: | Ni-MH battery (rechargeable), 15mAh (2.4V) 2 cells | |
| Performance Characteristics | |
| CPU: | Intel® XscaleTM PXA250 | | Operating Platform: | Microsoft® Windows® CE 4.1 (CE .NET) | | Memory: | 32MB RAM/ 32MB ROM | | Interface: | RS-232, max. 115.2 kbps min. 1200bps | | Communications: | IrDA, 1.2 standard SIR, max. 115.2 kbps, max. standard RS-232 interface | | CF Card Slot: | Type II | | Cards Supported: | 802.11b Spectrum24® card; BluetoothTM CF card; Type II Flash Memory card | | Audio: | Speaker, microphone | | Keypad Options: | Standard version and 15-key with power button version | | 1D Decode Capability: | UPC/EAN/JAN, Code 39, Code 93, Code 128, Interleaved 2 of 5, Discrete 2 of 5, Codabar (NW-7), UCC/EAN-128 | | LED Display: | Upper front center (amber and green) | | Scan Triggers: | Left and right trigger buttons | |
| Operating Temperature: | 14° to 122° F/-10° to +50° C | | Storage Temperature: | -13° to 158° F /-25° to 70° C | | Environmental Sealing: | IP54 Category II | | Humidity: | 5% to 90% relative humidity (noncondensing) | | Drop Specification: | 4 ft./1.2 m drop to concrete | | Ambient Light: | Indoor: 450 ft.-candles (4,842 LUX) Outdoor: 8,000 ft.-candles (86,112 LUX) | | Electrostatic Discharge (ESD): | +/-15 kVDC (air); +/- 8 kVDC (contact) | |
| Wireless Data Communications | |
| Wireless Local Area Network (WLAN): | Network Optional IEEE standards-based Spectrum24® 802.11b | | Data Rate: | 11 Mbps (direct sequence) | | Frequency Range: | Country dependent; typically 2.4 to 2.5 GHz | | Output Power: | 100 mW US; 100 mW international | | Spreading Technique: | Direct Sequence | | Antenna: | Internal | | Wireless Personal Area Network (WPAN): | Optional BluetoothTM Compact FlashTM card version | |
| PPT8866 Peripherals and Accessories | |
| Cradles: | Single-slot serial charging cradle; four-slot Ethernet; four-slot serial cradle | | Communication and Charging Cables: | Synchronization cable; Charging cable; Daisy chain cable; worldwide power supplies and cables | | 4-Slot Universal Battery Charger (UBC): | Simultaneous charge of 1-4 batteries; requires adapters for PPT8866 batteries | | Other Accessories: | Holster with easy release clip; holster with Velcro belt clasp and belt; slim carrying case; hand strap; neck strap, 3400 mAh larger capacity battery | |
| Electrical Safety: | Certified to UL1950, CSA C22.2 No. 950, EN60950/IEC950 | | EMI/RFI: | FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Australian SMA | | Laser Safety: | CDRH Class II, IEC Class 2 | | Hazardous Locations: | Certified to UL 913 and CAN/CSA C22.2 no. 157 for use in Class I, Division 2, Groups A, B, C, D | |
