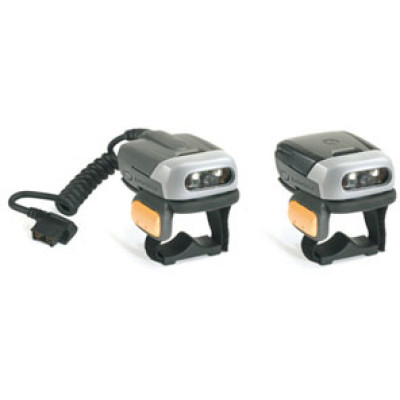

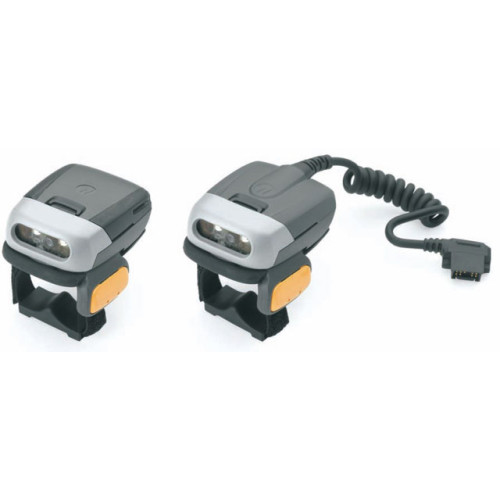

Photo of Symbol RS 507 Ring Imager
Symbol logo

Symbol RS 507 Ring Imager Scanner

Whether your workers are handling and sorting packages, picking or loading shipments in the warehouse or scanning bar codes to meet government regulations for tracking and tracing of product, the Symbol RS 507 Ring Imager Hands-Free Imager delivers the superior blend of technology, form and function your workers need to achieve a new level of scanning efficiency in your operations. The advanced design offers more features and functionality than any other ring scanner available today. Truly superior ergonomics, including Bluetooth cordless freedom, provide unparalleled user comfort. The unmatched rugged design ensures reliable operation in the most demanding environments. Best-in-class scanning, including support for 1D and 2D bar codes, ensures first time every time fast and accurate capture of virtually any barcode. The RS 507 Ring Imager pairs easily with the WT4000 Wearable Terminal.
Questions?
1-888-875-7170
We respond to every email

Brand

Scanner Capability

Scanner Type

Form Factor

Connectivity

Color

Scan Pattern

Included Cables ?

Communication Type ?

Ruggedness

Embedded Scale ?

RS 507 Ring Imager Options
Part # DescriptionAvailabilityPriceOrder
RS507-IM20000CTWR RS 507 Ring Imager, Hands-Free 2D Imager, 2-finger mounted barcode imager with manual trigger and corded adapter to the WT4090 wearable terminal. Requires extended capacity battery for the WT4090. Ships Free Today $873.95
RS507-IM20000SNWR RS 507 Ring Imager, Hands-Free 2D Imager, 2-finger mounted barcode imager without manual trigger for auto-triggering using the Intelligent Sensing Technology (IST) with standard capacity battery for Bluetooth interface to supported mobile computers.
Ships Free in 3-5 Days
$812.35
RS507-IM20000ENWR RS 507 Ring Imager, RS507 Hands-Free, 2D Imager Scanner, Bluetooth, No Trigger, Cordless, Extended Battery.
Ships Free in 3-5 Days
$831.60
RS507-IM200000TWR RS507 Ring Imager, Hands Free Ring Scanner, 2D Imager, Bluetooth, Trigger. Battery and corded adaptor to the WT4090 wearable terminal not included. See accessories. Ships Free Today $758.45
RS507-DL20000STWR RS507 Ring Imager, Hands-Free 2D Imager DL focus, 2-finger mounted barcode imager with manual trigger and standard capacity battery for cordless Bluetooth interface to supported mobile computer.
Ships Free in 3-5 Days
$812.35
RS507-IM20000ST06 RS507 Ring Imager, Hands-Free 2D Imager, 2-finger mounted barcode imager with manual trigger and standard capacity battery for cordless Bluetooth interface to supported mobile computer. iOS compatible. Ships Free Today $812.35
RS507-IM20000ETWR RS 507 Ring Imager, Hands-Free 2D Imager, 2-Finger mounted barcode imager with manual trigger, Bluetooth. Includes Extended Battery.
Ships Free in 3-5 Days
$827.75
RS507-DL200000TWR RS507, Hands-Free Imager (Trigger, No Battery, DL)
Ships Free in 3-5 Days
$758.45
RS507-IM20000STWR RS 507 Ring Imager, Hands-Free 2D Imager, 2-finger mounted barcode imager with manual trigger and standard capacity battery for cordless Bluetooth interface to supported mobile computer. Check Availability Call for Details
RS507-DL20000ENWR RS507 Ring Imager, Hands-Free 2D Imager DL Focus, 2-finger mounted barcode imager without manual trigger for auto-triggering using the Intelligent Sensing Technology (IST) with extended capacity battery for Bluetooth interface to supported mobile computer Check Availability Call for Details
RS507-DL20000CTWR RS507 Ring Imager, Hands-Free 2D Imager DL focus, 2-finger mounted barcode imager with manual trigger. Requires battery. Check Availability Call for Details
RS507-IM20000STWR-R RS507, REFURBISHED/USED/REBUILT Hands-Free 2D Imager, 2-finger mounted barcode imager with manual trigger and standard capacity battery for cordless Bluetooth interface to supported mobile computer. Includes 90 day warranty. Expect 1+ week lead time. Limited supplies available.
Ships Free in 7+ Days
$397.95
RS507-IM20000CTWR-R RS507, REFURBISHED/USED/REBUILT Hands-Free 2D Imager, 2-finger mounted barcode imager with manual trigger and corded adaptor to the WT4090 wearable terminal. Requires extended capacity battery for the WT4090. Includes 90 day warranty. Expect 1+ week lead time. Limited supplies available.
Ships Free in 7+ Days
$397.95
RS507-IM200000TWR-R RS507, REFURBISHED/USED/REBUILT Hands Free Ring Scanner, 2D Imager, Bluetooth, Trigger. Battery and corded adaptor to the WT4090 wearable terminal not included. See accessories. Includes 90 day warranty. Expect 1+ week lead time. Limited supplies available.
Ships Free in 7+ Days
$397.95
RS507-IM20000ENWR-R RS507, REFURBISHED/USED/REBUILT RS507 Hands-Free, 2D Imager Scanner, Bluetooth, No Trigger, Cordless, Extended Battery. Includes 90 day warranty. Expect 1+ week lead time. Limited supplies available.
Ships Free in 7+ Days
$397.95
RS507-IM20000ETWR-R RS507, REFURBISHED/USED/REBUILT Hands-Free 2D Imager, 2-Finger mounted barcode imager with manual trigger, Bluetooth. Includes Extended Battery. Includes 90 day warranty. Expect 1+ week lead time. Limited supplies available.
Ships Free in 7+ Days
$397.95
RS507-IM20000ST06-R RS507, REFURBISHED/USED/REBUILT Hands-Free 2D Imager, 2-finger mounted barcode imager with manual trigger and standard capacity battery for cordless Bluetooth interface to supported mobile computer. iOS compatible. Includes 90 day warranty. Expect 1+ week lead time. Limited supplies available.
Ships Free in 7+ Days
$397.95
RS507-IM20000SNWR-R RS507, REFURBISHED/USED/REBUILT Hands-Free 2D Imager, 2-finger mounted barcode imager without manual trigger for auto-triggering using the Intelligent Sensing Technology (IST) with standard capacity battery for Bluetooth interface to supported mobile computers. Includes 90 day warranty. Expect 1+ week lead time. Limited supplies available.
Ships Free in 7+ Days
$395.67
RS507-DL20000STWR-R RS507, REFURBISHED/USED/REBUILT Hands-Free 2D Imager DL focus, 2-finger mounted barcode imager with manual trigger and standard capacity battery for cordless Bluetooth interface to supported mobile computer. Includes 90 day warranty. Expect 1+ week lead time. Limited supplies available.
Ships Free in 7+ Days
Call for Details
RS507-DL200000TWR-R RS507, REFURBISHED/USED/REBUILT Hands-Free Imager (Trigger, No Battery, DL) Includes 90 day warranty. Expect 1+ week lead time. Limited supplies available.
Ships Free in 7+ Days
Call for Details

Accessories

Part # DescriptionAvailabilityPriceOrder
KT-STRPT-RS507-10R Straps For RS507 Triggered Configuration. Quantity: 10. Ships Free Today $49.29
Retail $65
Save 24%
KT-CLMPT-RS507-01R Kit (Finger Clamp, Trigger, 1 Per Package) For The RS507 Ships Free Today $83.43
Retail $110
Save 24%
KTBTRYRS50EAB02-01 RS507 Extended Battery 1940MAH, 3.7V Ships Free Today $64.04
Retail $95
Save 32%
ADPTRWT-RS507-04R Tethered Module, Corded Adapter Ships Free Today $144.11
Retail $190
Save 24%
SAC5070-800CR RS507 8-Slot Batt Chrg Kit External Pwr/US AC Cord Ships Free Today $407.87
Retail $645
Save 36%
KTBTRYRS50EAB00-01 RS507 Standard Battery 970mah 3.7v Ships Free Today $49.82
Retail $70
Save 28%
KT-BKL-RS507-10R Strap Buckles, 10 Pack, Compatible with RS507. Ships Free Today $24.22
Retail $25
KT-PAD-RS507-10R Comfort Pads For RS507 10 Pack Ships Free Today $52.48
Retail $74
Save 29%
SAC5070-801CR RS507 8-Slot Battery Chrg Kit External Pwr/No AC Cord Ships Free Today $404.50
Retail $640
Save 36%
KT-STRPN-RS507-10R 10 Ct Straps For RS507 Triggerless Configurtaion Ships Free Today $33.32
Retail $41
Save 18%
KT-CLMPN-RS507-01R RS507 Triggerless Strap Hold Does Not Include Strap/Buckle Ships Free Today $28.77
Retail $33
Save 12%

Symbol RS 507 Ring Imager Details

2D IMAGER ENGINE

Ambient light immunity Indoor: 450 ft. candles (4,845 lux)
Outdoor: 9,000 ft. candles (96,900 lux)

PERFORMANCE CHARACTERISTICS

Pitch1 ? 60? from normal

Roll2 +/- 35 degrees from vertical

Yaw3 ? 50? from normal

PHYSICAL CHARACTERISTICS

Dimensions (HxWxD) Triggerless, standard battery:
1.16? (2.9 cm) H x 2.1? (5.3 cm) W x 2.92? (7.4 cm) L

Triggerless, extended battery:
1.42? (3.6 cm) H x 22.1? (5.3 cm) W x 2.92? (7.4 cm) L

Trigger, standard battery:
1.16? (2.9 cm) H x 2.1? (5.3 cm) W x 2.92? (7.4 cm) L

Trigger, corded:
1.3? (3.3 cm) H x 2.1? (5.3 cm) W x 22.92? (7.4 cm) (w/o cord) L

Weight Triggerless, standard battery:
4.3 oz./121.4 g

Triggerless, extended battery:
5.2 oz./146.4 g

Trigger, standard battery:
4.8 oz./134.8 g

Trigger, corded: 5.0 oz./140.8 g

USER ENVIRONMENT

Drop specification 6 ft./1.8 m multiple drops to concrete across operating temperature range

Environmental sealing IP54

Operating temperature -4? to 131? F/-20? to 55? C

Storage temperature -40? to 158? F/-40? to 70? C excl. Battery

-40? to 140? F/-40? to 60? C incl. Battery

1 Pitch Controlled by dropping or raising the wrist
2 Controlled by rotating the wrist clockwise or counterclockwise
3 Controlled by rotating the wrist from left to right or vice versa

The Symbol RS 507 Ring Imager is also known as the Symbol Technologies RS 507 Ring Imager .
