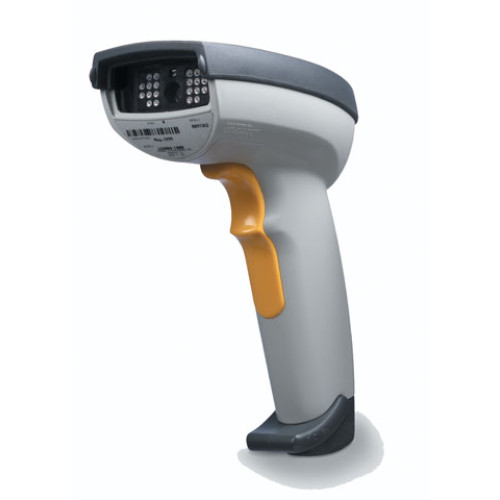

Image Scanning with Best-in-Class Performance
Symbol combines integrated image capture with handheld scanning
of all major bar code symbologies in the Vision System (VS) 4000
Series. Based on the ergonomic design of the VS 4004 of handheld
scanners, the VS 4004 combines best-in-class performance with
award-winning ergonomics.
For existing 1-D applications, the VS 4004 provides robust
working range on 1-D codes, such as 13 in./33 cm on 100% UPC, with
the added benefit of omni-directional scanning. More importantly,
the VS 4004 delivers functionality to support the growing number of
2-D applications.
PDF417, DataMatrix, MaxiCode and Postal Code
Whether your requirements are to read DataMatrix for small item
identification, MaxiCode for parcel sortation, postal codes for
mail-handling applications, or PDF417 across a variety of
applications, the VS 4004 provides the aggressive performance you
need.
The VS 4004 High Density version was designed to read DataMatrix
codes as small as 0.005 in. (5 mil), while providing a
user-friendly working range on all other symbologies.
Image Capture
For image capture applications, the VS 4004 delivers clear Video
Graphics Array (VGA) resolution images while providing the user
total control over image attributes such as compression quality,
transfer time, and file size. User-selectable imaging options also
allow the choice of a variety of industry-standard image file
types.
Comfortable and Intuitive to Use
The VS 4004 is ergonomically contoured, light and easy to
use–just what you have come to expect from Symbol! A bright laser
generated pattern defines the imager's field of view, enabling
point-and-shoot operation for bar code applications and intuitive
aiming for image capture applications.
Easy to Program
With an eye to the future, the VS 4004 is as easy to program as
it is to use. With flash programming capability, Symbol made it a
snap to update and reconfigure the imager, even in the field. This
protects your technology investment and provides an easy upgrade
path for new codes and features. The VS 4004 Handheld Imager from
Symbol Technologies– the right solution for all your handheld image
capture needs.
For More Information
Symbol is the worldwide leader in bar code-driven data
management systems with more than 20,000 wireless network
installations and millions of scanners and terminals in use.
To find out more about how your company can benefit from
Symbol's scanners contact us at any of our offices, or visit us at
www.symbol.com/bar code.
VS 4004 Features Benefits
|
|
Omni-directional reading of matrix codes, PDF417, postal codes
and linear symbols
|
Outstanding image capture for popular, industry-wide
applications
|
Clear VGA resolution
|
Total control of image attributes
|
JPEG, TIFF and BMP
|
Choice of standard image file formats
|
Ergonomic, two-finger design is intuitive to use
|
Minimizes operator training
|
Advanced Data Formatting
|
Seamless integration into existing host applications
|
Flash memory
|
Easy software upgrades in the field
|
Synapse "Smart Cable" Interface
|
Offers connectivity to any host with a single cable change
|
|
VS 4004 Specification Highlights
|
VS 4004 Physical Characteristics:
|
|
Dimensions:
|
6.3 in. H x 5 in. L x 2.8 in. W/16 cm H x 12.7 cm L x 7.1 cm
W
|
Weight:
|
7.3 oz/205 gm (without cable)
|
Coil Cable Length
|
6ft/1.8m
|
|
Performance Characteristics
|
|
Field of View
|
32 ° horizontal/24 ° vertical
|
Focal Point:
|
Standard: 5.8 in./14.8 cm from nose of scanner High Density: 2.4
in./6.2 cm from nose of scanner
|
Sensor:
|
Progressive Scan CCD
|
Optical Resolution:
|
640x480 pixels x 256 shades of gray
|
Pitch:
|
± 60 ° (from front to back)
|
Skew:
|
± 60 ° from plane parallel to symbol (side-to-side)
|
Rotational Tolerance:
|
± 180 °
|
Print Contrast Resolution:
|
25% (1D symbologies) or 35% (PDF417) absolute dark/light
reflectance differential, measured at 650 nm
|
Aiming Pattern:
|
Visible laser diode at 650 nm
|
Ambient Light Immunity:
|
Sunlight: Up to 9,000ft-candles/96,890 lux
|
Shock:
|
Withstands multiple 4ft/1.2m drops to concrete
|
Power Requirements:
|
+4.75 to 5.25V, 400 mA (typical) Low Power Mode Current: 1.5 mA
Normal Current: 400 mA Peak Current: 930 mA
|
Interfaces:
|
RS-232 and Synapse Smart Cable interface
|
Humidity:
|
5% to 70% noncondensing
|
|
Operating Temperature:
|
0 ° to 40 ° C/32 ° to 104 ° F
|
Storage Temperature:
|
-20 ° to 60 ° C/-4 ° to 140 ° F
|
Decode Capability:
|
1-D Symbology: UPC-A, UPC-E, EAN-8, EAN-13, Code 39, Code 39
Full ASCII, Trioptic Code 39, Code 93, UCC/EAN-128, Code 128,
Codabar, Interleaved 2 of 5, Discrete 2 of 5, Bookland EAN, UPC
Coupon Code, MSI Plessey, JAN, Italian Pharmacode2-D Symbology:
MaxiCode, QR Code, micro PDF417, PDF417, DataMatrix (ECC 200)
|
Postal Codes:
|
U.S., Australia, Canada, UK, Japan, Holland
|
Imaging Options (User Selectable):
|
File Formats: JPEG, TIFF, BMP Resolution: Full (640x480), 1/2,
1/3, 1/4 image Grayscale Level: 256, 16, 2, shades of gray
Cropping: Any rectangular region of the image
|
|
Electrical Safety:
|
Certified to UL1950, CSA C22.2 No. 950, EN60950/IEC950
|
Laser Safety:
|
CDRH Class II, IEC Class 2
|
EMI/RFI:
|
FCC Part 15 Class B, ICES-003 Class B, European Union EMC
Directive, Australian SMA
|
|
