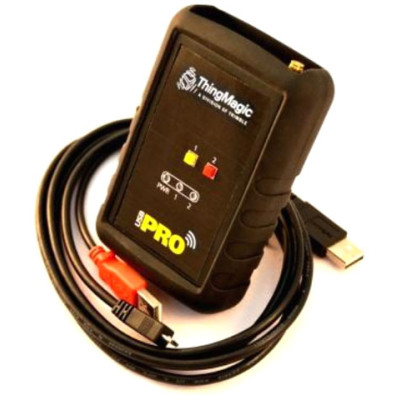

Photo of ThingMagic USB Pro
ThingMagic logo

ThingMagic USB Pro RFID Reader

The USB Pro RFID Reader is that latest desktop RFID reader from the ThingMagic division of Trimble. Based on the M6e-Micro LTE RFID module the USB Pro reader offers a number of enhancements including:
  • Wider power range
  • New external antenna port
  • Enhanced firmware features
  • Support for EPCglobal Gen 2 (ISO 18000-6C) with Anti-Collision and DRM
  • Powered by USB connection to notebook or desktop PC
  • ThingMagic Reader Assistant software and applications development tools
  • Support for full 860 to 960 MHz UHF RFID carrier frequency range to accommodate worldwide regulations
  • Certifiable for operation in countries adopting FCC, ETSI, KCC, TRAI, ACMA, SRRC regulatory specifications (Open (Customizable) 860-960 MHz)
  • Tag Read Rate up to 50 tags/second
  • Tag Read Distance Up to 1.2 m (4 feet) with internal antenna
  • Tag read distance up to 6.1 m (20 feet) with external 6 dBi linear polarized external antenna
  • Operating temperature range -40 to +60 degree C with appropriate duty cycle
  • High impact plastic case
We respond to every email

All ThingMagic products are non-returnable and non-cancellable.

Some ThingMagic products are made to order. Please call for details on lead time.

USB Pro Options
Part # DescriptionAvailabilityPriceOrder
USB-6EP USB Pro, Desktop RFID reader, USB Interface, M6e-Micro LTE RFID Module
Ships Free in 3-5 Days
The ThingMagic USB Pro is also known as the Thing Magic USB Pro .
