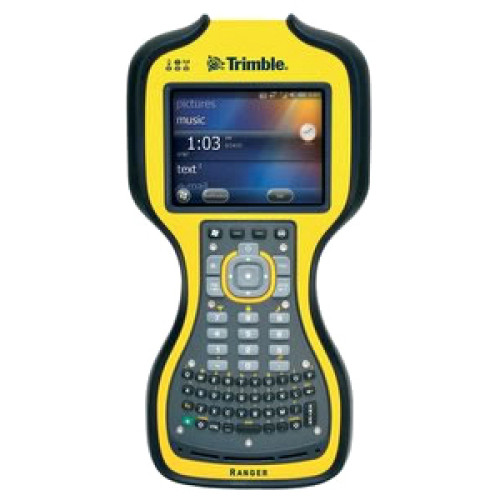

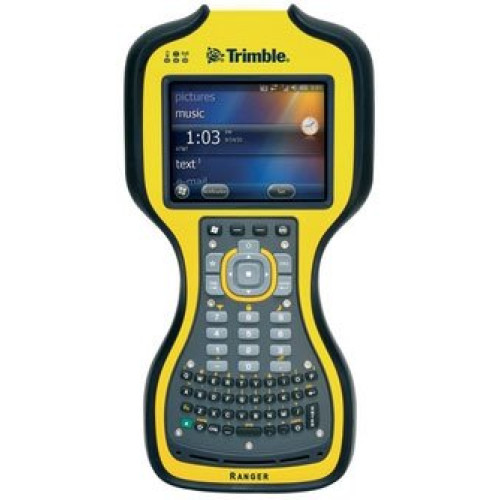

RGRAHY-121-00 - Trimble Ranger Hand Held Computer

The Trimble Ranger has many built-in capabilities that make it easy to collect, save and transmit data in the field. The integrated GPS receiver, compass and accelerometer enable new possibilities for location-aware software to combine location, bearing and motion data. The 5 megapixel auto-focus camera uses the GPS data to capture geo-tagged images. The camera with flash is useful for inspection, maintenance and repair applications. Standard features of the Trimble Ranger series include an ARM Cortex-A8 superscalar processor, a long-life lithium-ion battery, integrated Wi-Fi and Bluetooth wireless capabilities and 8 GB of Flash storage. The Secure Digital card slot enables the addition of SD/SDHC memory cards for even more storage. The large sunlight-visible VGA display shows images, maps and data in crisp detail. The optional integrated 1D bar code laser scanner enables a variety of applications, such as tracking parts and assets used in field service applications, as well as warehousing and logistical applications. The optional integrated 3G GSM cellular WWAN enables connectivity to the Internet and corporate networks, enabling mobile applications to synchronize data with servers and databases in the office.

We respond to every email
Part # Description Availability Price Order
RGRAHY-121-00 Ranger 3L, 800 MHz processor, 256MB RAM/8GB Flash, VGA touch display, 58 key alphanumeric keypad, Windows Mobile 6.5 Pro, Bluetooth, GPS, SD slot. Color: Yellow. Includes charging kit and USB cable.
Ships Free in 3-5 Days
Information:   |  Specifications  |  Trimble's Ranger page  |
Accessories:   |  Accessories/Options  |  Trimble Ranger service contract  |

RGRAHY-121-00 Details

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Trimble
  • Manufacturer: Trimble Navigation Limited
  • Product Model: 3L
  • Product Name: Ranger 3L Handheld Terminal
  • Product Line: Ranger

Technical Information

  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Drop Specification: 48" To Concrete
  • Barcode Symbology Supported: 1D

Physical Characteristics

  • Height: 10.5"
  • Width: 5.2"
  • Depth: 1.9"
  • Weight (Approximate): 2.30 lb


  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • Ranger 3L Handheld Terminal
    • Battery
    • Stylus
    • Ranger 3L Handheld Terminal
    • Battery
    • Stylus
  • Certifications & Standards:
    • FCC
    • CE
    • R&TTE
    • IC (Canada)
    • C-tick
    • GCF Compliant
    • Section 508 Compliant
    • Wi-Fi Alliance Certified
    • MIL-STD-810G
    • IP67
    • MIL-STD-461


  • Flash Memory: 8 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • Secure Digital High Capacity (SDHC)
    • Secure Digital (SD) Card

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 4.2"
  • Display Color: Color

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11b/g
  • GPS: Yes

Processor & Chipset

  • Processor Manufacturer: Texas Instruments
  • Processor Speed: 800 MHz
  • Processor Type: ARM


  • Keyboard Type: Alphanumeric
  • Number of Keys: 58
  • Keyboard Layout: QWERTY

Battery Information

  • Battery Capacity: 2500 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)


  • Operating System: Windows Mobile 6.5 Professional Edition


  • Limited Warranty: 1 Year

Touchscreen Information

  • Touchscreen: Yes
Part # Description Availability Price Order
WARAA-105 Trimble Service Plan, 24 month extended service plan
Ships Free in 3-5 Days
TSP-US-MC-2 BCI Service Contracts, True Support contract 2-year - Mobile Computers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $72 per year for 2 years, billed annually.
Ships Free in 3-5 Days

The Trimble RGRAHY-121-00 is also known as RGRAHY-121-00 or RGRAHY12100 .
