Tripp-Lite Products
Part #: SMART1500RM2U | SKU: TRI257465

Products and parts from Tripp-Lite.

Tripp-Lite Products

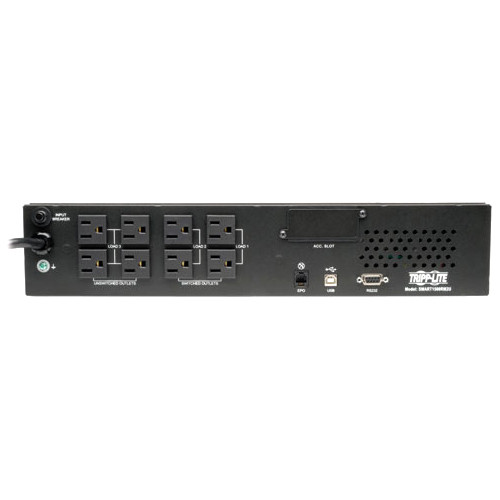

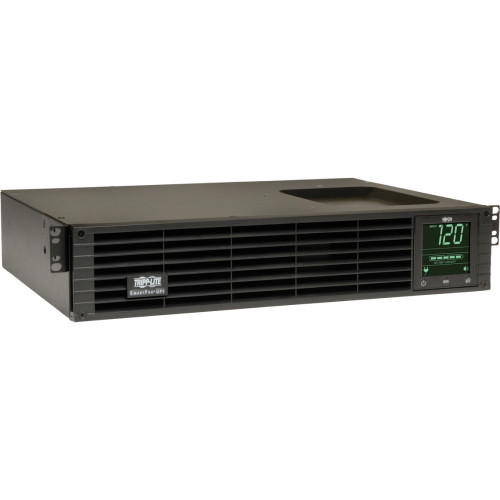

Part Details: 1500VA UPS SMART PRO RACK/TOWER LINE-INTERACTIVE 8 OUTLETS
MSRP: $1,304.78 Price: $901.34
In Stock

Additional Information

Manufacturer Tripp-Lite
Model Name Parts

General Information

  • Product Type: Line-interactive UPS
  • Brand Name: Tripp Lite
  • Manufacturer: Tripp Lite
  • Product Name: SmartPro 1500RM2U UPS
  • Product Line: SmartPro
  • Packaged Quantity: 1 Each

Technical Information

  • Receptacles: 8 x NEMA 5-15R
  • Plug/Connector Type: NEMA 5-15P
  • Cord Length: 10 ft
  • Emergency Power OFF: Yes

Physical Characteristics

  • Height: 3.5"
  • Width: 17.5"
  • Depth: 13.5"
  • Rack Height: 2U
  • Weight (Approximate): 46 lb

Interfaces/Ports

  • USB: Yes
  • Total Number of Expansion Slots: 1

Other

  • Country of Origin: China
  • Package Contents:
    • SmartPro 1500RM2U UPS
    • Mounting hardware for 4 post rackmount installation
    • Cabling for USB & DB9 monitoring and EPO switching
    • PowerAlert unattended shutdown and UPS/Power monitoring software
    • Warranty information
    • SmartPro 1500RM2U UPS
    • Mounting hardware for 4 post rackmount installation
    • Cabling for USB & DB9 monitoring and EPO switching
    • PowerAlert unattended shutdown and UPS/Power monitoring software
    • Warranty information
  • Recycled: No
  • Certifications & Standards: UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications
  • Additional Information:
    • SMART1500RM2U line-interactive UPS offers battery derived sine wave AC output during power outages, voltage regulation during brownouts and overvoltages, plus network grade AC surge suppression
    • 1500VA / 1350 watt power handling ability and full time sine wave output offers guaranteed compatibility with properly sized networking, telecom and other sensitive electronic devices
    • Supports 2U rackmount installation in 4 post rack enclosures with included mounting accessories, 2 post mountable with optional 2POSTRMKIT accessory, upright tower installation supported with optional
    • 2-9USTAND accessory
    • Large internal batteries offer runtimes of 25 minutes at half load (750VA / 500 watts) and 10 minutes at full load (1500VA / 1350 watts)
    • Maintains regulated 120V nominal output during brownouts and overvoltages from 83 to 147V
    • Includes 8 UPS-supported outlets arranged in 2 individually controllable load banks (2 outlets per bank)
    • PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, pager & email notification, event logging and running user-defined script commands
    • Offers simultaneous monitoring by up to 3 directly-connected devices through included USB, DB9 and SNMP* interfaces (*requires optional SNMPWEBCARD), or the monitoring of any number of additoinal UPS systems over IP with included PowerAlert monitoring software. Free PowerAlert enterprise management software is also available for select opportunities
    • Communications ports support messaging of UPS and line power status, including on battery, low-battery, power restored, AC line voltage, DC battery voltage and remaining battery capacity
    • Supports timed inverter shutoff after unattended shutdown, activate self-test and UPS output power control for scheduled or immediate reboot of connected devices
    • Supports Tripp Lite's WatchDog software application to restore unresponsive programs by systematically restarting applications, operating systems and ultimately rebooting completely locked computers by momentarily switching UPS power off and back on again (requires optional WATCHDOGSW)
    • Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter
    • Emergency Power Off (EPO) interface with cable
    • Multi-function audible alarms and set of 5 front panel LEDs
    • Network-grade AC surge suppression
    • Attractive all-black color scheme
    • UPS battery set ships fully assembled and ready for installation, no time consuming connection of internal batteries by user is necessary
    • This unit has an LCD screen
    • Two year warranty with $250,000 connected equipment insurance (USA & Canada only)

Battery Information

  • Maximum Battery Recharge Time: 4 Hour
  • Backup/Run Time (Half Load): 13 Minute
  • Backup/Run Time (Full Load): 4.50 Minute
  • Battery Life: 6 Year
  • Battery Chemistry: Sealed Lead Acid
  • Hot Swappable: Yes

Management

  • Network Management: SNMP Manageable
  • Alarm:
    • On Battery
    • Overload
    • Low Battery

Power Description

  • Load Capacity (VA): 1500 VA
  • Load Capacity (Watt): 1350 W
  • Input Voltage: 110 V AC
  • Output Voltage: 120 V AC
  • Waveform Type: Sine Wave

Controls/Indicators

  • Status Indicators: 5 front panel LEDs - Green POWER LED, 3 color BATTERY CHARGE LED, 3 color OUTPUT LOAD LEVEL LED, red BATTERY WARNING LED.

Warranty

  • Limited Warranty: 2 Year

Environmental Conditions

  • Temperature: 104°F (40°C)
Extended Details
