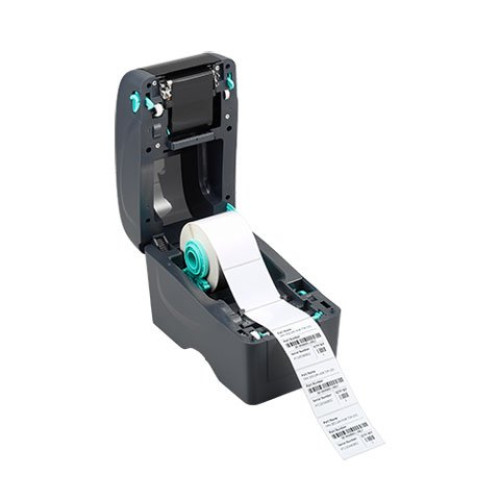

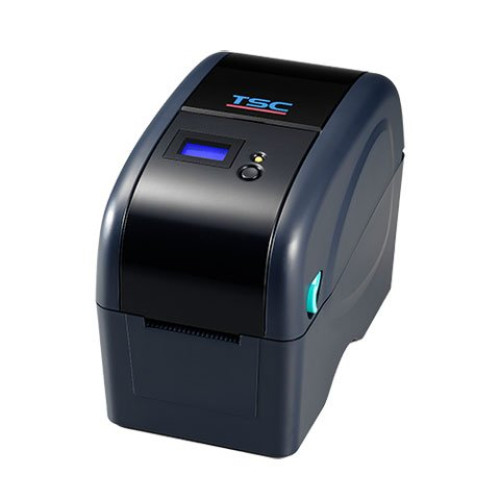

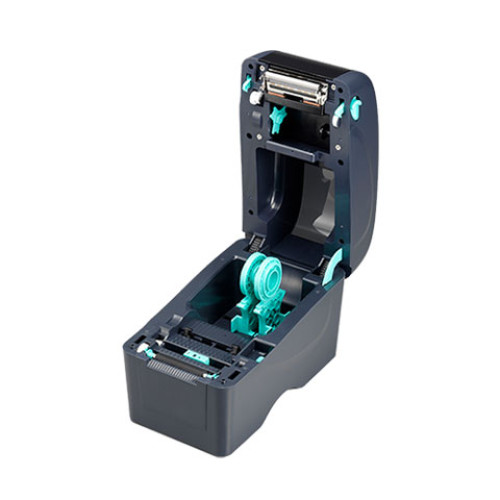

TSC TTP-225 Barcode Label Printer
Part #: 99-040A011-00LF | SKU: TSC207850

The TSC TTP-225 is the first low cost thermal transfer compact 2" desktop printer to offer an optional LCD display to its customers. The LCD is used to present important information about print job status and setup which brings a new level of ease of use to its customers. Other outstanding features include an inexpensive internal Ethernet adapter for easy integration into network systems, cutters, label present sensor, and an optional keyboard for printing labels in stand-alone or down-time situations.

TSC TTP-225 Barcode Label Printer

Part Details: TTP-225, 2" wide thermal transfer label printer, 300 dpi, 3 ips (navy) includes real-time clock, USB & Serial ports

Additional Information

Included Features microSD Flash Memory Slot
Interface Options Serial (RS-232), USB
Manufacturer TSC
Max Label Width 2.36
Max Roll Outer Diameter 5
Model Name TTP-225
Print Resolution 300 dpi
Printer Options Real-Time Clock
Printer Type Desktop
Printing Technology Thermal Transfer
Ribbon Core Size 0.5 inch

Technical Information

  • Maximum Mono Print Speed: 3 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 2.13"
  • Recommended Use: Label Print
  • Features: Real Time Clock
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • Code 128 UCC
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Codabar
    • Interleaved 2 of 5
    • EAN-8
    • EAN-13
    • EAN 128
    • UPC-A
    • UPC-E
    • UPC-5 Digits Add-on
    • UPC -2 Digits Add-on
    • MSI
    • Plessey
    • POSTNET
    • China Post
    • GS1 DataBar
    • Code 11
    • PDF-417
    • Maxi Code
    • Data Matrix
    • QR Code
    • Aztec Code

General Information

  • Product Type: Thermal Transfer Printer
  • Brand Name: TSC Auto ID
  • Manufacturer: TSC Auto ID Technology Co., Ltd
  • Product Model: TTP-323
  • Product Name: TTP-323 Label Printer

Physical Characteristics

  • Height: 7"
  • Width: 5.5"
  • Depth: 9.5"
  • Form Factor: Desktop
  • Weight (Approximate): 5.40 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 92.9 mil
  • Maximum Label Length: 40"
  • Media Type:
    • Label
    • Tag
    • Gap
    • Black Mark
    • Notch
    • Wristband
    • Die-cut Label
    • Fanfold
    • Notched
  • Media Thickness: 7.48 mil
  • Media Sensor:
    • Cover Open Sensor
    • Transmissive Media Sensor
    • Reflective Media Sensor
    • Out Of Ribbon Sensor
  • Label Core Size: 1.50"
  • Ribbon Core Size: 0.50"
  • Maximum Roll Diameter: 5"

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Certifications & Standards:
    • FCC Class B
    • CE Class B
    • C-Tick Class B
    • UL
    • CUL
    • TÜV/Safety
    • CCC

Memory

  • Standard Memory: 8 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Power Description

  • Input Voltage: 24 V DC
  • Power Source: Power Adapter

Warranty

  • Limited Warranty: 2 Year

Display & Graphics

  • Display Screen Type: LCD

Fonts & Emulation

  • Language Emulation: TSPL-EZ
Extended Details

Recommended Accessories for Model: TSC TTP-225 Barcode Label Printer

  • TSC TTP-225 Accessory
    Part #: 98-0400025-01LF | SKU: TSC606728

    Printer Spare Parts - TSC - 98-0400025-01LF - Dark - Peel-off Module - Compatible with TTP-225 Series
    Price: $25.00
    In Stock
  • TSC TTP-225 Power Device
    Part #: 72-0180100-00LF | SKU: TSC257552

    SPARE PART, POWER CORD, FOR TTP-225/244, POWER SUPPLY NOT INCLUDED
    Price: $16.29
  • TSC TTP-225 Accessory
    Part #: 98-0400017-01LF | SKU: TSC270411

    TTP-225, CUTTER MODULE FOR TTP-225
    $115.50
  • TSC TTP-225 Accessory
    Part #: 98-0400017-00LF | SKU: TSC196550

    TTP-225 Accessories, Full cut/Partial cut cutter module for TTP-225, TTP-323
  • TSC TTP-225 Accessory
    Part #: 98-0400015-00LF | SKU: TSC196569

    TTP-225 Accessories, Peel-off module for TTP-225, TTP-323

Recommended Labels for Model: TSC TTP-225 Barcode Label Printer

  • TSC Barcode Label
    Part #: DT-400200-5-01 | SKU: TSC538590

    /PTX, CONSUMABLES, TOP COATED, DIRECT THERMAL PAPER LABEL FOR USE IN DESKTOP PRINTERS, WHITE, 4" X 2", 1"CORE, 5" OD, PERMANENT ADHESIVE, 1320 LABELS PER ROLL, 12 ROLLS PER CASE, PRICED PER CASE
    MSRP: $282.45 Price: $194.12
    In Stock
  • TSC Barcode Label
    Part #: DT-400400-5-01 | SKU: TSC538595

    /PTX, CONSUMABLES, TOP COATED, DIRECT THERMAL PAPER LABEL FOR USE IN DESKTOP PRINTERS, WHITE, 4" X 4", 1"CORE, 5" OD, PERMANENT ADHESIVE, 700 LABELS PER ROLL, 12 ROLLS PER CASE, PRICED PER CASE
    MSRP: $270.96 Price: $186.22
    In Stock
  • TSC Barcode Label
    Part #: DT-400600-5-01 | SKU: TSC538597

    /PTX, CONSUMABLES, TOP COATED, DIRECT THERMAL PAPER LABEL FOR USE IN DESKTOP PRINTERS, WHITE, 4" X 6", 1"CORE, 5" OD, PERMANENT ADHESIVE, 460 LABELS PER ROLL, 12 ROLLS PER CASE, PRICED PER CASE
    MSRP: $271.66 Price: $186.70
    In Stock
  • TSC Barcode Label
    Part #: TT-400600-5-01 | SKU: TSC538644

    /PTX, CONSUMABLES, PREMIUM THERMAL TRANSFER PAPER LABEL FOR USE IN DESKTOP PRINTERS, WHITE, 4" X 6", 1"CORE, 5" OD, PERMANENT ADHESIVE, 450 LABELS PER ROLL, 4 ROLLS PER CASE, PRICED PER CASE
    MSRP: $84.55 Price: $58.10
    In Stock
  • TSC Barcode Label
    Part #: 38-M112115-11A | SKU: TSC616125

    ADULT MEDBAND, 1.125" X 11.50 WHITE, 5" O.D ROLL 200/ROLL 2 ROLLS/CTN
    MSRP: $103.95 Price: $75.81
    In Stock

Recommended Printheads for Model: TSC TTP-225 Barcode Label Printer

  • TSC TTP-225 Printhead
    Part #: 98-0400009-10LF | SKU: TSC674959

    Thermal Printheads - TSC - Printhead Module - 203 dpi - Compatible with TTP-225
    MSRP: $138.00 Price: $112.81
  • TSC TTP-225 Printhead
    Part #: 98-0400009-00LF | SKU: TSC182964

    TTP-225, Replacement 203 dpi TPH for TTP225

Recommended Ribbons for Model: TSC TTP-225 Barcode Label Printer

  • TSC Barcode Label
    Part #: 35-R090110-23CE | SKU: TSC501711

    CONSUMABLES, THERMAL TRANSFER STANDARD RESIN RIBBON, BLACK, 3.54" (90 MM) x 361'' (110M), 0.5" CORE, 12 roll case
    MSRP: $113.35 Price: $36.20
    In Stock
  • TSC Barcode Label
    Part #: 35-R110110-23CF | SKU: TSC501713

    CONSUMABLES, THERMAL TRANSFER PREMIUM RESIN RIBBON, BLACK, 4.33" (110 MM) x 361'' (110M), 0.5" CORE, 12 roll case
    MSRP: $213.55 Price: $160.25
    In Stock
  • TSC Thermal Printer Ribbon
    Part #: 35-R076110-21CF | SKU: TSC424734

    2.99" x 361' Black Resin Ribbon, 0.5 core, 24 roll case. Compatible with Desktop Printers.
    Price: $360.63
  • TSC Thermal Printer Ribbon
    Part #: 35-W076110-21CB | SKU: TSC424730

    2.99" x 361' Black Wax Ribbon, 0.5 core, 48 roll case. Compatible with Desktop Printers.
    Price: $123.20
  • TSC Thermal Printer Ribbon
    Part #: 35-S090110-21CD | SKU: TSC424744

    3.54" x 361' Black Wax/Resin Ribbon, 0.5 core, 24 roll case. Compatible with Desktop Printers.
    Price: $202.12

Recommended Warranties for Model: TSC TTP-225 Barcode Label Printer

  • TSC TTP-225 Service Contract
    Part #: 04020-00-A0-36-10 | SKU: TSC584166

    Service Contracts - TSC - Standard - Priority Depot - TTP-225/TTP-323 - 3 Year - Buy With Printer - US
    MSRP: $75.00 Price: $71.77
    In Stock
  • TSC TTP-225 Service Contract
    Part #: 04020-00-A0-60-10 | SKU: TSC584167

    Service Contracts - TSC - Standard - Priority Depot - TTP-225/TTP-323 - 5 Year - Buy With Printer - US
    MSRP: $150.00 Price: $143.55
    In Stock
