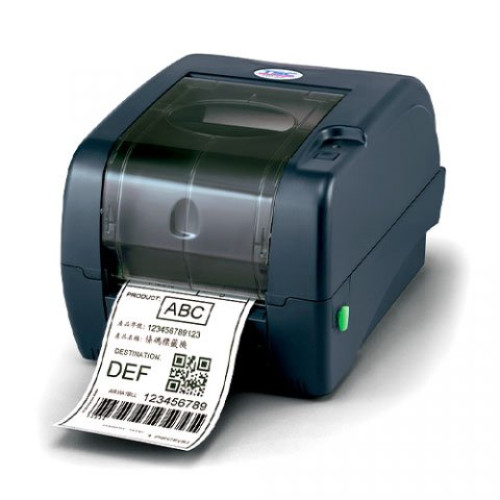

99-125A013-00LF - TSC TTP-247 Bar code Printer

The new TTP-247 thermal transfer desktop barcode printer series delivers more performance for the price than any other printer in its class.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
99-125A013-00LF TTP 247, 203 dpi, Thermal transfer, 7 ips, 8MB DRAM, 4MB FLASH, USB, Serial, Parallel. Ships Free Today $381.50
Retail $545
Save 30%
Information:   |  Download TSC TTP-247 driver  |  Specifications  |  TSC's TTP-247 page  |
Accessories:   |  Accessories/Options  |  Bar code Software  |
Supplies:   |  TSC TTP-247 Label  |  TSC TTP-247 Ribbon  |  TSC Print head  |

99-125A013-00LF Details

Technical Information

  • Maximum Mono Print Speed: 7 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Features:
    • Real Time Clock
    • External Unwinder
  • Barcode Symbology Supported:
    • Code 93
    • Code 128
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC
    • Codabar
    • Interleaved 2 of 5
    • EAN-8
    • EAN-13
    • EAN 128
    • UPC-A
    • UPC-E
    • UPC -2 Digits Add-on
    • UPC-5 Digits Add-on
    • MSI
    • Plessey
    • POSTNET
    • RSS Stacked
    • GS1 DataBar
    • Code 11
    • PDF-417
    • QR Code
    • Aztec Code
    • Data Matrix
    • Maxi Code

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: TTP
  • Brand Name: TSC Auto ID
  • Manufacturer: TSC Auto ID Technology Co., Ltd
  • Product Model: TTP-247
  • Product Name: TTP-247 Label Printer

Physical Characteristics

  • Height: 7.4"
  • Width: 8.4"
  • Depth: 12.4"
  • Form Factor: Desktop

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • TTP-247 Label Printer
    • Software and Documentation CD
    • Quick Start Guide
    • USB Cable
    • External Universal Switching Power Supply
    • Power Cord
    • Label Spindle
    • 2 x Fixing Tab
    • 2 x 1.5" Core Adapter
    • 2 x Ribbon spindle
    • Ribbon Rewind Spindle Paper Core
    • TTP-247 Label Printer
    • Software and Documentation CD
    • Quick Start Guide
    • USB Cable
    • External Universal Switching Power Supply
    • Power Cord
    • Label Spindle
    • 2 x Fixing Tab
    • 2 x 1.5" Core Adapter
    • 2 x Ribbon spindle
    • Ribbon Rewind Spindle Paper Core
  • Certifications & Standards:
    • FCC Class B
    • CE Class B
    • CCC
    • C-Tick Class B
    • UL
    • CUL
    • TUV/Safety

Media Types & Handling

  • Maximum Label Width: 4.40"
  • Maximum Label Length: 90"
  • Media Type:
    • Continuous Label
    • Die-cut Label
    • Black Mark
    • Fanfold
    • Notch
  • Media Thickness: 7.48 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
    • Out Of Ribbon Sensor
    • Cover Open Sensor
  • Label Core Size: 3"
  • Maximum Roll Diameter: 8.40"

Memory

  • Standard Memory: 8 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital High Capacity (SDHC)
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Warranty

  • Limited Warranty: 2 Year

Fonts & Emulation

  • Language Emulation: TSPL-EZ
Part # Description Availability Price Order
E15522-R-COMPATIBLE AirTrack Label, 4" x 1" Thermal transfer paper label. 2260 labels/roll, single roll. Also available as a case (Part# E15522-COMPATIBLE).
Ships in 7+ Days
$29.20
800274-605-COMPATIBLE AirTrack Label, 4" x 6" Thermal transfer paper label. 475 labels/roll, 12 roll case. Also available as a roll (Part# 800274-605-R-COMPATIBLE) (4060TT-P-1").
Ships in 7+ Days
$91.04
18932-R-COMPATIBLE AirTrack Label, 4" x 2" Thermal transfer polypropylene label. 1,110 labels/roll, single roll. Also available as a case (Part# 18932-COMPATIBLE).
Ships in 7+ Days
$59.24
PWX083300ABK-02 TSC Thermal Printer Ribbons, Premium Wax Ribbon, 300 Meter x 83 mm Wide, 1" Core, single roll, for TTP-244/247/345/TA201 Ships Today $19.45

The TSC 99-125A013-00LF is also known as TSC-99125A01300LF or 99125A01300LF .
