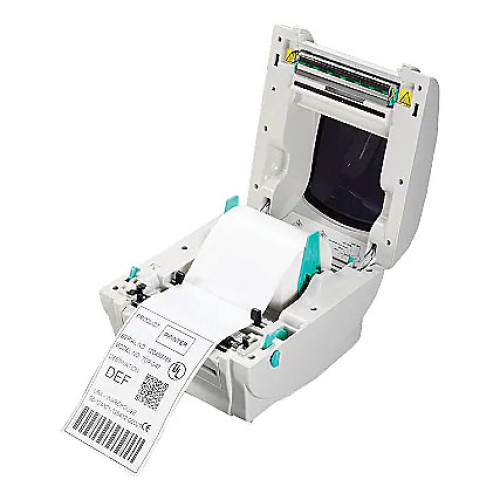

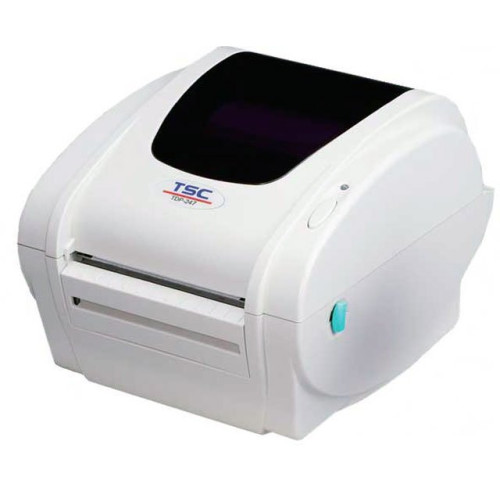

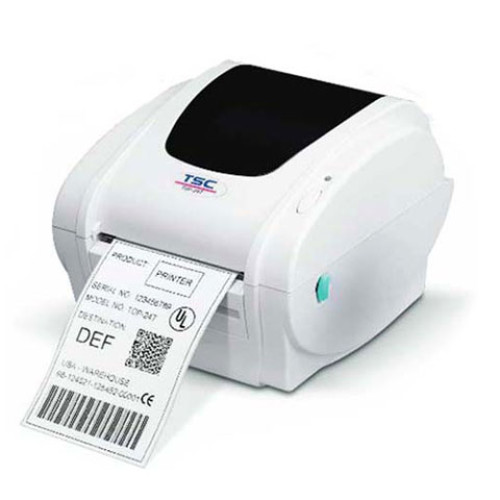

Photo of TSC TDP-247
TSC logo

TSC TDP-247 Printer

The new TDP-247 direct thermal label printers offers best-in-class speed and high-resolution capabilities, along with a rugged, reliable design that has become the hallmark of the TSC printer family. The TDP-247 is ideally suited for product marking, shipping, retail and other labeling applications. The TDP-247 can print four-inch-wide 203 dpi labels at speeds up to 7 ips. The TDP-247 can come standard with USB, parallel and serial connections. Other options include an internal Ethernet interface for easy network integration, label cutters, and a keyboard for printing labels in standalone or down-time situations. Because of their compact design, the TDP-247 printers are ideally suited for a variety of applications, fitting easily into cramped work spaces that are often too small for larger printers. Both models feature a user-friendly clamshell design that allows users to simply open the cover and drop labels into a center-biased storage bay. Top-of-form sensing by gap, black mark, or notch is standard and completely adjustable from side to side.

Print Method ?

Printer Type ?

Interface Options

Maximum Print Width ?

Print Resolution ?

Print Speed ?

  • 7 (3)
TDP-247 Options
Part # DescriptionAvailabilityPriceOrder
99-126A010-41LF TDP 247, Direct thermal, 203 dpi, 4.25" wide, USB/Parallel/Serial/Ethernet Interfaces. Includes USB cable. Ships Today $413.00
Retail $590
Save 30%
99-126A010-00LF TDP 247, Direct thermal, 203 dpi, 4.25" wide, USB/Parallel/Serial Interfaces. Includes USB cable. Ships Today $325.50
Retail $465
Save 30%
99-126A010-30LF TDP 247, Direct thermal, 203 dpi, 4.25" wide, USB/Parallel/Serial Interfaces, Peeler. Includes USB cable. Ships in 24-48 Hours $343.00
Retail $490
Save 30%
99-126A010-00HC TDP 247, Horticulture Version, Direct thermal, 203 dpi, 4.25" wide, USB/Parallel/Serial Interfaces. Includes USB cable. Ships in 24-48 Hours $343.00
Retail $490
Save 30%
99-126A010-11HC TDP 247, Horticulture Version, Direct thermal, 203 dpi, 4.25" wide, USB/Parallel/Serial Interfaces, Cutter. Includes USB cable. Ships in 24-48 Hours $504.00
Retail $720
Save 30%
99-126A010-11LF TDP 247, Direct thermal, 203 dpi, 4.25" wide, USB/Parallel/Serial Interfaces, Cutter. Includes USB cable. Ships in 24-48 Hours $462.00
Retail $660
Save 30%
99-126A010-20LF TDP 247, Direct thermal, 203 dpi, 4.25" wide, USB/Parallel/Serial Interfaces, Real-time clock. Includes USB cable. Ships in 24-48 Hours $346.50
Retail $495
Save 30%
99-1260022-41LF TDP-247, Printer, Generic, Direct thermal, 203 dpi, 7 ips, 4 Ports Ethernet, USB, Serial, Parallel Ships in 24-48 Hours $413.00
Retail $590
Save 30%
99-126A010-41HC Direct thermal Printing, 203 dpi, 5 ips, Ethernet/USB/RS-232/Parallel interfaces, HC Application Ships in 24-48 Hours $370.48
Retail $615
Save 39%

TSC TDP-247 Details

Best-in-class price-performance in a compact platform The new TDP-247 series direct thermal label printer offers best-in-class speed and high-resolution capabilities, along with a rugged, reliable design that has become the hallmark of the TSC printer family. The TDP-247 series features two high speed models - the TDP-247 and TDP-345 - both ideally suited for product marking, shipping, retail and other labeling applications. The TDP-247 can print four-inch-wide 203 dpi labels at speeds up to 7 inches per second. The TDP-345 offers high resolution 300 dpi printing at speeds up to 5 inches per second. Both models come standard with USB, parallel and serial connections. Other options include an internal Ethernet interface for easy network integration, label cutters, and a keyboard for printing labels in stand-alone or down-time situations. Because of their compact design, the TDP-247 series printers are ideally suited for a variety of applications, fitting easily into cramped work spaces that are often too small for larger printers. Both models feature a user-friendly clamshell design that allows users to simply open the cover and drop labels into a center-biased storage bay. Top-of-form sensing by gap, black mark, or notch is standard and completely adjustable from side to side. The TDP-247 series is equipped with a powerful 200 MHz processor, 4 MB of Flash memory, 8 MB SDRAM and an SD memory-expansion slot that increases Flash storage up to 4 GB. Both models support standard industry emulations right out of the box, including Eltron and Zebra printer languages.

Model Printing Method Resolution Max. Print Width Max. Print Length Max. Print Speed
TDP-247 Direct Thermal 203 dpi 4.25" 90" 7 ips
TDP-345 Direct Thermal 300 dpi 4.17" 40" 5 ips

  • Key Features
    • High quality double-walled clamshell design
    • 203 dpi and 300 dpi resolution models
    • Direct thermal print technology
    • Up to 177.8 mm (7") per second print speed
    • Drop-in media loading
    • Label capacity up to 214 mm (8.4") OD
    • SD Flash memory expansion up to 4 GB
    • Head-up sensor
    • USB 2.0, parallel and serial connectivity
    • Optional internal Ethernet interface
    • Optional cutter, standalone keyboard and peel-and-present assembly
  • Applications
    • Small office or home office mailings
    • Product marking
    • High resolution print and graphics applications
    • File-folder labeling
    • Retail point-of-sale
    • Shelf labeling
    • Healthcare specimen labeling
    • Inventory and asset management
    • Shipping
