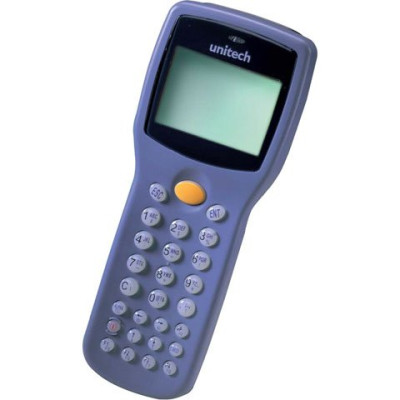

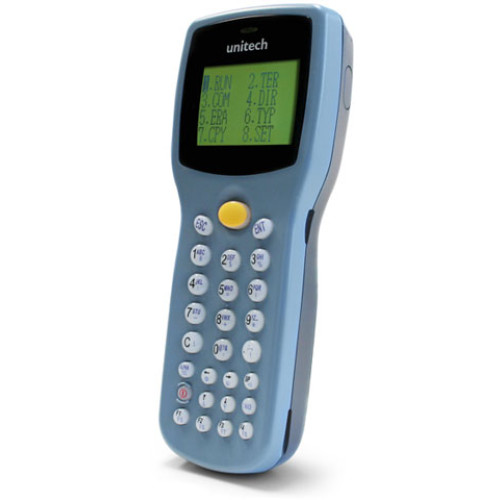

Unitech HT630 Hand Held Computer

The ruggedness of the Unitech HT630 boosts high productivity and guarantees the investment for Enterprise Users. The HT630 provides out-of-the-box functionality via five ready-made common applications. The flexible modular design including barcode reading and keypad input makes the HT630 a perfect multi-functional mobile computer for most data collection applications.

Style ?

Operating System ?

Scanner Type ?

Data Collection Type ?

RAM Memory

HT630 Options
Part # DescriptionAvailabilityPriceOrder
HT630-A000CADG HT 630, 4.5MB RAM, Wide Angle Laser, Batch, DOS, Battery, USB Cable, Power Adapter Ships Free Today $505.85
Retail $800
Save 36%
HT630-9000BA1G HT 630, Batch, 1D Laser Scanner, DOS, 2.5MB RAM, 27 key Alphanumeric Keypad. Includes Battery, Serial/RS-232 Cable, and Power Adapter. Ships Free Today $484.70
Retail $745
Save 34%
HT630-9000BADG HT 630, Mobile Computer - Batch - 1D Laser Scanner - DOS - 2.5MB RAM - 27 key Alphanumeric Keypad - Includes Battery - Includes USB Cable - Includes Power Adapter Ships Free Today $477.45
Retail $745
Save 35%
HT630-9000CA1G HT 630, 4.5MB RAM, Laser, Batch, DOS, Battery, RS-232 Cable, Power Adapter Ships Free Today $512.69
Retail $800
Save 35%
HT630-9000CADG HT 630, Batch, 1D Laser Scanner, DOS, 4.5MB RAM, 27 key Alphanumeric Keypad. Includes Battery, USB Cable, and Power Adapter. Ships Free Today $520.48
Retail $800
Save 34%
HT630LR-A000AADG HT 630, Batch data collection scanner, 512KB RAM, 1D Long Range Laser Scanner, 27 keys and rechargeable battery. Includes USB Cable, power supply and JobGen Plus Software. See Replacement Call for Details
HT630-VC0A1G HT 630, Batch Portable Terminal (1D LR CCD Scanner, DOS, 4.5MB RAM, 27 key, 3.7V BAT, AC Power, RS-232 and JOBGEN) See Replacement Call for Details
HT630-VB0A1G HT 630, Batch Portable Terminal (2.5RAM, 240V, 2 Bay Charger and LION Battery) See Replacement Call for Details
HT630-VA0A1G HT 630, Batch Portable Terminal (1D LR Scanner, DOS, 512 K, 3.7V BAT, AC Power, RS-232 and JOBGEN) See Replacement Call for Details
HT630-V000BADG HT 630, Batch Portable Terminal (DOS, 2.5MB, USB Cable, Long Range CCD Scanner, 3.7V Lithium Ion Battery and AC Power supply) See Replacement Call for Details
HT630-V000AADG HT 630, Batch Portable Terminal (DOS, 512KB, USB Cable, Long Range CCD Scanner, 3.7V Lithium Ion Batter and AC Power supply) See Replacement Call for Details
HT630-AC0A1G HT 630, 4.5MB RAM, Wide Angle Laser, Batch, DOS, Battery, RS-232 Cable, Power Adapter See Replacement Call for Details
HT630-AB0A1G HT 630, 2.5MB RAM, Wide Angle Laser, Batch, DOS, Battery, RS-232 Cable, Power Adapter See Replacement Call for Details
HT630-AA0A1G HT 630, 512KB RAM, Wide Angle Laser, Batch, DOS, Battery, RS-232 Cable, Power Adapter See Replacement Call for Details
HT630-A000BADG HT 630, 2.5MB RAM, Wide Angle Laser, Batch, DOS, Battery, USB Cable, Power Adapter See Replacement Call for Details
HT630-A000AADG HT 630, 512KB RAM, Wide Angle Laser, Batch, DOS, Battery, USB Cable, Power Adapter See Replacement Call for Details
HT630-0C0A1G HT 630, 4.5MB RAM, No Scanner, Batch, DOS, Battery, RS-232 Cable, Power Adapter See Replacement Call for Details
HT630-0A0A1G HT 630, 512KB RAM, No Scanner, Batch, DOS, Battery, RS-232 Cable, Power Adapter See Replacement Call for Details
HT630-0000CADG HT 630, 4.5MB RAM, No Scanner, Batch, DOS, Battery, USB Cable, Power Adapter See Replacement Call for Details
HT630-0000BADG HT 630, 2.5MB RAM, No Scanner, Batch, DOS, Battery, USB Cable, Power Adapter See Replacement Call for Details
HT630-0000AADG HT 630, 512KB RAM, No Scanner, Batch, DOS, Battery, USB Cable, Power Adapter See Replacement Call for Details
HT630-COMPARE-NO-HISTORY HT630, Batch Data Collection Bundle. Includes HT630 (Part# HT630-AB0A1G), cradle, 1-year service contract and Barcode Compare software. Ships Free Today Call for Details
HT630-INVENTORY-LITE HT630, Bundle includes HT630 unit (Part# HT630-AB0A1G), cradle, 1-year service contract and Inventory Lite software. Ships Free Today Call for Details
HT630LR-AC01AG HT 630, Batch data collection scanner, 4.5MB RAM, 1D Long Range Laser Scanner, 27 keys and rechargeable battery. Includes RS-232 Cable, power supply and JobGen Plus Software. Check Availability Call for Details
HT630LR-AB0A1G HT 630, Batch data collection scanner, 2.5MB RAM, 1D Long Range Laser Scanner, 27 keys and rechargeable battery. Includes RS-232 Cable, power supply and JobGen Plus Software. Check Availability Call for Details
HT630LR-AA0A1G HT 630, Batch data collection scanner, 512KB RAM, 1D Long Range Laser Scanner, 27 keys and rechargeable battery. Includes RS-232 Cable, power supply and JobGen Plus Software. Check Availability Call for Details
HT630LR-A000CADG HT 630, Batch data collection scanner, 4.5MB RAM, 1D Long Range Laser Scanner, 27 keys and rechargeable battery. Includes USB Cable, power supply and JobGen Plus Software. Check Availability Call for Details
HT630LR-A000BADG HT 630, Batch data collection scanner, 2.5MB RAM, 1D Long Range Laser Scanner, 27 keys and rechargeable battery. Includes USB Cable, power supply and JobGen Plus Software. Check Availability Call for Details
HT630LR-9000BADG HT 630, LONG RNGE LSR, 2.5MB RAM, BATCH -- NO LONGER AVAIL Check Availability Call for Details
HT630HD-AC0A1G HT 630, Batch data collection scanner, 4.5MB RAM, 1D High Density Laser Scanner, 27 keys and rechargeable battery. Includes RS-232 Cable, power supply and JobGen Plus Software. Check Availability Call for Details
HT630HD-AA0A1G HT 630, Batch data collection scanner, 512KB RAM, 1D High Density Laser Scanner, 27 keys and rechargeable battery. Includes RS-232 Cable, power supply and JobGen Plus Software. Check Availability Call for Details
HT630HD-A000AADG HT 630, Batch data collection scanner, 512KB RAM, 1D High Density Laser Scanner, 27 keys and rechargeable battery. Includes USB Cable, power supply and JobGen Plus Software. Check Availability Call for Details

Unitech HT630 Details

The HT630 mobile computer is designed to meet the demands of various applications, ranging from transportation and warehousing to mobile sales and retail. Rugged and durable, the HT630 can withstand multiple 4-foot drops to concrete and weighs less than 8 ounces. The HT630 provides out-of-the-box functionality with five ready-made common applications. Its ergonomic design includes a 27-key keypad, backlit LCD screen and powerful bar code scanner, making data collection fast and easy.

Standard Features
- Compact, durable design
- IP54-rated / 4-foot drop threshold
- Memory options: 2.5MB or 4.5MB RAM
- 27-key keypad
- Text-based OS
- 16-bit processor
- 10-hour battery life
- Includes power supply, battery and cables

System

Operating System Proprietary DOS system
CPU 16-bit 80188 Processor
Memory 256K Flash ROM
512K / 2.5MB / 4.5MB RAM
(Stores over 17,000 24-character records per 500K / 0.5MB)
Keypad 26 alphanumeric keys plus one scan trigger
Display 128 x 64 pixels

Power Source

Main Battery One rechargeable Lithium-ion battery pack
Backup Battery 120mAH/3.6V for SRAM memory backup
Li-ion recharging 2.5 hours in docking station
Operating Time Over 12 hours

Laser Scanner

Light Source Visible Laser Diode 650nm
Scan rate 35 (x5) scans /sec (bi-directional)
Scan angle 53 degrees x2 degrees
Minimum Print Contrast Minimum 20% absolute dark/light

Symbologies

Types UPC-A/E, EAN-8/13, Codabar, Code 39, Code 39 full ASCI, Code 93,Code 32, Interleaved & Std. 2 of 5, EAN 128, Code 11, Delta, ISBN, MSI/Plessey,Code 128, Toshiba, EAN 128

Communication

Interface RS232 communication port
Handshaking Xon/Xoff or CTS/RTS
Protocol None, or Multi-point for multi-drop installation
File Transfer Built-in Kermit server

Software Programming Tools

C Language MSC, Borland C, Turbo C
JobGen Plus A Windows-based program generator
Form Caching A built-in program generator
DLL Library Available for 16/32-bit C++, VB, VFP and Delphi

Enclosure And Environmental

IP Rating IP54 rated
Drop Test 4-foot drop threshold
Dimensions 6.6"H x 2.64"W x 1.38"D
Weight 8.6 ounces
Operation Temperature 32F to 122F
Storage Temperature -4F to 158F
Humidity 5% ~ 95% RH non-condensing

Accessories

Items RS232 & USB communication cables, power adapter, cradle

Regulatory

Regulatory BSMI, CCC, CE, FCC, VCCI, RoHS compliant

Warranty

Main Unit 1 year
Battery, Cables, Adapters 90 days
