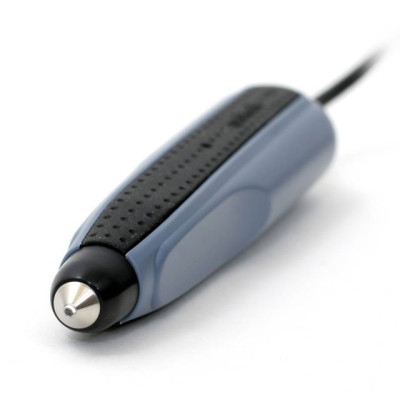

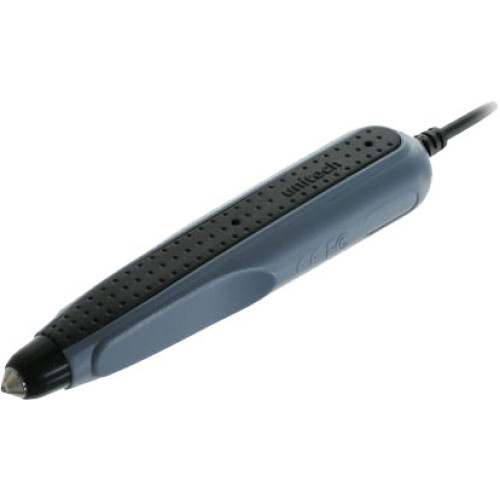

Unitech MS 100 Scanner

The Unitech MS 100 barcode wand is a cost effective solution for low-volume barcoding applications. The advanced optics and electronic design convert barcode labels into a high-quality digital signal. Its shape gives the MS 100 the comfort and handling of a conventional ink pen. Just drag the tip of the wand across the barcode in either direction and listen for the "good read" beep to let you know the data has been successfully captured.

Form Factor


Scan Pattern

Scanner Type

Included Cables ?


MS 100 Options
Part # DescriptionAvailabilityPriceOrder
MS100-3PS/2 MS 100, PS/2 Interface, ABS plastic wand, 6 ft. Cable, 2 Year Warranty. Ships Today $71.24
Retail $150
Save 52%
MS100-4JG MS 100, USB Interface, ABS plastic wand, Coiled 6 ft. Cable, 2 Year Warranty. Ships in 24-48 Hours $84.57
Retail $130
Save 34%
MS100-3PS2G This part is replaced by MS100-NKCB00-SG.
MS 100, Wand Scanner, Keyboard wedge (PS/2)
Ships Today $65.06
Retail $150
Save 56%
MS100-NKCB00-SG Wand Scanner, Keyboard wedge (PS/2) Ships in 24-48 Hours $65.06
Retail $100
Save 34%
MS100-NRCB00-SG Wand Scanner, RS-232 - (Power Adapter Sold Separately) Ships Today $65.06
Retail $100
Save 34%
MS100-NUCB00-SG MS 100, Wand Scanner, USB Ships Today $71.57
Retail $110
Save 34%
MS100-NTCB00-SG MS100, Wand Scanner, Wand Emulation (9-Pin Squeeze) Ships in 24-48 Hours $45.64
Retail $70
Save 34%

Unitech MS 100 Details

Optical & Performance

Light Source 650 ~ 660nm Red LED
Receiving Device Photo Sensor
Depth of field 0.04"
Resolution 5 mils
Print Contrast 0.6 minimum
Scan Rate 4 - 24 inches/sec
Reading Angle 45 to 90 degree
Ambient Light 5000 Lux/Max


Types Code 39 standard and full ASCII, EAN-13, UPC-A, EAN-8, UPC-E, standard 2 of 5, Code 128, Code 93, MSI, Code 11, Code 32, Delta Code, Label Code, Plessey Code, Codabar


Interface USB, Keyboard wedge, RS232, TTL (undecoded)


Dimension Length 5.5 Inches
Diameter 1.2 x .9 Inches
Weight 2.7 ounces
Cable length 71 Inches
Case Material ABS plastic

Power Source

Supply Voltage 5V DC 10%
Surge Power < 800mA
Working Current 60mA 10mA


Operating Temperature 32F to 122F
Storage Temperature -4F to 140F
Humidity 20% to 85% RH non-condensing
Drop test 5-foot drop threshold


Main Unit 2 years
Cables, Adapters 90 days
