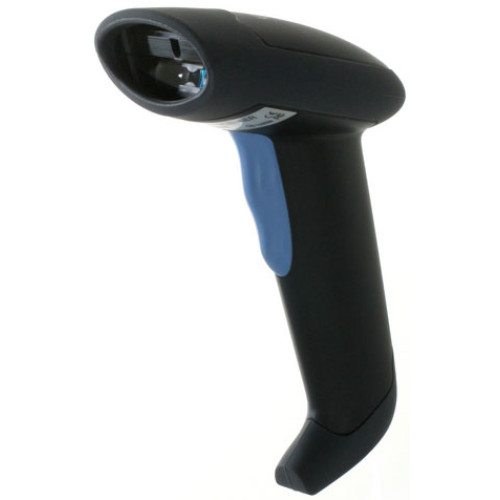

Unitech MS331 Barcode Scanner

Unitech MS331 Barcode Scanner

The MS331 from Unitech delivers easy-to-use, reliable performance at an affordable price for bar code reading applications in retail, office automation, post office, health care and light industry. Featuring a built-in long range CCD scan engine, the MS331 provides users with extra depth of field and a scanning width up to 18 cm. The reliable reading and decoding performance of the Unitech MS331 makes data collection tasks easier. A clear and adjustable audio beeper and visible good LED ensure positive feedback to the user. Configuration of the MS331 is fast and easy, reducing start-up time and cost. To further reduce costs, the MS331 has an interchangeable cable design, which allows users to change interfaces quickly and easily.
Discontinued - Need Assistance
See all options

OPTICAL

Light source 660 nm red LED
Sensor 3000 element linear array
Scan rate 50 scans/second
Scanning area 7.08" (180mm) maximum
Print contrast ratio 45% minimum absolute dark/light reflectance @ 660 nm

INTERFACE

Connector TTL (DB9 Squeeze & Release)
Keyboard Wedge (PS/2 or AT)
RS232 (DB9)
USB (Type A)
Operation modes Trigger, flash, or continuous

MECHANICAL

Dimensions Length (horizontal): 3.9 Inches (100mm)
Height (vertical): 7.1 Inches (180mm)
Width: 2.75 Inches (70mm)
Weight 5.8 ounces (164g)

ELECTRICAL

Operating voltage 5V ±5%
Operating current Standby: ≤80 mA (switch mode)
Operating: 175 mA (keyboard wedge)
Cable Interchangeable with TTL, PS/2, AT, RS232, or USB cables

DECODER

Symbologies China Postal Code
Codabar
Code 11
Code 32
Code 39 (full ASCII)
Code 39 (Standard)
Code 93
Code 128
Delta Code
EAN-8 with add-on code
EAN-13 with add-on code
EAN 128
Interleaved 2 of 5
ISBN / Bookland EAN
ISBT 128
Italian Pharmacy
Label Code IV
Label Code V
MSI / Plessey
Standard 2 of 5
Toshiba Code
UPC-A with add-on code
UPC-E with add-on code
Data editing Preamble, postamble, Code id, and data reformatting
Key emulation PC, Macintosh, and IBM terminal keyboard
Configuration Scanner Configuration Manager software
Scanned-in bar codes

ENVIRONMENTAL

Operating temperature 32ºF to 122ºF (0ºC to 50ºC)
Storage temperature -4ºF to 140ºF (-20ºC to 60ºC)
Humidity 20% to 85% RH non-condensing
Mechanical shock 5 feet (1.5 meters) drop onto concrete
ESD protection Contact: 8K
Air: 12K
Regulatory approvals CE
FCC
BSMI
Warranty 5 years
Extended Details
Refine Your Options
  1. Unitech MS331 Barcode Scanner
    Part #: MS331-1K1 | SKU: UNI17100

    CCD scanner with keyboard wedge interface cable and hands free stand.
  2. Unitech MS331 Barcode Scanner
    Part #: MS331-1U1 | SKU: UNI17101

    CCD scanner with USB interface cable and hands free stand.
  3. Unitech MS331 Barcode Scanner
    Part #: MS331-1K1G | SKU: UNI29632

    Long Range CCD scanner with Hands Free Stand, K/W Interface Cable, Dark Color
  4. Unitech MS331 Barcode Scanner
    Part #: MS331-1U1G | SKU: UNI29633

    Long Range CCD scanner with Hands Free Stand, USB Interface Cable, Dark Color
  5. Unitech MS331 Barcode Scanner
    Part #: MS331-1U | SKU: UNI30115

    Unitech MS331-1 Bar Code Reader - Wired - CCD
  6. Unitech MS331 Barcode Scanner
    Part #: MS331-1G | SKU: UNI62087

    MS331 CCD Scanner (Long Range Scanner and No Cable) - Color: Dark
  7. Unitech MS331 Barcode Scanner
    Part #: MS331KIT-ATEK | SKU: UNI62088

    MS331, -1G and 1550-201409ATEK Special Kit (Accelerated TEK)

7 Item(s)

Recommended Accessories for Model: Unitech MS331 Barcode Scanner

  • Unitech MS100 Power Device
    Part #: 101000-0150 | SKU: UNI4520

    Power Adapter, 110V
    MSRP: $33.00 Price: $27.12
    In Stock
  • Unitech HT630 Power Device
    Part #: 1010-602141G | SKU: UNI69456

    Power Supply, 100-240V, 9V DC, Compatible with Unitech HT630/MS860.
    MSRP: $21.00 Price: $20.64
  • Unitech MS180 Accessory
    Part #: 1550-201531G | SKU: UNI53850

    RS232 Cable, 54", DB9F, Coiled, Black - (Power Adapter Sold Separately)
    MSRP: $34.00 Price: $22.10
  • Unitech MS860 Accessory
    Part #: 1550-600708 | SKU: UNI15410

    AT/PS2 Cable, Straight, Color: Black
  • Unitech MS331 Accessory
    Part #: 1550-201596 | SKU: UNI17103

    Unitech Wand Emulation Interface Cable (Coiled) - RJ-50 Male - DB-9 Female - 4.49ft - Black
