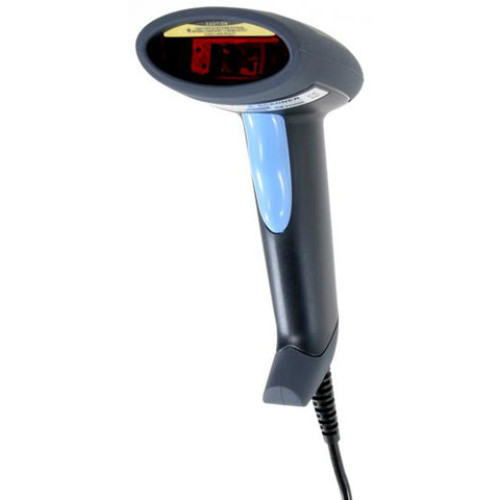

Photo of Unitech MS 830
Unitech logo

Unitech MS 830 Scanner

The Unitech MS 830 has been discontinued. No direct replacement is available.
Please contact us for a suitable substitute.

The Unitech MS 830 supports keyboard wedge interface for PS/2, AT, RS232, USB, & Wand. When used as a keyboard wedge, the operation of the keyboard remains unaffected. It uses a 3-in-1 interface which makes it easy to select and replace connection cables. Like other Unitech scanner products, MS 830 setup is fast and easy. A bar code menu provides extensive setup options. A simpler quick setup menu lets users configure common features. Once ready, the configuration can be cloned and applied to other units through the use of custom bar code labels. This is very useful when deploying large installations.
Questions?
1-888-875-7170
We respond to every email

Scanner Capability

Scanner Type

MS 830 Options
Part # DescriptionAvailabilityPriceOrder
MS830-HDUG MS 830, Scanner (Laser, High Density, High Visibility and USB)
Ships Free in 24-48 Hours
$344.58
Retail $696
Save 50%
MS830-HDKG MS830, PS/2 & AT INTERFACE, HIGH DENSITY HIGH VISIBILITY LASER SCANNER, 5'' DROP, 3 YEARS WARRANTY, DARK COLOR
Ships Free in 24-48 Hours
$327.29
Retail $687
Save 52%
MS830-WUG MS 830, Laser, USB See Replacement Call for Details
MS830-WU MS 830, USB kit, includes scanner and USB Cable. Color: Dark gray See Replacement Call for Details
MS830-WK MS 830, Scanner with Keyboard wedge Cable - Color: Dark gray See Replacement Call for Details
MS830-WO MS 830, Scanner with No Cable - see accessories for cable Check Availability Call for Details
MS830-WKG MS 830, LASER WITH Keyboard wedge CABLE 1550-210435 Check Availability Call for Details
MS830-LRUG MS 830, WO Scanner (SE1200WA, Long Range Laser and USB Cable) Check Availability Call for Details
MS830-D0G MS830 Scanner, MS830, HIGH DENSITY, with O CABLE Check Availability Call for Details

Unitech MS 830 Details

Optical
Light source 650 nm laser diode
Scan rate 30 to 40 scans/sec
Scan width 9 inches (230mm) - PCS=90%, 40mil code
Pitch +/-65° from normal
Skew +/-55° from normal
Print contrast 20% minimum
Reading distance density (in mils) Range (DOF PCS=90%)
5mil - Code 39 -
1.57" to 5.1" +/-.4" (40 to 130mm +/-10mm)
6mil - Code 39 -
1.38" to 5.9" +/-.4" (35 to 150mm +/-10mm)
15.6mil - JAN -
1.97" to 13.0" +/-1.18" (50 to 330mm +/-30mm)
40mil - Code 39 -
1.18" to 29.9" +/-1.18" (30 to 760mm +/-30mm)

Decoder

Symbologies China Postal Code
Codabar
Code 11
Code 32
Code 39 (full ASCII)
Code 39 (Standard)
Code 93
Code 128
Delta Code
EAN-8 with add-on code
EAN-13 with add-on code
EAN 128
Interleaved 2 of 5
ISBN / Bookland EAN
Italian Pharmacy
Label Code IV
Label Code V
MSI / Plessey
Standard 2 of 5
Toshiba Code
UPC-A with add-on code
UPC-E with add-on code
Operation Trigger, flash, multiscan, and one-press-one-scan mode
Data editing Prefix, suffix, Code ID, and reformatting data

Physical

Dimensions Height: 6.94 inches (176mm)
Width: 2.94 inches (75mm)
Length: 4.86 inches (124mm)
Weight 5.5 oz. (156g) without cable

Electrical

Current consumption Operation mode: 86mA
Sleep mode: 7.5mA
Interfaces supported: PC XT / AT / PS/2
Macintosh
RS232
Wand emulation

Environmental

Operating temperature 32°F to 122°F (0°C to 50°C)
Storage temperature -4°F to 140°F (-20°C to 50°C)
Humidity 5% to 95% RH non-condensing
ESD protection Contact: 8KV
Air: 12KV
Mechanical shock Withstands 5 foot (1.5 meter) bounce off concrete
Warranty 3 years
