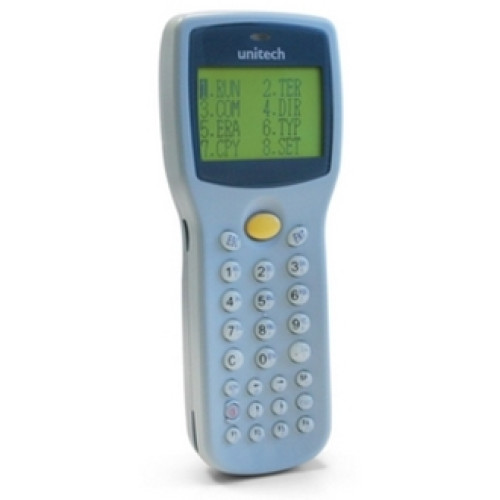

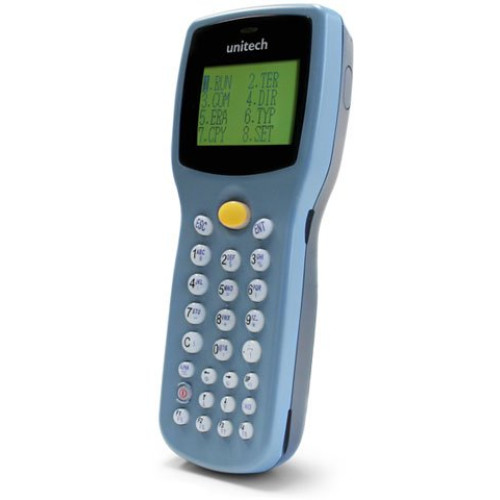

HT630-AC0A1G - Unitech HT630 Hand Held Computer

The ruggedness of the Unitech HT630 boosts high productivity and guarantees the investment for Enterprise Users. The HT630 provides out-of-the-box functionality via five ready-made common applications. The flexible modular design including barcode reading and keypad input makes the HT630 a perfect multi-functional mobile computer for most data collection applications.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
HT630-AC0A1G HT 630, 4.5MB RAM, Wide Angle Laser, Batch, DOS, Battery, RS-232 Cable, Power Adapter
Information:   |  Specifications  |  Unitech's HT630 page  |
Accessories:   |  Accessories/Options  |  Unitech HT630 service contract  |

HT630-AC0A1G Details

Technical Information

  • Connectivity Technology: Batch
  • Light Source: Laser
  • Drop Specification: 48" To Concrete
  • Barcode Symbology Supported:
    • China Postal Code
    • Codabar
    • Code 39
    • Code 39 Full ASCII
    • Code 93
    • Code 128
    • EAN-8
    • EAN-13
    • EAN-128
    • Interleaved 2 of 5
    • ITF
    • UPC-A
    • UPC-E

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Unitech
  • Manufacturer: Unitech Electronics Co., Ltd
  • Product Model: PT630D
  • Product Name: PT630D Portable Terminal

Physical Characteristics

  • Height: 6.6"
  • Width: 2.6"
  • Length: 1.4"
  • Weight (Approximate): 8.64 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • PT630D Portable Terminal
    • A/C Adapter
    • Battery
    • RS232 Communication Cable
    • JobGen Plus Software
    • PT630D Portable Terminal
    • A/C Adapter
    • Battery
    • RS232 Communication Cable
    • JobGen Plus Software
  • Certifications & Standards:
    • CE
    • FCC
  • Additional Information:
    • 16-bit 80188 compatible microprocessor
    • Interface: RS232 Via Proprietary Cable
    • Environmental sealing: IP54

Display & Graphics

  • Display Screen Type: LCD
  • Display Color: Monochrome
  • Screen Resolution: 128 x 64

Keyboard/Keypad

  • Keyboard Type: Alphanumeric
  • Number of Keys: 27

Memory

  • Flash Memory: 256 KB
  • Standard Memory: 4.50 MB

Battery Information

  • Battery Capacity: 900 mAh
  • Battery Chemistry: Nickel Metal Hydride (NiMH)

Software

  • Operating System: DOS

Warranty

  • Limited Warranty: 1 Year
Part # Description Availability Price Order
TSP-US-MC-3 BCI Service Contracts, True Support contract 3-year - Mobile Computers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $60 per year for 3 years, billed annually.
Ships Free in 24-48 Hours
$46.00
Retail $60
Save 23%

The Unitech HT630-AC0A1G is also known as UNI-PT630WA-3L00B or HT630AC0A1G .
