MS120-3PS2G - Unitech MS120 Bar code Scanner

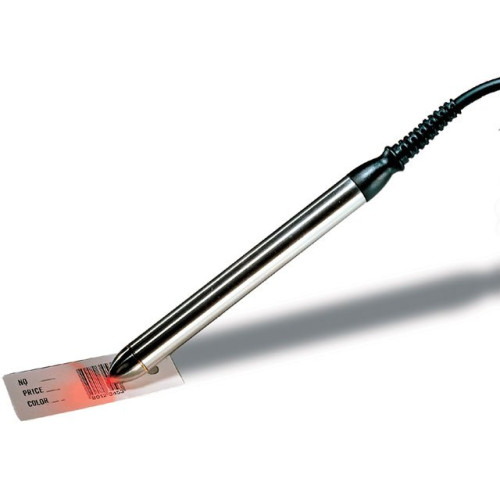

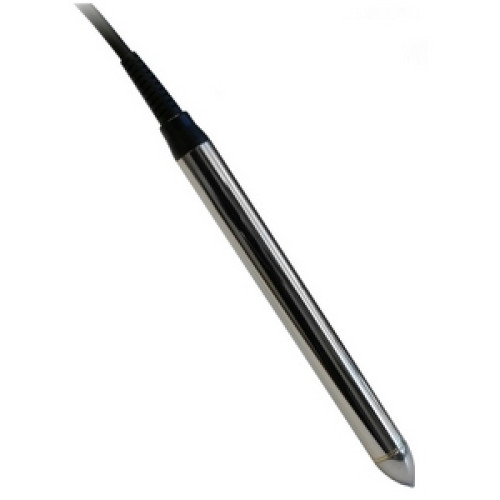

MS120 Pen Scanner (Stainless Steel Wand) The MS120 Series Barcode Wands are targeted toward low reading volume and cost effective solutions. The advanced optics and electronic design convert bar code labels into a high quality digital signal. Able to read color, faded and low contrast bar codes quickly and accurately, the MS120 is a proven solution. The polished sapphire tip reduces wear on labels and is also easily replaced if damaged. The MS120 is available with three different interfaces. The MS120 A is an undecoded model which interfaces via a 9-Pin squeeze release connector. The MS120 -2 has an RS232 interface with a built-in decoder. With a key-board wedge (AT or PS/2) interface the MS120 -3 also has a built-in decoder. It's shape gives the MS120 the comfort and handling of a normal ink pen. Just sweep the tip of the wand across the bar code in either direction and listen for the good read beep that lets you know the data has been successfully captured. It doesn't get any easier than that.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MS120-3PS2G MS120, Wand Scanner, Keyboard wedge (PS/2)
Information:   |  Specifications  |  Unitech's MS120 page  |
Accessories:   |  Accessories/Options  |

MS120-3PS2G Details

Technical Information

  • Connectivity Technology: Cable
  • Light Source: LED
  • Barcode Symbology Supported:
    • Code 39 Full ASCII
    • EAN- 13/ 9 with add- on code
    • UPC-A with Add-on Code
    • UPC-E with Add-on Code
    • Code 11
    • Code 93
    • Code 128
    • Codabar
    • MSI/PLESSEY
    • Interleaved 2 of 5
    • Standard 2 of 5
    • China Postal Code
    • Italian Pharmacy
    • Code 32
    • Delta Code
    • EAN-8 with Add-on Code
    • EAN-13 with Add-on Code
    • EAN-128
    • ISBN / Bookland EAN
    • ISBT 128
    • Label Code IV
    • Label Code V
    • Toshiba Code
    • Code 39 Full ASCII
    • EAN- 13/ 9 with add- on code
    • UPC-A with Add-on Code
    • UPC-E with Add-on Code
    • Code 11
    • Code 93
    • Code 128
    • Codabar
    • MSI/PLESSEY
    • Interleaved 2 of 5
    • Standard 2 of 5
    • China Postal Code
    • Italian Pharmacy
    • Code 32
    • Delta Code
    • EAN-8 with Add-on Code
    • EAN-13 with Add-on Code
    • EAN-128
    • ISBN / Bookland EAN
    • ISBT 128
    • Label Code IV
    • Label Code V
    • Toshiba Code
  • Maximum Scan Resolution: 5 mil
  • Depth of Field: 40 mil@

General Information

  • Product Type: Wand Barcode Scanner
  • Brand Name: Unitech
  • Manufacturer: Unitech Electronics Co., Ltd
  • Product Model: MS120
  • Product Name: MS120 Barcode Wand Reader

Physical Characteristics

  • Weight (Approximate): 2.12 oz

Interfaces/Ports

  • Host Interface: Keyboard Wedge

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MS120 Barcode Reader
    • Coiled PS/2 Cable
    • MS120 Barcode Reader
    • Coiled PS/2 Cable
  • Certifications & Standards: RoHS
  • Platform Supported: PC
  • Additional Information: Keyboard Wedge Cable

Warranty

  • Limited Warranty: 1 Year

Power Description

  • Input Voltage: 5 V DC

The Unitech MS120-3PS2G is also known as UNI-MS120/3PS2 or MS1203PS2G .
