MS120A - Unitech MS120 Bar code Scanner

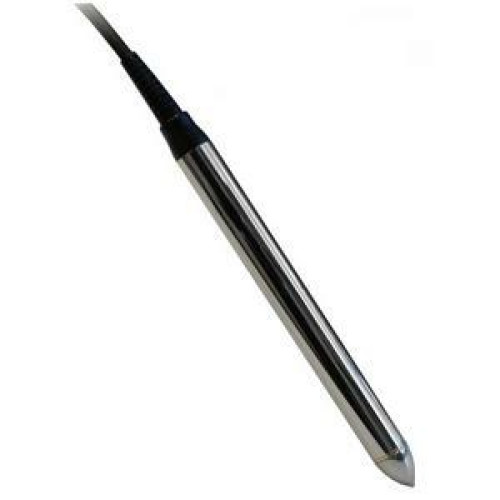

MS120 Pen Scanner (Stainless Steel Wand) The MS120 Series Barcode Wands are targeted toward low reading volume and cost effective solutions. The advanced optics and electronic design convert bar code labels into a high quality digital signal. Able to read color, faded and low contrast bar codes quickly and accurately, the MS120 is a proven solution. The polished sapphire tip reduces wear on labels and is also easily replaced if damaged. The MS120 is available with three different interfaces. The MS120 A is an undecoded model which interfaces via a 9-Pin squeeze release connector. The MS120 -2 has an RS232 interface with a built-in decoder. With a key-board wedge (AT or PS/2) interface the MS120 -3 also has a built-in decoder. It's shape gives the MS120 the comfort and handling of a normal ink pen. Just sweep the tip of the wand across the bar code in either direction and listen for the good read beep that lets you know the data has been successfully captured. It doesn't get any easier than that.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MS120A MS120, RS-232 kit, undecoded, with DB-9 squeeze and release connector
Information:   |  Specifications  |  Unitech's MS120 page  |
Accessories:   |  Accessories/Options  |

MS120A Details

Technical Information

  • Form Factor: Wand Scanner
  • Resolution: 5 mil(s)
  • Scan Rate: 78.7 ips
  • Interface Options: Undecoded
  • Interface Connectivity: Corded
  • Depth of Field:
    • 0.04"
    • 40 mil@
  • Connectivity Technology: Cable
  • Light Source: LED
  • Barcode Symbology Supported:
    • China Postal Code
    • Codabar
    • Code 11
    • Code 32
    • Code 39 (full ASCII)
    • Code 39 (Standard)
    • Code 93
    • Code 128
    • Delta Code
    • EAN-8 with add-on code
    • EAN-13 with add-on code
    • EAN 128
    • Interleaved 2 of 5
    • ISBN / Bookland EAN
    • ISBT 128
    • Italian Pharmacy
    • Label Code IV
    • Label Code V
    • MSI / Plessey
    • Standard 2 of 5
    • Toshiba Code
    • UPC-A with add-on code
    • UPC-E with add-on code
    • China Postal Code
    • Codabar
    • Code 11
    • Code 32
    • Code 39 (full ASCII)
    • Code 39 (Standard)
    • Code 93
    • Code 128
    • Delta Code
    • EAN-8 with add-on code
    • EAN-13 with add-on code
    • EAN 128
    • Interleaved 2 of 5
    • ISBN / Bookland EAN
    • ISBT 128
    • Italian Pharmacy
    • Label Code IV
    • Label Code V
    • MSI / Plessey
    • Standard 2 of 5
    • Toshiba Code
    • UPC-A with add-on code
    • UPC-E with add-on code
  • Maximum Scan Resolution: 5 mil

General Information

  • Manufacturer:
  • Product Name:
    • MS120A Barcode Scanner
    • MS120A Barcode Wand Reader
  • Product Type: Wand Barcode Scanner
  • Brand Name: Unitech
  • Product Model: MS120A

Physical Characteristics

  • Dimensions: 5.875" (149.22mm) x 0.525" (13.33mm)
  • Weight: 60 g - Cable not Included
  • Depth: 5.9"
  • Weight (Approximate): 2.12 oz

Interfaces/Ports

  • Host Interface: Serial

Other

  • Package Contents:
    • MS120A Barcode Scanner
    • Undecoded DB9 squeeze & release connector
    • MS120A Barcode Reader
    • Undecoded DB9 squeeze & release connector
    • MS120A Barcode Reader
    • Undecoded DB9 squeeze & release connector
  • Cables Included: 9-pin Squeeze
  • Additional Information:
    • Depth of field: 0.04" (0.1mm)
    • Reading angle: 0 to 45 Degree
    • Case material: Stainless steel
    • Rugged, lightweight design
    • Easy to use and configure
    • Low power consumption
    • Durable, replaceable sapphire tip

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 55°C (131°F) Operating
    • -20°C (-4°F) to 70°C (158°F) Storage
  • Humidity: 20 to 85%

Warranty

  • Manufacturer Warranty: 1 Year(s)
  • Limited Warranty: 1 Year

Power Description

  • Input Voltage: 5 V DC
