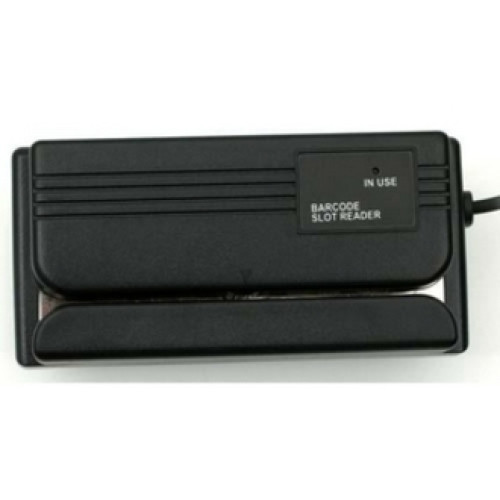

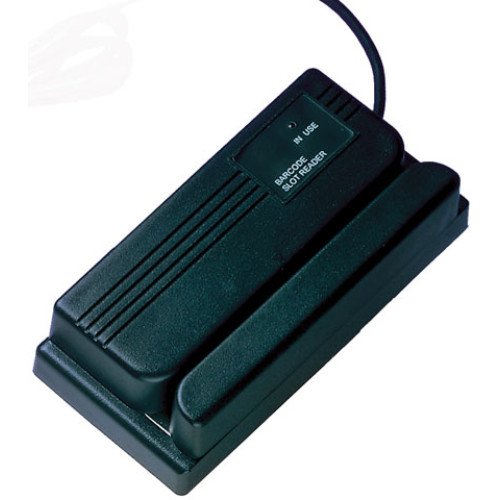

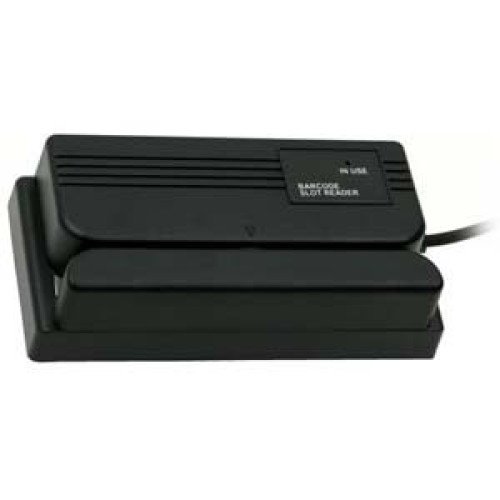

MS140A - Unitech MS140 Bar code Badge Card Reader

MS140 Barcode Slot Reader The MS140 family of bar code slot readers is a flexible, cost effective solution when you demand a reliable and rugged slot reader. With a resolution of up to 6 mils (0.15 mm), the MS140 is capable of reading any bar coded identification badge. It's sealed optical system is available in both visible light or infrared. The infrared units ensure accurate reading of either visible and laminated badges. Its water resistant base and rugged housing make the MS140 a popular choice in any environment. An optional mounting bracket is available to safely secure the unit in any direction.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MS140A MS140, Thermal transferL, with DB-9 Squeeze and Release connector, Undecoded - requires power supply, see accessories.
Information:   |  Specifications  |
Accessories:   |  Accessories/Options  |

MS140A Details

Technical Information

  • Form Factor: Barcode Slot Scanner
  • Resolution: 6 mil(s)
  • Symbologies Supported:
    • China Post
    • Codabar
    • Code 11
    • Code 32
    • Code 39 Full ASCII
    • Code 39 (Standard)
    • Code 93
    • Code 128
    • Delta Code
    • EAN-8 with Add-on Code
    • EAN-13 with Add-on Code
    • EAN-128
    • Interleaved 2 of 5
    • ISBN / Bookland EAN
    • ISBT 128
    • Italian Pharmacy
    • Label Code IV
    • Label Code V
    • MSI/PLESSEY
    • Standard 2 of 5
    • Toshiba Code
    • UPC-A with Add-on Code
    • UPC-E with Add-on Code
  • Scanner Type: LED
  • Scan Rate: 30 ips
  • Interface Options: Undecoded - DB9 Squeeze & Release
  • Interface Connectivity: Corded
  • Input Voltage: 5 V DC
  • Depth of Field: 2mm

General Information

  • Manufacturer: Unitech
  • Product Name: MS140 Barcode Scanner

Physical Characteristics

  • Dimensions: 1.3" (33.02mm) x 2.4" (60.96mm) x 4.9" (124.46mm)
  • Weight: 190 g - TTL with Cable

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 50°C (122°F)
    • -20°C (-4°F) to 60°C (140°F)
  • Humidity: 0 to 95% Non-condensing

Other

  • Package Contents:
    • MS140 Barcode Scanner
    • Cable
  • Cables Included: Undecoded

Warranty

  • Manufacturer Warranty: 1 Year(s)

The Unitech MS140A is also known as UNI-MS140A .
