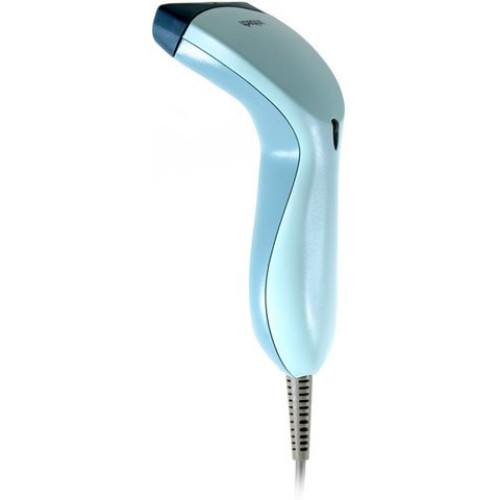

Photo of Unitech MS180-1KG
Watch Product Video
View larger image Unitech logo

Unitech MS 180

PS/2 Kit. CCD Contact Scanner, 3" scan width. Includes Keyboard wedge (PS/2/AT) cable. Color: Blue

This part is replaced by AS10-P.
Call for Details
Ships in 24-48 hours



Unitech MS 180 Scanner

The Unitech MS 180 features a flexible, multiple interface design that supports Keyboard wedge, RS-232, USB, wand emulation and sixteen popular terminals with an interchangeable cable. In addition, the IBM PC XT/AT Keyboard wedge interface supports 8 different character sets. MS 180's powerful built-in decoder reads and discriminates all major symbologies, thereby reducing processing time while increasing accuracy. The decoder also allows editing and modifying scanned data before sending it to the host device and hence reduces the labour costs.

Full specifications (PDF)

Manufacturer part number: MS180-1KG

Technical Information

  • Scan Rate: 45 scan/s
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: CCD
  • Barcode Symbology Supported:
    • China Postal Code
    • Codabar
    • Code 11
    • Code 32
    • Code 39 Full ASCII
    • Code 39 (Standard)
    • Code 93
    • Code 128
    • EAN-8 with Add-on Code
    • EAN-13 with Add-on Code
    • EAN-128
    • Interleaved 2 of 5
    • ISBN / Bookland EAN
    • ISBT 128
    • Italian Pharmacy
    • Label Code IV
    • Label Code V
    • MSI/PLESSEY
    • Standard 2 of 5
    • Toshiba Code
    • UPC-A with Add-on Code
    • UPC-E with Add-on Code
    • Delta Code
    • China Postal Code
    • Codabar
    • Code 11
    • Code 32
    • Code 39 Full ASCII
    • Code 39 (Standard)
    • Code 93
    • Code 128
    • EAN-8 with Add-on Code
    • EAN-13 with Add-on Code
    • EAN-128
    • Interleaved 2 of 5
    • ISBN / Bookland EAN
    • ISBT 128
    • Italian Pharmacy
    • Label Code IV
    • Label Code V
    • MSI/PLESSEY
    • Standard 2 of 5
    • Toshiba Code
    • UPC-A with Add-on Code
    • UPC-E with Add-on Code
    • Delta Code
  • Maximum Scan Resolution: 4 mil
  • Depth of Field: 1"@

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Unitech
  • Manufacturer: Unitech Electronics Co., Ltd
  • Product Model: MS180
  • Product Name: MS180 Barcode Reader

Physical Characteristics

  • Height: 2"
  • Width: 3.5"
  • Depth: 7.5"
  • Color: Beige
  • Weight (Approximate): 4.40 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MS180 Barcode Reader
    • Universal AT & PS/2 Interface Cable
    • MS180 Barcode Reader
    • Universal AT & PS/2 Interface Cable
  • Certifications & Standards:
    • CE
    • BSMI
    • FCC Class A
    • RoHS Compliant
  • Platform Supported: PC
  • Additional Information:
    • Supported Interfaces:
    • Keyboard WedgeSerialUSB

Warranty

  • Limited Warranty: 1 Year

Power Description

  • Input Voltage: 5 V DC
