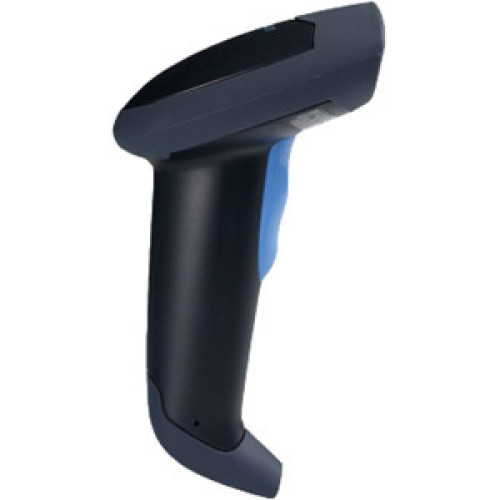

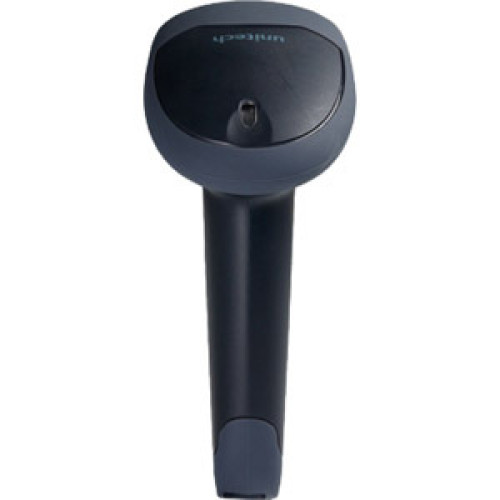

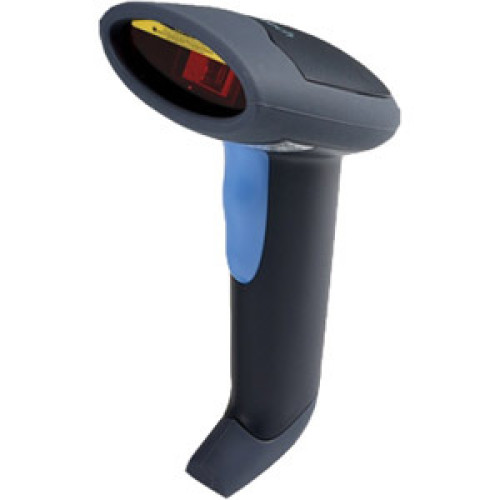

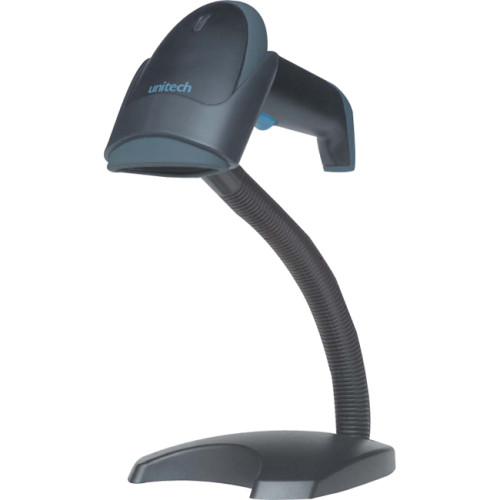

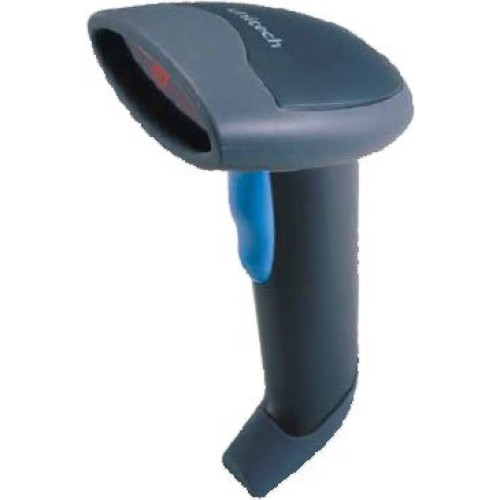

MS320-1RG - Unitech MS 320 Bar code Scanner

The MS320 is a scanner that matches a laser scanner in performance by incorporating aggressive long range CCD scanning technology. Besides supporting most common one dimensional barcodes the MS320 also supports a two dimensional barcode, PDF417. This barcode is selected for applications in areas such as the automotive industry for key applications as shipping, product evidence, quality conveyance, production broadcast, configuration management and material safety data sheets. Both contact and wide reading enables the worker to read labels up to 25 cm.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MS320-1RG MS320, Linear Imager, RS-232, Black - (Power Adapter Sold Separately) Ships Free Today $80.38
Retail $130
Save 38%
Information:   |  Specifications  |  Unitech's MS 320 page  |
Accessories:   |  Accessories/Options  |

MS320-1RG Details

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Linear
  • Scan Rate: 200 scan/s
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: CCD
  • Barcode Symbology Supported:
    • 1D:
    • Code 39
    • Code 39 Full ASCII
    • Codabar
    • Pharmacy Code(Italian)
    • Standard 2 of 5
    • Industrial 2 of 5
    • Interleave 2 of 5
    • Matrix 2 of 5
    • Code 93
    • Code 128/UCC EAN 128
    • MSI
    • Plessey
    • UPC/EAN codes incl.add-ons
    • ISBN
    • Telepen
    • RSS code
    • 2D:
    • 2D barcodes PDF 417 (multi-row symbology)
    • 1D:
    • Code 39
    • Code 39 Full ASCII
    • Codabar
    • Pharmacy Code(Italian)
    • Standard 2 of 5
    • Industrial 2 of 5
    • Interleave 2 of 5
    • Matrix 2 of 5
    • Code 93
    • Code 128/UCC EAN 128
    • MSI
    • Plessey
    • UPC/EAN codes incl.add-ons
    • ISBN
    • Telepen
    • RSS code
    • 2D:
    • 2D barcodes PDF 417 (multi-row symbology)
  • Maximum Scan Resolution: 4 mil
  • Depth of Field: 0 mil - 9.84"@20 mil - Code 39, PCS=90%

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Unitech
  • Manufacturer: Unitech Electronics Co., Ltd
  • Product Model: MS320
  • Product Name: MS320 Handheld Barcode Reader

Physical Characteristics

  • Height: 7.4"
  • Width: 4"
  • Depth: 3.1"
  • Weight (Approximate): 6.60 oz

Interfaces/Ports

  • Host Interface: Serial

Other

  • Platform Supported: PC

The Unitech MS320-1RG is also known as UNI-MS3201RG or MS3201RG .
