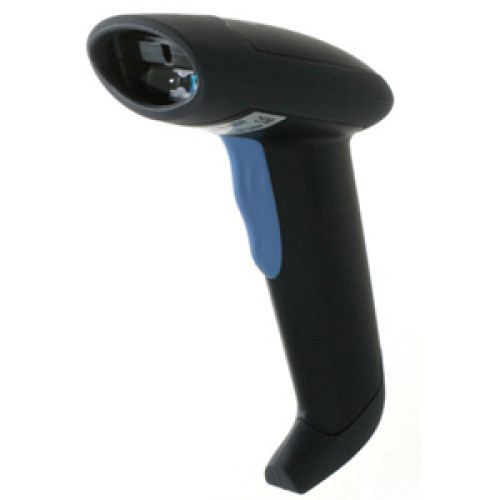

MS331-1U - Unitech MS 331 Bar code Scanner

The Unitech MS 331 is a durable, user-friendly bar code scanner. The MS 331 features high performance at a cost-effective price, giving users in health care, office, light industry and other areas an excellent productivity enhancement tool. The MS 331 features a long-range CCD scanner with an extended depth of field, plus a scan width of up to 18cm. The high reliability and first-pass scanning success rate of the Unitech MS 331 makes data collection tasks faster and more efficient. An audio beeper and visible good-scan LED show users their scans have been read properly. The MS 331 also features a variety of connection options, including USB, RS232 / serial and PS/2 keyboard wedge.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MS331-1U MS 331, USB Interface Cable without Stand, Dark
Information:   |  Specifications  |
Accessories:   |  Accessories/Options  |

MS331-1U Details

Technical Information

  • Form Factor:
    • Handheld Scanner
    • Hands Free Scanner
  • Symbologies Supported:
    • China Post
    • Codabar
    • Code 32
    • Code 11
    • Code 39 Full ASCII
    • Code 39 (Standard)
    • Code 93
    • Code 128
    • Delta Code
    • EAN-8 with Add-on Code
    • EAN-13 with Add-on Code
    • EAN-128
    • Interleaved 2 of 5
    • ISBN / Bookland EAN
    • Italian Pharmacy
    • Label Code IV
    • Label Code V
    • MSI/PLESSEY
    • Standard 2 of 5
    • Toshiba Code
    • UPC-A with Add-on Code
    • UPC-E with Add-on Code
    • ISBT 128
    • China Postal Code
  • Scanner Type: CCD
  • Scan Rate: 50 scans/sec
  • Interface Options:
    • TTL - DB9 Squeeze & Release
    • Keyboard Wedge - PS/2 or AT
    • RS-232 - DB9
    • USB - Type A
  • Interface Connectivity: Corded
  • Input Voltage: 5 V DC
  • Depth of Field:
    • 65 - 70mm@4mils - Code 39
    • 65 - 90mm@5mils - Code 39
    • 55 - 140mm@10mils - Code 39

General Information

  • Manufacturer: Unitech
  • Product Name: MS331-1 Barcode Scanner

Physical Characteristics

  • Dimensions: 7.1" (180.34mm) x 2.75" (69.85mm) x 3.9" (99.06mm)
  • Weight: 5.8 oz

Other

  • Package Contents:
    • MS331-1 Barcode Scanner
    • USB Interface Cable (1550-201423)
  • Cables Included: USB

Agency Approvals

  • Agency Approvals:
    • CE
    • FCC
    • BSMI

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 50°C (122°F) Operating
    • -20°C (-4°F) to 60°C (140°F) Storage
  • Humidity: 20 to 85% Non-condensing

Warranty

  • Manufacturer Warranty: 5 Year(s) Limited

The Unitech MS331-1U is also known as UNI-MS3311U or MS3311U .
