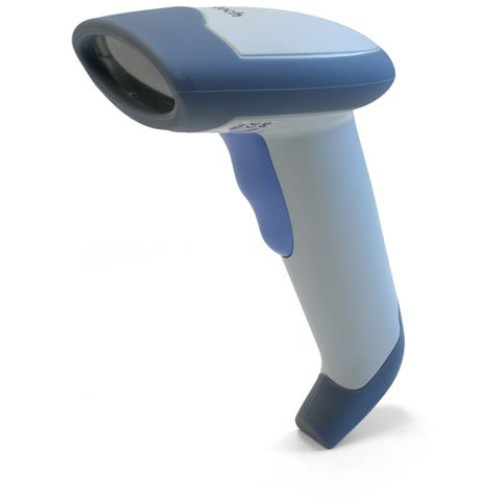

Photo of Unitech MS335-1UG Unitech logo

Unitech MS 335

Linear Imager, USB, Gray

Scanner
This part is replaced by MS320-1UG.
Call for Details



Unitech MS 335 Scanner

The MS 335 is a high performance CCD scanner that delivers reliability and durability at an affordable price. Designed to meet the needs of a number of business applications, including: retail, office automation, health care, postal distribution, and light industrial, the MS 335 provides the features needed to optimize productivity. Rugged design withstands 1.5m drops to concrete. Quick and easy set up via Windows-based software or barcodes. 5-year warranty for main unit, 90-day warranty for cables, and adapters.

Full specifications (PDF)

Manufacturer part number: MS335-1UG

Technical Information

  • Scan Rate: 230 scan/s
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: CCD
  • Barcode Symbology Supported:
    • UPC-A with Add-on Code
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • Industrial 2 of 5
    • Codabar
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 32
    • Code 128
    • Code 39 (Standard)
    • Code 39 Full ASCII
    • Interleaved 2 of 5
    • China Postal Code
    • MSI/PLESSEY
    • UK Plessey
    • Trioptic Code
    • MSI
    • UPC-A with Add-on Code
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • Industrial 2 of 5
    • Codabar
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 32
    • Code 128
    • Code 39 (Standard)
    • Code 39 Full ASCII
    • Interleaved 2 of 5
    • China Postal Code
    • MSI/PLESSEY
    • UK Plessey
    • Trioptic Code
    • MSI
  • Maximum Scan Resolution: 15.60 mil
  • Depth of Field:
    • 3.15" - 3.54"@4 mil
    • 2.76" - 4.72"@5 mil
    • 1.18" - 14.17"@15.60 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Unitech
  • Manufacturer: Unitech Electronics Co., Ltd
  • Product Model: MS335
  • Product Name: MS335 Barcode Reader

Physical Characteristics

  • Height: 7.1"
  • Width: 2.8"
  • Depth: 3.9"
  • Color: Gray
  • Weight (Approximate): 5.47 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MS 335 Barcode Reader
    • USB Cable
    • MS 335 Barcode Reader
    • USB Cable
  • Certifications & Standards:
    • CE
    • FCC
    • BSMI
    • VCCI
    • RoHS
  • Platform Supported:
    • PC
    • Mac
  • Additional Information:
    • Supported Interfaces:
    • Keyboard Wedge
    • Serial
    • USB

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 5 V DC
